59A50006 (59A50006150) - Cub Cadet Wide-Area Mower Discharge Restrictor Kit (2018) General Assembly Parts Diagram

Wide-Area Mower Discharge Restrictor Kit

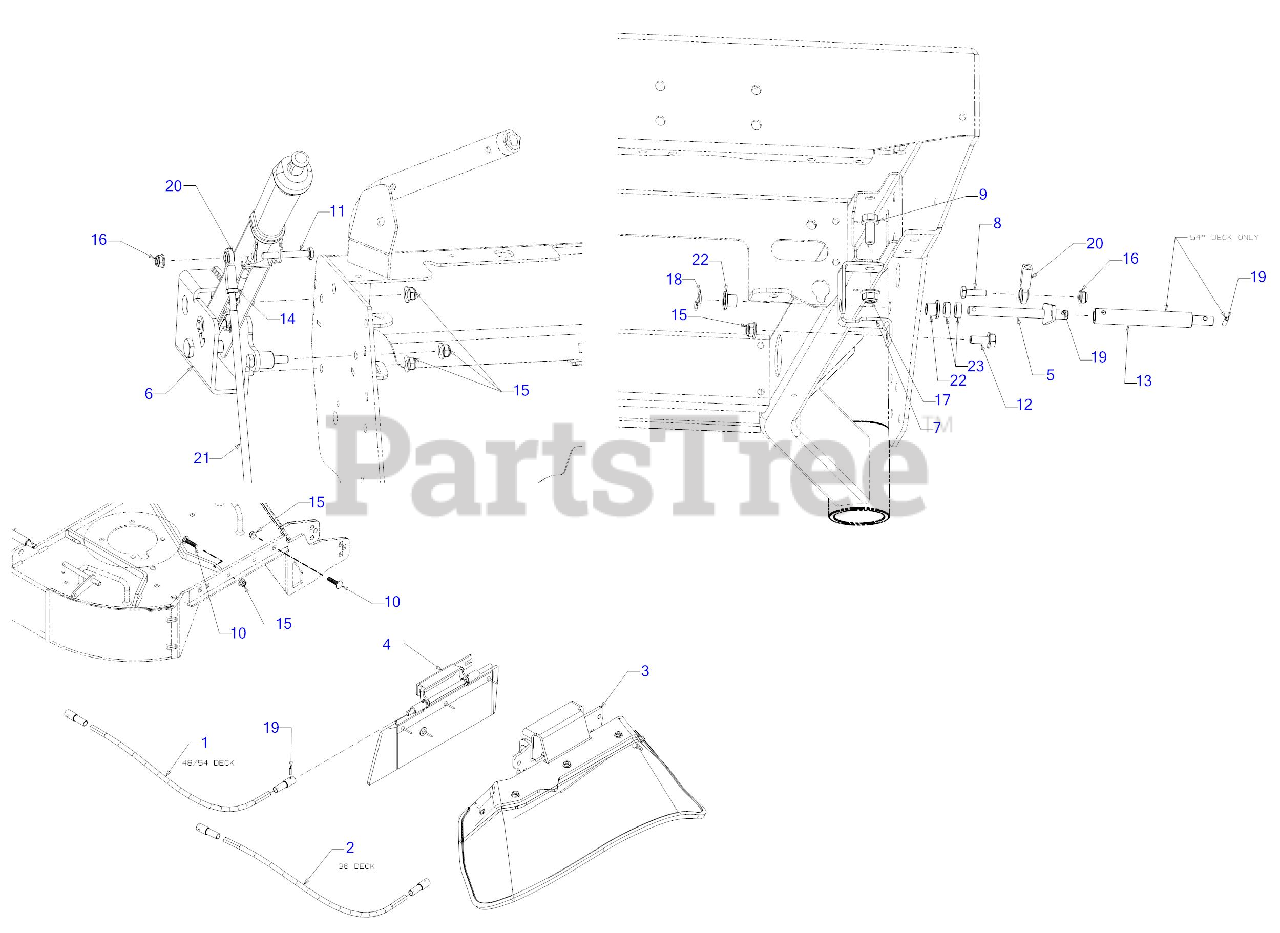

General Assembly Parts Diagram

  • Title

1

Cub Cadet 611-05206

CHUTE CONTROL CABLE ASSEMBLY

$200.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 611-05207

CHUTE CONTROL CABLE ASSEMBLY

$161.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 631-05500B

54/60" CHUTE DOOR KIT

$

$

Currently unavailable

3

Cub Cadet 703-10371D-4021

CHUTE BRACKET

$53.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-10868-4021

CHUTE SUPPORT PLATE

$21.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 736-04639

WASHER .355X1.25X.048THK

$3.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 712-3004A

HEX FLANGE NUT

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 936-0159

FLAT WASHER
(Superseded to 736-0159)

$

$

Not available

4

NOT SERVICEABLE

Note: (Order Components)

$

$

Not available

4

Cub Cadet 680E00614

DEFLECTING DOOR BRACKET

$80.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 728-04021

POP RIVET .187 DIA

$3.99

$

In Stock, only 1 left!

0

4

Cub Cadet 711-1364

BLADE RESTRICTOR FLAP 48/54/60

$8.49

$

In Stock, only 2 left!

0

4

Cub Cadet 941-0475

BUSHING .380 ID

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 715-04137

ROLL PIN 5/32" x .688"

$4.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703E10372

DECK DOOR SUPPORT PLATE

$12.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 680E00571

DISCHARGE DOOR SHAFT ASSEMBLY

$32.99

$

Usually ships in 3-6 days

0

6

NOT SERVICEABLE

Note: (Order Components)

$

$

Not available

6

Cub Cadet 726-0201

PUSH NUT

$6.99

$

In Stock, only 2 left!

0

6

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 747-06670

DOOR HANDLE LIFT ROD

$27.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 919-04065

YOKE 1/4-28

$41.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 732-3097

COMPRESSION SPRING

$14.99

$

In Stock, only 4 left!

0

6

Cub Cadet 912-0138

HEX NUT 1/4-28
(Superseded to 712-0138)

$

$

Not available

6

Cub Cadet 731-3158

LIFT HANDLE GRIP

$17.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 680-00439A

DOOR LATCH HANDLE

Variations

Cub Cadet 680-00439A-0637

BLACK DOOR LATCH HAND - POWDER BLACK (0637)

$80.99

$

Usually ships in 3-6 days

0

$80.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 711-06709

CLEVIS PIN 0.25 x 2.00

$27.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 711-0642A

LIFT HANDLE BUTTON

$7.99

$

In Stock, Qty 12

0

6

Cub Cadet 736-3090

FLAT WASHER

$6.99

$

In Stock, Qty 11

0

6

Cub Cadet 738-0213

SHOULDER SCREW .498 DIA x 1.450-THD

$7.99

$

In Stock, only 2 left!

0

6

Cub Cadet 750-06201

SPACER .34 x .75 x .63 LG

$4.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 680-00572-4021

HANDLE MOUNTING BRACKET ASSEMBLY

$

$

Currently unavailable

6

Cub Cadet 710-0805A

SCREW 5/16-18 x 1.5 LG

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

7

Cub Cadet 703-11760-4021

BELLCRANK MOUNTING BRACKET

$

$

Currently unavailable

8

Cub Cadet 710-0206

HEX SCREW 1/4-20 x .875 GR5

$4.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-04482

SCREW 3/8-16 x .875 GR5

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-04821

CARRIAGE BOLT 5/16-18 X 1.25

$5.49

$

In Stock, Qty 10

0

11

Cub Cadet 710-0501

SCREW 1/4-20 x 2 GR5

$7.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-06194

SCREW 5/16-18 x .750 GR8

$3.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 711-07101

ADAPTER SHAFT 4.25"

$87.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 712-0314

HEX JAM NUT 1/4-28

$3.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

19

Cub Cadet 715-04137

ROLL PIN 5/32" x .688"

$4.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 723-04077

END ROD (RH)

$22.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 747-07064

DISCHARGE DOOR ROD

$167.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 748-0208A

FLANGE BEARING

$4.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 750-0535

SPACER-.380 ID X.625 OD x .227
(Superseded to 950-0535)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 59A50006150

SIDE DISCHARGE BLOCKER

$

$

Not available
