59A30060 (59A30060150) - Cub Cadet PCS1900 12BU Triple Bagger (2020) General Assembly Parts Diagram

PCS1900 12BU Triple Bagger

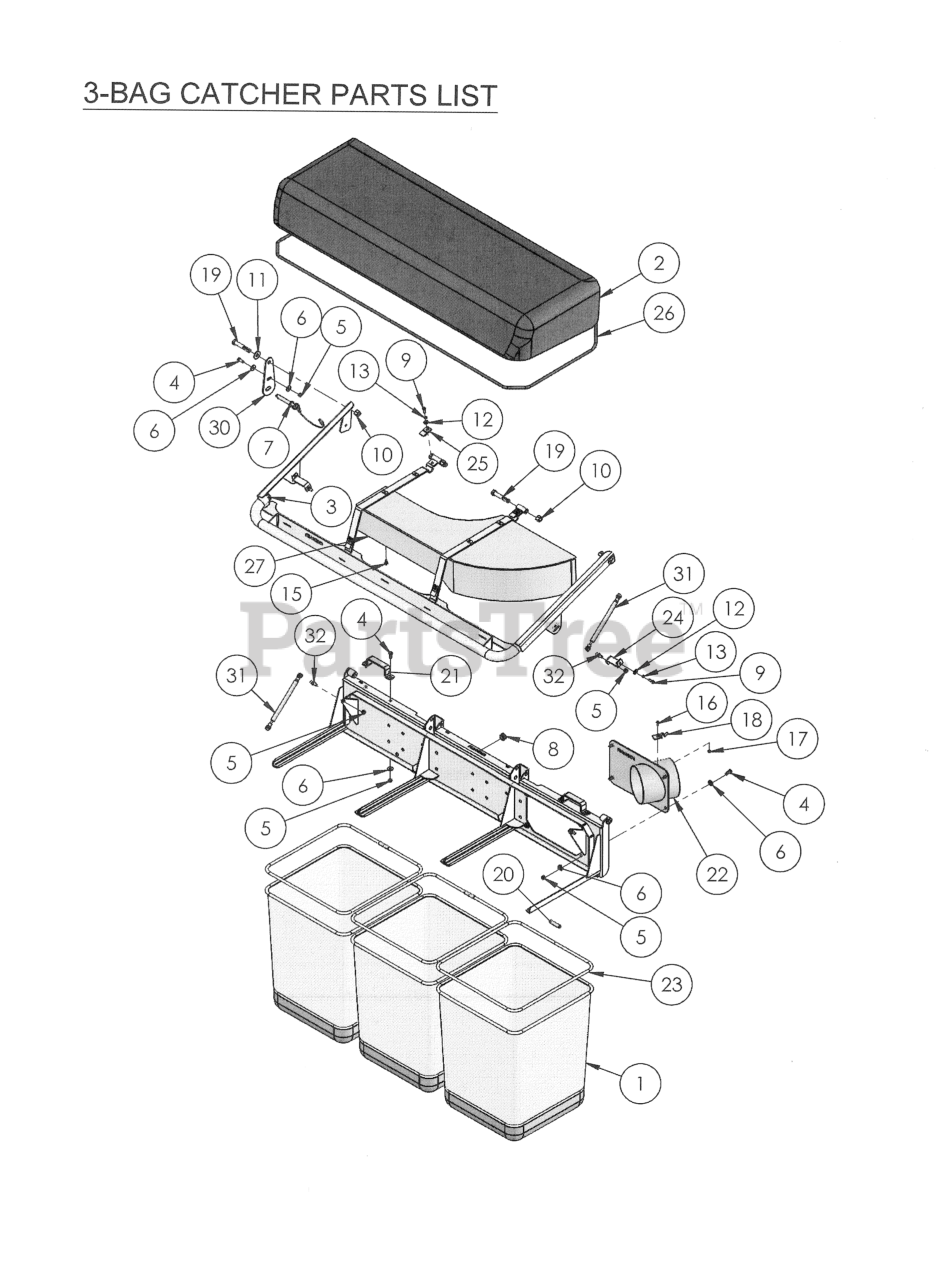

General Assembly Parts Diagram

  • Title

1

Cub Cadet 305 003 121

BAG-COMMERCIAL

$97.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 590 004 118

AIR DOME

$216.99

$

Usually ships in 3-6 days

0

3

Cub Cadet FAS150142

PLUG-1 1/2" TUBE B

$3.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 912-0429

HEX NUT INS
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet FAS150812

FLAT WASHER 5/16"

$6.49

$

Usually ships in 3-6 days

0

7

Cub Cadet FAS158818

DETENT PIN 1/2 X 2.5

$60.99

$

Usually ships in 3-6 days

0

8

Cub Cadet FAS150818

RUBBER BUMPER

$3.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-3015

SCREW 1/4-20X.75 GR5

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-3083

HEX LOCK NUT NYLON

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet FAS150825

FLAT WASHER 1/2"

$4.49

$

Usually ships in 3-6 days

0

12

Cub Cadet FAS150827

FLAT WASHER 1/4"

$3.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 936-0329

LOCK WASHER

$4.49

$

In Stock, Qty 9

0

14

Cub Cadet 710-3233

SCREW 1/2-13 x 2.50 GR5

$14.99

$

Usually ships in 3-6 days

0

15

Cub Cadet FAS150861

BOLT-1/2 X 1/4-20 GR5

$2.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 710-0473

SCREW #10-24 x .500

$4.49

$

In Stock, only 2 left!

0

17

Cub Cadet 712-0161

HEX NUT

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet FAS150875

SPRING CLIP

$7.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 710-0182A

SCREW-HEX 1/2-13 x 3.00

$7.99

$

In Stock, only 2 left!

0

20

Cub Cadet FAS150920P

CONNECTOR-FRAME PL

$8.49

$

Usually ships in 3-6 days

0

21

Cub Cadet FRA150101

HANDLE

$16.99

$

Usually ships in 3-6 days

0

22

TUBE ASSEMBLY-INLET 6"

Note: Not Used In This Application

$

$

Not available

23

Cub Cadet FRA150408

GRASSBAG FRAME CO

$46.99

$

Usually ships in 3-6 days

0

24

Cub Cadet FRA150423

BRACKET-GAS CYLINDER MOUNT

$24.99

$

Usually ships in 3-6 days

0

25

Cub Cadet FRA150451

BRACKET-SINGLE HOL

$11.99

$

Usually ships in 3-6 days

0

26

Cub Cadet FRA150452

FRAME-AIR DOME 3 B

$93.99

$

Usually ships in 3-6 days

0

27

Cub Cadet FRA150462

DEFLECTOR-3 BAG

$277.99

$

Usually ships in 3-6 days

0

28

Cub Cadet FRA152000

SUPPORT-3 BAG MTG

$762.99

$

Usually ships in 3-6 days

0

29

Cub Cadet FRA152010

SUPPORT-3 BAG CAP

$483.99

$

Usually ships in 3-6 days

0

30

Cub Cadet FRA153900

ADJUSTMENT LOCK PLATE

$36.99

$

Usually ships in 3-6 days

0

31

Cub Cadet OTH150031

CYLINDER-GAS

$102.99

$

Usually ships in 3-6 days

0

32

Cub Cadet OTH150032

BALL JOINT

$7.49

$

Usually ships in 3-6 days

0

Cub Cadet 59A30060150

TRIPLE BAGGER

$3154.99

$

Usually ships in 3-6 days

0
