59A30046 (59A30046150) - Cub Cadet Power Assist Twin Bagger (2016 & After) Base Drive Parts Diagram

Power Assist Twin Bagger

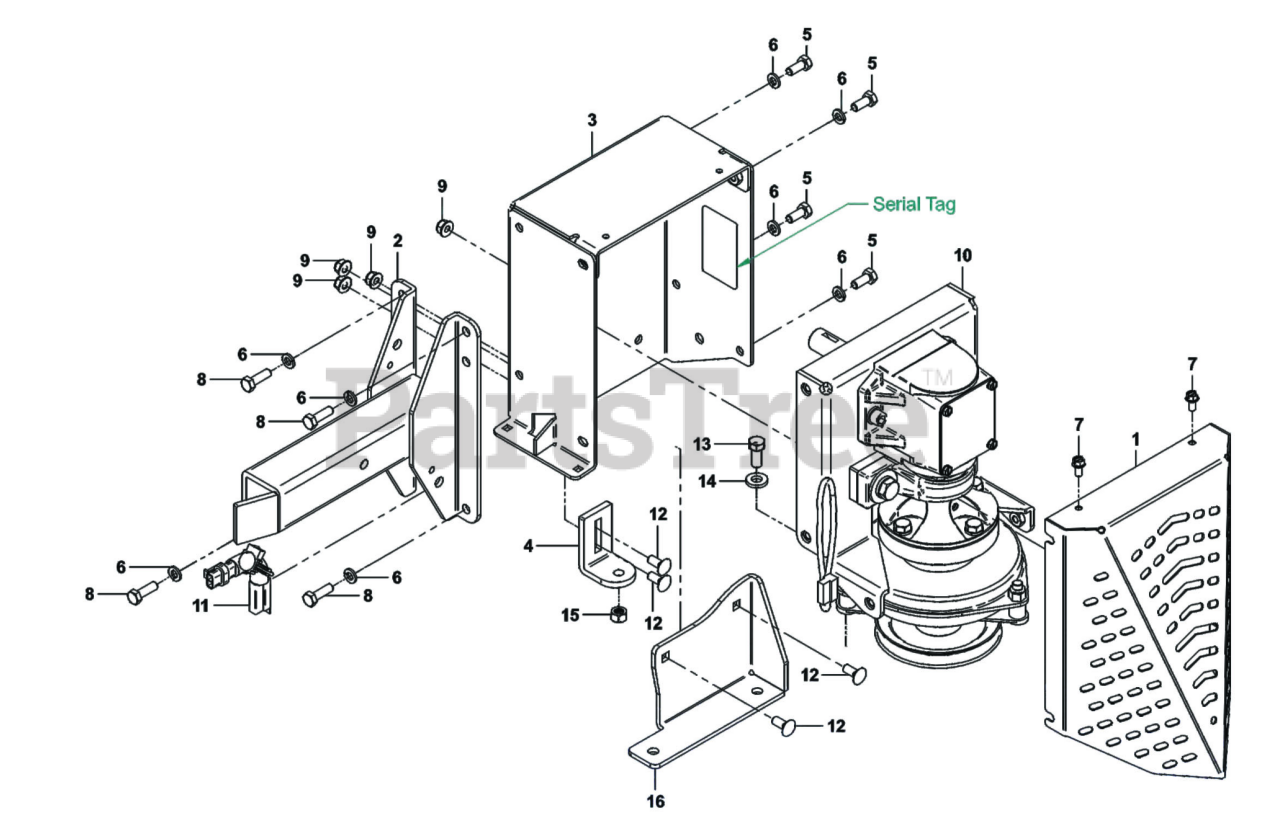

Base Drive Parts Diagram

  • Title

1

Cub Cadet PC-B0938-01

DRIVE GUARD

$195.99

$

Usually ships in 3-6 days

0

2

Cub Cadet PC-A2032

DRIVE ARM ASSEMBLY

$707.99

$

Usually ships in 3-6 days

0

3

Cub Cadet PC-A2035-02

HOUSING MOUNT ASSEMBLY

$477.99

$

Usually ships in 3-6 days

0

4

Cub Cadet PC-B0942-02

ANTI-ROTATION BRACKET

$94.99

$

Usually ships in 3-6 days

0

5

Cub Cadet PC-K1153

HEX SCREW HEAD 5/1

$1.99

$

Usually ships in 3-6 days

0

6

Cub Cadet PC-K0043

LOCK WASHER 5/16"

$2.99

$

Usually ships in 3-6 days

0

7

Cub Cadet PC-K0353

HEX SCREW HEAD 1/4

$1.99

$

In Stock, only 1 left!

0

8

Cub Cadet PC-K1154

HEX SCREW HEAD 5/1

$

$

Not available

9

Cub Cadet PC-K2516

NUT-FLANGE LOCK 5/

$0.99

$

Usually ships in 3-6 days

0

10

Cub Cadet PC-A2060-01

MOUNTED DRIVE ASSEMBLY

$4220.99

$

Usually ships in 3-6 days

0

11

Cub Cadet PC-P0271

JUMPER HARNESS (W/DIODE)

$30.99

$

Usually ships in 3-6 days

0

12

Cub Cadet PC-K1142

SCREW 5/16"-18 X .75" GR8

$3.49

$

Usually ships in 3-6 days

0

13

Cub Cadet PC-K0343

SCREW 3/8"-16 x .875" (GR8)

$4.49

$

Usually ships in 3-6 days

0

14

Cub Cadet PC-K1477

FLAT WASHER

$4.99

$

Usually ships in 3-6 days

0

15

Cub Cadet PC-K1476

REVERSE GD "C" LOCK NUT (3/8-16)

$13.99

$

Usually ships in 3-6 days

0

16

Cub Cadet PC-B1100

PLATE-IDLER ASSY MOUNT

$79.99

$

Usually ships in 3-6 days

0
