59A30043 (59A30043150) - Cub Cadet Lawn Striping Kit General Assembly Parts Diagram

Lawn Striping Kit

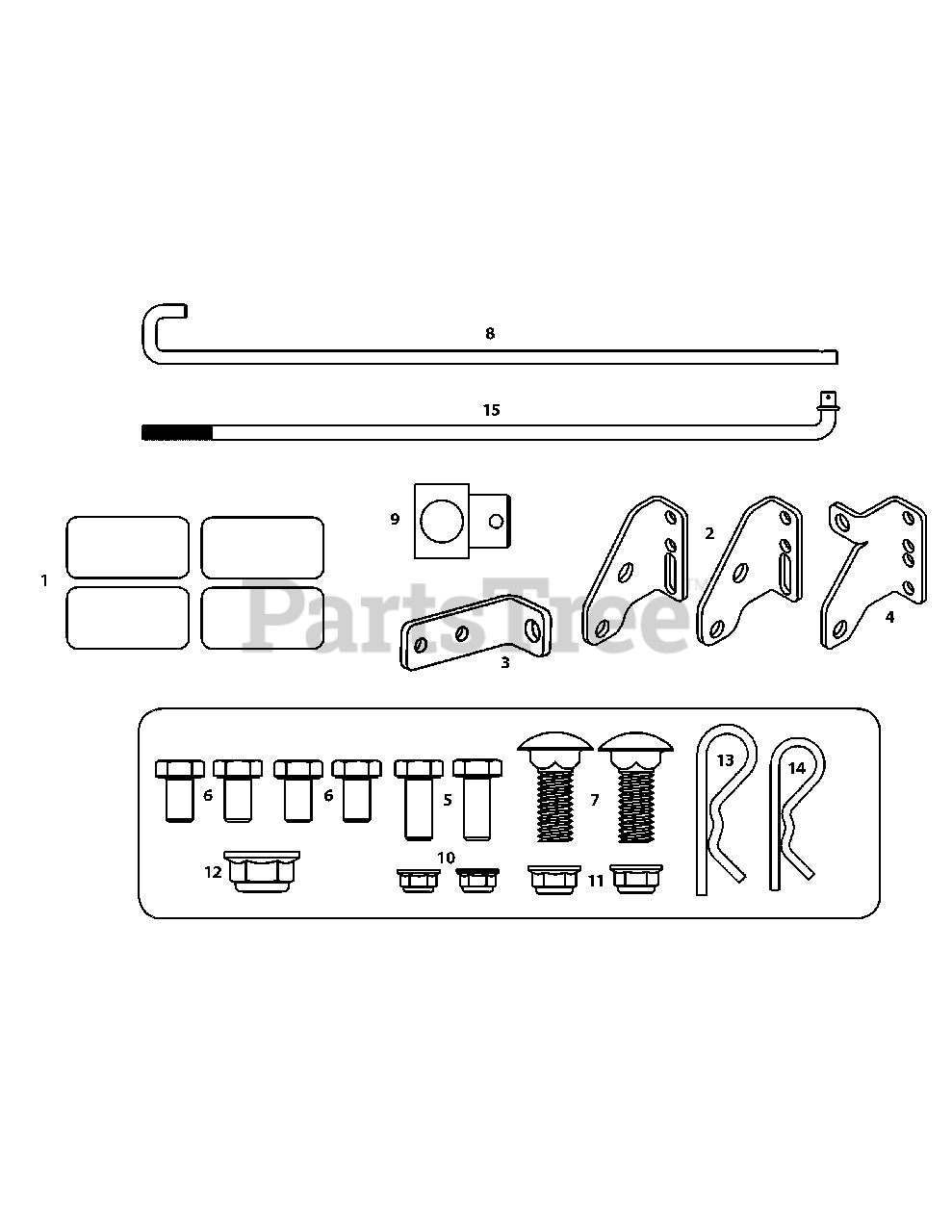

General Assembly Parts Diagram

  • Title

1

Cub Cadet 631-05115

Anti-Scalp Roller Assembly

$26.99

$

In Stock, only 3 left!

0

2

Cub Cadet 703-09137-0637

Rear Roller Mount Bracket
(Superseded to 703-09137A-0637)

$23.99

$

In Stock, Qty 8

0

3

Cub Cadet 703-09380-0637

Deck Stabilizer Mount Bracket

$23.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-09579-0637

RH Rear Roller Mount Bracket

$33.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0623

Hex Washer Screw, 3/8-16 x .750

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0773

Hex Washer Screw, 3/8-16 x .500

$7.49

$

In Stock, only 3 left!

0

7

Cub Cadet 710-3168

Carriage Bolt, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 711-05664

Roller Pin, 1/2 x 25.75

$22.99

$

In Stock, only 1 left!

0

9

Cub Cadet 911-0770

Adjustable Ferule

$

$

Not available

10

Cub Cadet 712-0266A

Jam Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-04150

Flange Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 914-0145

Click Pin, .092 x 1.64
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 914-04023

Cotter Pin, .080 x 1.5625
(Superseded to 714-04023)

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 747-06273

Deck Support Rod, 1/2

$58.99

$

Usually ships in 3-6 days

0
