59A30036 (59A30036150) - Cub Cadet 72" Snow Blade att General Assembly Parts Diagram

72" Snow Blade

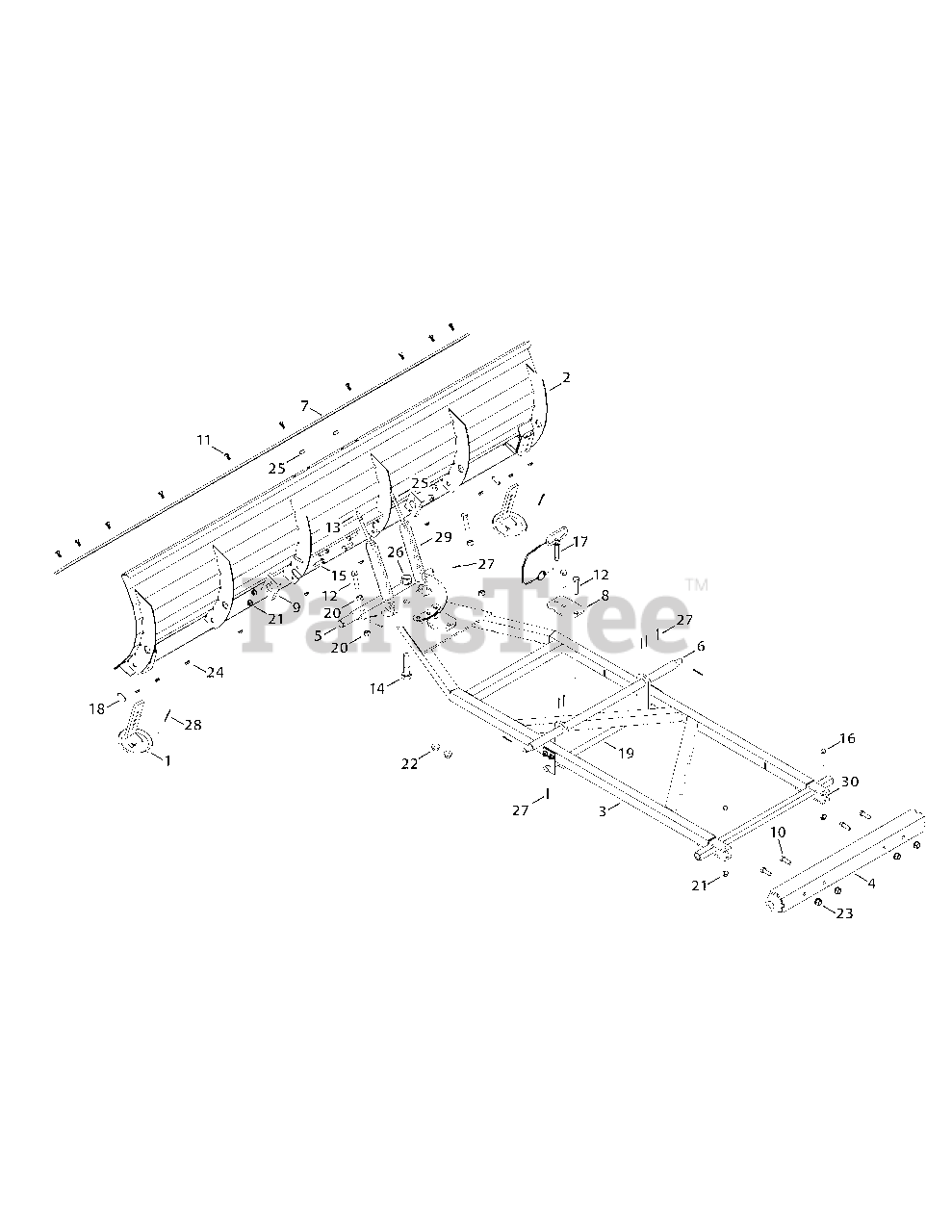

General Assembly Parts Diagram

  • Title

1

Cub Cadet 603-0810A-0637

Skid Shoe

$79.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 680-00026-0637

Blade Assembly

$812.99

$

Usually ships in 3-6 days

0

3

680-00238

Frame Assembly

$

$

Not available

4

680-00239

Blade Pivot Frame

$

$

Not available

5

Cub Cadet 680-00243-0637

Blade Pivot

$256.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 680-00244-0637

Lift Rod Assembly

$110.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-05971A-0637

Shave Plate

$173.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-06856-0637

Top Fixed Bracket

$23.99

$

Usually ships in 3-6 days

0

9

703-08833

Pivot Rod Plate

$

$

Not available

10

710-04070

Hex Screw, 7/16-14 x 1.25

$

$

Not available

11

Cub Cadet 710-0451

Carriage Bolt, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0489

Hex Screw, 1/2-13 x 2.00

$7.49

$

Usually ships in 3-6 days

0

13

710-05456

Hex Screw, 3/8-16 x 4.50

$

$

Not available

14

710-05458

Hex Screw, 3/4-16 x 3.00

$

$

Not available

15

Cub Cadet 710-3005

Hex Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 11

0

16

Cub Cadet 710-3096

Hex Screw, 3/8-16 x 2.00

$7.99

$

In Stock, only 1 left!

0

17

711-05731

Sulky Pin, .500

$

$

Not available

18

Cub Cadet 711-05735

Clevis Pin, 3/8 x 1.123

$12.99

$

Usually ships in 3-6 days

0

19

711-05745

Lift Bar

$

$

Not available

20

Cub Cadet 912-0206

Hex Nut, 1/2-13
(Superseded to 712-0206)

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 712-04150

Flange Lock Nut, 1/2-13

$4.49

$

Usually ships in 3-6 days

0

23

712-04337

Flange Lock Nut, 7/16-14

$

$

Not available

24

Cub Cadet 712-04339

Flange Counter Lock Nut, 5/16-18

$3.99

$

In Stock, only 1 left!

0

25

Cub Cadet 912-3017

Hex Nut, 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 712-3078

Flange Nut, 3/4-16

$9.99

$

In Stock, Qty 20+

0

27

Cub Cadet 714-0162

Cotter Pin, 5/32 x 1.25

$4.99

$

In Stock, Qty 20+

0

28

Cub Cadet 714-04043

Cotter Pin

$4.99

$

In Stock, Qty 20+

0

29

Cub Cadet 732-04959

Blade Adjust Spring

$53.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 748-04075

Spacer, .385 x .635 x 1.000

$3.49

$

Usually ships in 3-6 days

0
