59A30035 (59A30035150) - Cub Cadet Electric Lift Kit att General Assembly Parts Diagram

Electric Lift Kit

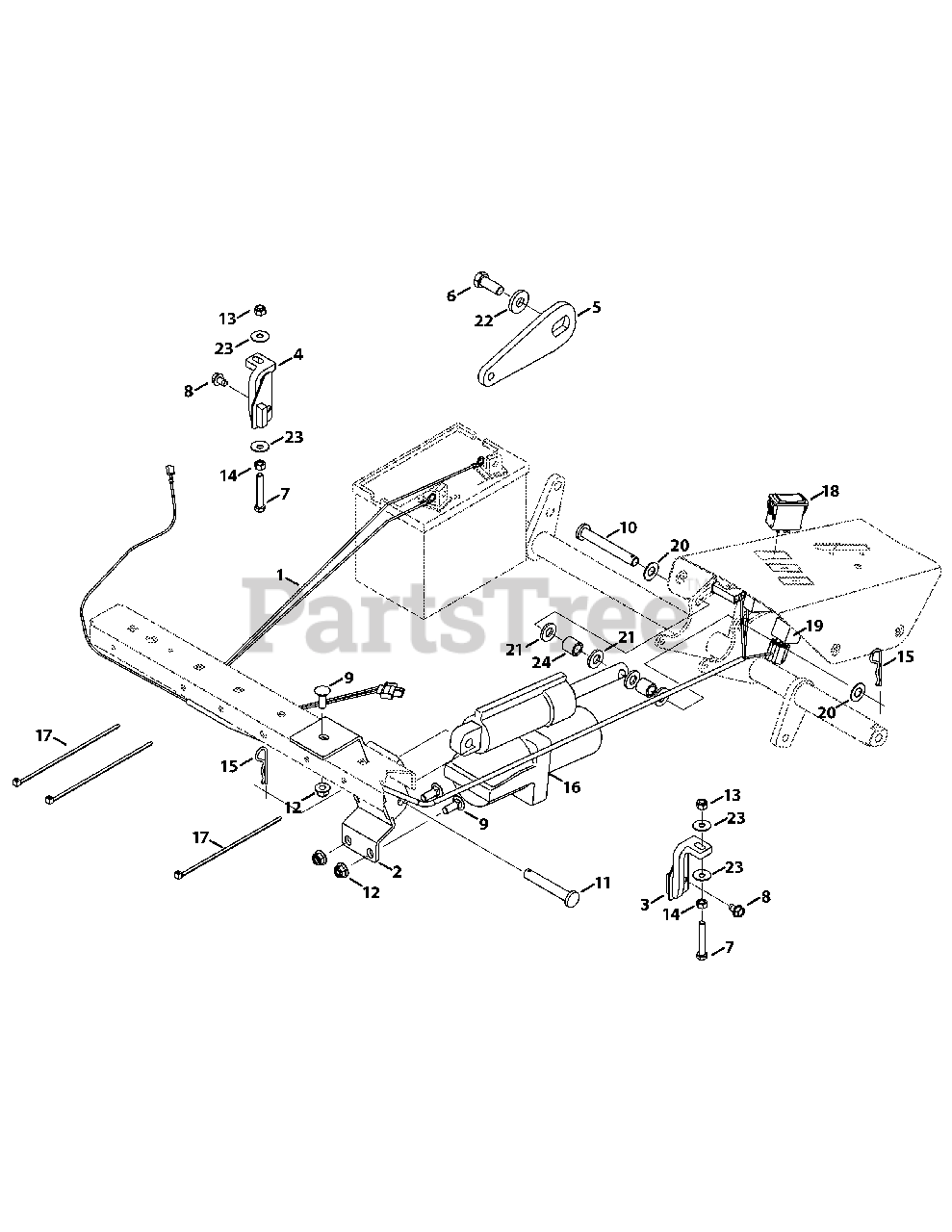

General Assembly Parts Diagram

  • Title
1

Cub Cadet 929-04187

Deck Lift Harness

$69.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 680-00164-0637

Deck Lift Cylinder Mount

$69.99

$

Usually ships in 3-6 days

0

3

680-00247

RH Lift Lock Mount

$

$

Not available

4

680-00248

LH Lift Lock Mount

$

$

Not available

5

Cub Cadet 703-08070

Deck Lift Bell Crank

Variations

Cub Cadet 703-08070-0637

BLCRK-DECK LIFT - POWDER BLACK (0637)

$21.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-04186

Hex Screw, 1/2- x 1.25

$7.49

$

In Stock, only 1 left!

0

7

Cub Cadet 710-05131

Hex Screw, 5/16-24 x 2.00

$3.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0607

Hex Wshr. Screw, 5/16-18 x .500

$6.99

$

In Stock, Qty 11

0

9

Cub Cadet 710-3168

Carriage Bolt, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 711-1206

Clevis Pin, .500 x 3.75

$13.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 711-1400

Clevis Pin, .500 x 3.2

$40.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 912-0411

Hex Lock Nut, 5/16-24
(Superseded to 712-0411)

$

$

Not available

14

Cub Cadet 912-3057

Hex Nut, 5/16-24

$6.99

$

In Stock, only 3 left!

0

15

Cub Cadet 714-04003

Cotter Pin, .125 x 2.5

$8.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 718-04783

Lift Cylinder

$921.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 925-04761

Deck Lift Switch

$76.99

$

In Stock, only 1 left!

0

19

Cub Cadet 925-1718

SPDT Relay

$73.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 936-0272

Flat Washer, .510 x 1.000 x .060
(Superseded to 736-0272)

$4.99

$

In Stock, Qty 20+

0

21

Cub Cadet 936-0326

Flt. Washer, .510 x 1.000 x .125
(Superseded to 736-0326)

$4.49

$

In Stock, only 4 left!

0

22

Cub Cadet 736-04019

Flt. Washer, .531 x 1.25 x .181

$7.99

$

In Stock, only 1 left!

0

23

Cub Cadet 936-0425

Washer, .325 x .930 x .045
(Superseded to 736-0425)

$

$

Not available

24

Cub Cadet 750-04375

Spacer, .501 x .750 x .775

$4.99

$

Usually ships in 3-6 days

0
