59A30030 (59A30030150) - Cub Cadet 60" Mulch Kit General Assembly Parts Diagram

60" Mulch Kit

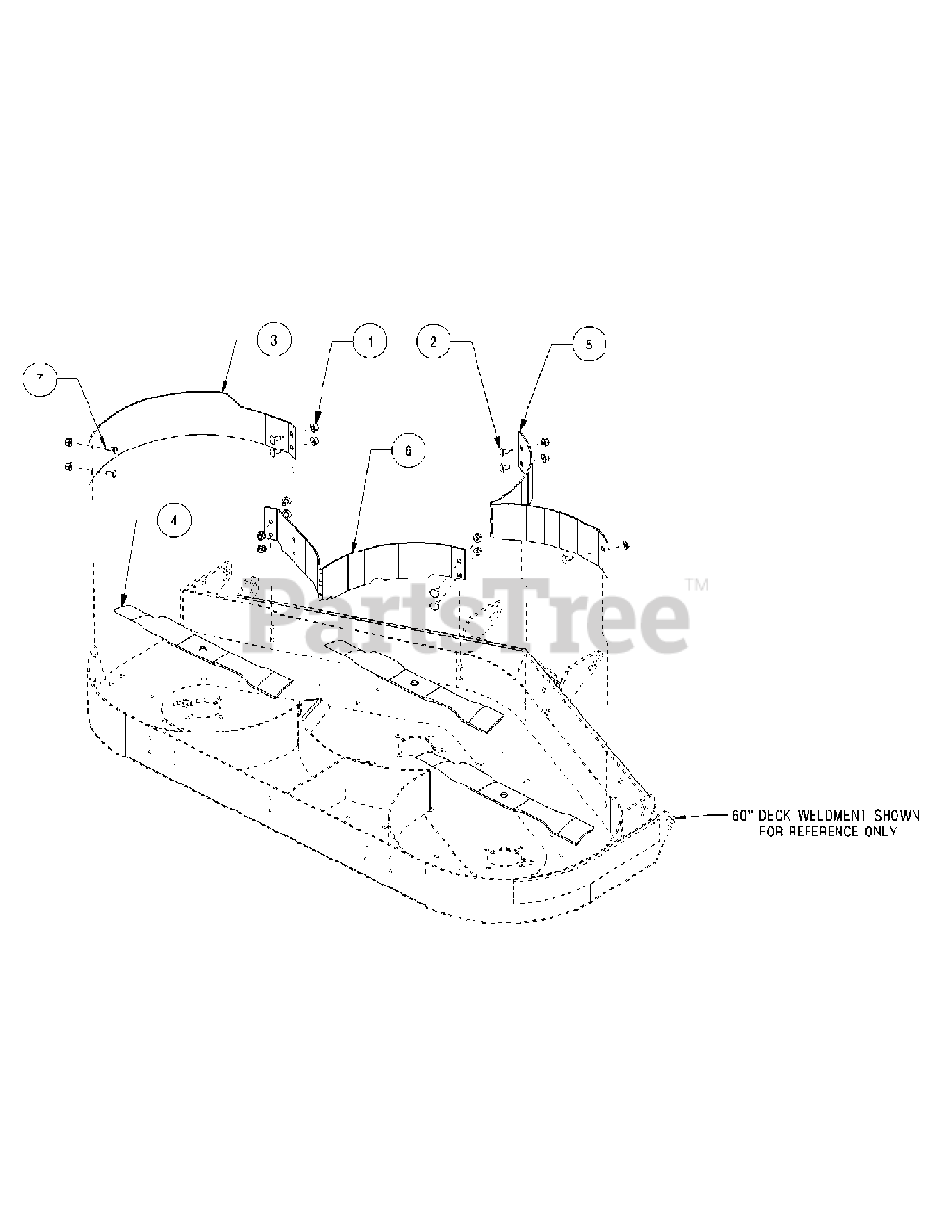

General Assembly Parts Diagram

  • Title
1

Cub Cadet 00022560

Hex Nut, 3/8-16 Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 710-3178

CARRIAGE BOLT 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

3

Baffle:Mulch:Fab 60 RH

Note: Furnish 59A30030150

$

$

Not available

4

Cub Cadet 01005381

Blade:21.0:Mulch:0.756 ID
(Superseded to 01005381P-X)

$43.99

$

In Stock, only 3 left!

0

5

Baffle:Mulch: Fab 60 LH

Note: Furnish 59A30030150

$

$

Not available

6

Baffle:Mulch:Fab 60 Center

Note: Furnish 59A30030150

$

$

Not available

7

Cub Cadet 710-3168

Carriage Bolt, 3/8-16 x 1.00 Long

$3.99

$

In Stock, Qty 20+

0
