59A30025 (59A30025150) - Cub Cadet Striper Kit att General Assembly Parts Diagram

Striper Kit

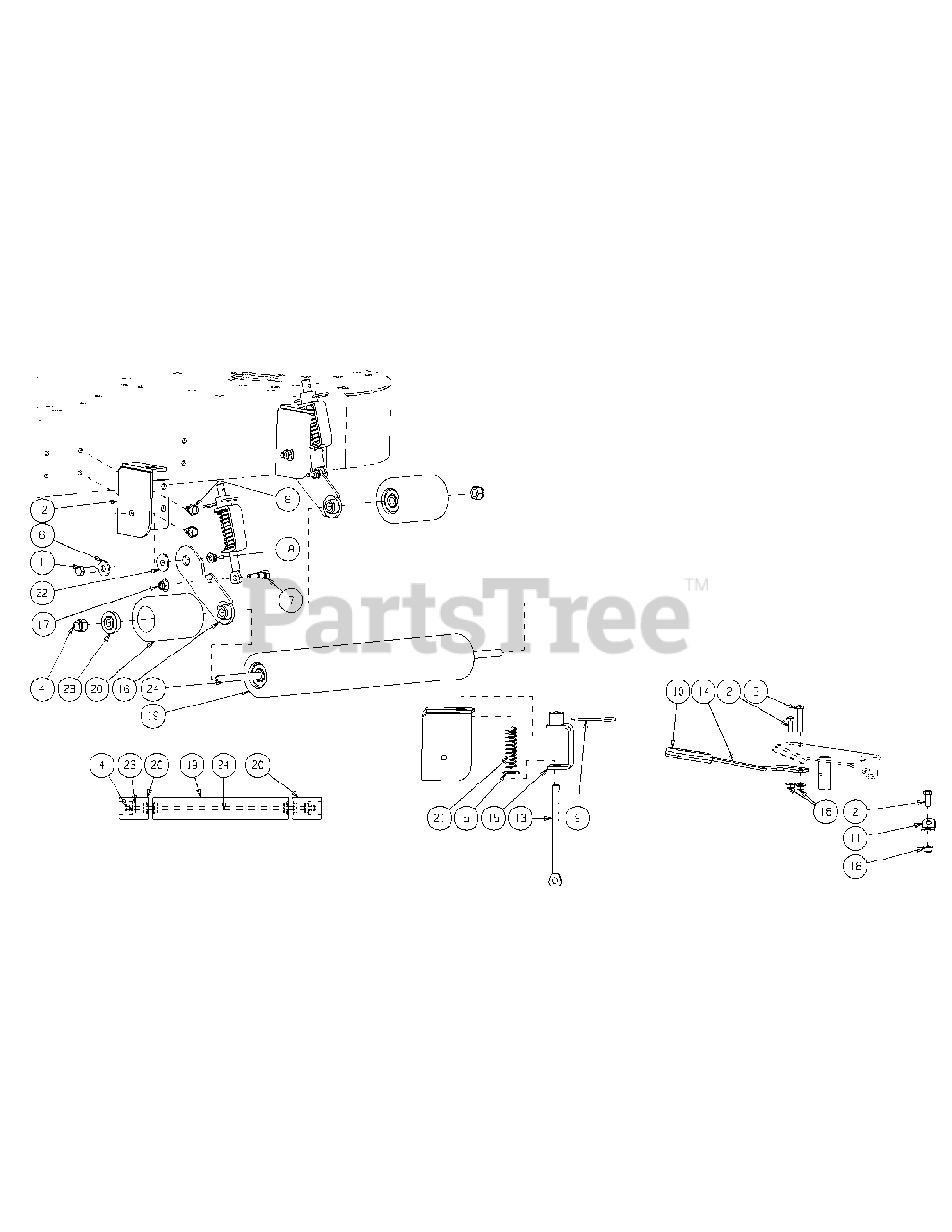

General Assembly Parts Diagram

  • Title

1

Cub Cadet 00011444

HHCS, 3/8-16 x 1-1/4

$4.49

$

In Stock, Qty 9

0

2

Cub Cadet 00012171

HHCS, 3/8-16 x 1.00

$3.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 00012172

HHCS, 3/8-16 x 2.00
(Superseded to 710-3096)

$7.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 00012428

Nut, 1/2-13, Nylon Insert

$6.99

$

In Stock, only 2 left!

0

5

Cub Cadet 00012577

Washer, 1/2 Zinc

$5.49

$

In Stock, Qty 12

0

6

Cub Cadet 01000723

Flat Washer, .406 ID, 1.0 OD,.105
(Superseded to 736-3052)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 01002988

Shoulder Bolt
(Superseded to 738-05006)

$9.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 01004304

Hex Index Washer Screw, 3/8-16, .5
(Superseded to 710-0773)

$7.49

$

In Stock, only 3 left!

0

9

Cub Cadet 02003074

HitchPin, .120 Dia. x 3.0

$6.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 02003740

Grip

$10.99

$

In Stock, only 1 left!

0

11

Cub Cadet 02004194

Spring Mounting Bracket, 45 degree
(Superseded to 02004195)

$31.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 02004887

Striper Mounting Bracket
(Superseded to 02004887-0637)

Variations

Cub Cadet 02004887-0637

BRACKET - STRIPER - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 02004891

Striper Adjustment Rod

$

$

Not available

14

Cub Cadet 02005199

Idler Tension Handle
(Superseded to 02005199-0637)

Variations

Cub Cadet 02005199-0637

HANDLE - IDLER - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 680-00002

Striper Adjustment Clip Assembly
(Superseded to 680-00002-0637)

Variations

Cub Cadet 680-00002-0637

CLIP ASSY - STRIPER - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 680-00005

Striper Arm Bracket Assembly

$106.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 712-04063

Nylon Nut, 5/16-18, Flangelock

$3.99

$

In Stock, Qty 5

0

18

Cub Cadet 712-04065

Nylon Nut, 3/8-16, Flangelock

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 731-06526

Roller, 18.20" w/ Insert

$87.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 731-06528

Roller, 3.94" w/ Insert

$

$

Not available

21

Cub Cadet 732-04553

Compression Spring, .72 OD x 2.75

$13.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 738-04372

Shoulder Spacer, .625 Dia. x .190

$7.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 741-04362

Roller Bearing, .5" ID

$30.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 747-05000

Striper Roller Rod

$

$

Not available
