59A30016 (59A30016150) - Cub Cadet Electric Deck Lift att3 General Assembly Parts Diagram

Electric Deck Lift

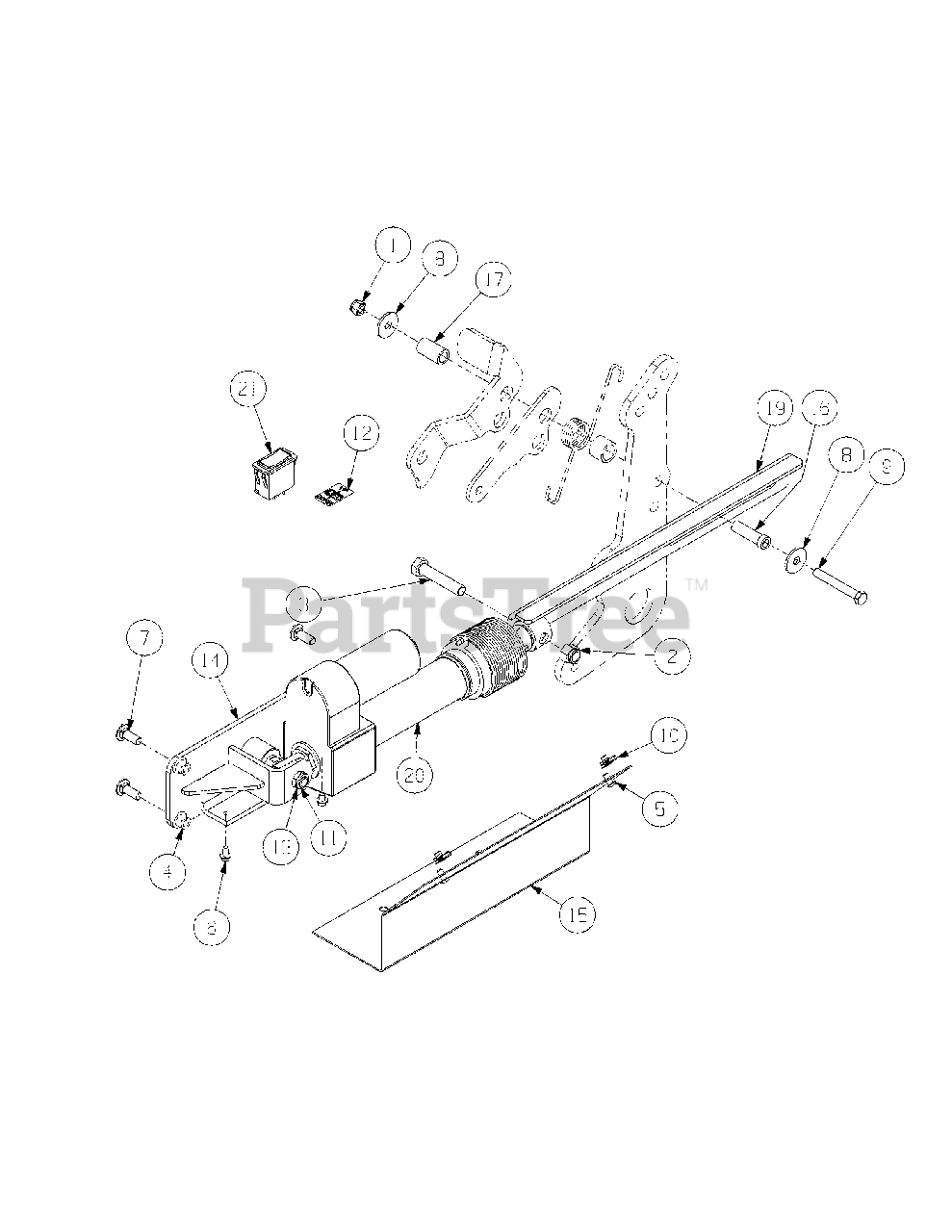

General Assembly Parts Diagram

  • Title

1

Cub Cadet 712-04065

Nut, 3/8-16, Nylock

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 00012428

Nut, 1/2-13, nylock

$6.99

$

In Stock, only 2 left!

0

3

Cub Cadet 00013894

HHCS, 1/2-20 x 2.50

$

$

Not available

4

Cub Cadet 00022560

Nut, 3/8-16, Flangelock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-3256

Capscrew, 1/4-20 x .500

$10.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0599

Self Tapping Screw, 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1.00

$5.49

$

In Stock, Qty 7

0

8

Cub Cadet 936-0133

Washer, 1.25 x .411 x .100
(Superseded to 736-0133)

$

$

Not available

9

Cub Cadet 710-3022

HHCS, 3/8-16 x 2.75

$4.99

$

In Stock, Qty 7

0

10

Cub Cadet 01008539P

U-Nut, 1/4-20
(Superseded to 726-3054)

$4.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 01009740

Pivot Pin

$

$

Not available

12

Cub Cadet 01009761

Label, Up/Down

$

$

Not available

13

Cub Cadet 01010114

Jam Nut, 1/2-13

$

$

Not available

14

Cub Cadet 02005416

Actuator Weldment

Variations

Cub Cadet 02005416-0637

PLATE ASM - ACTUAT - POWDER BLACK (0637)

$

$

Not available

$

$

15

Cub Cadet 02005611

Lower panel, RH

Variations

Cub Cadet 02005611-4021

PANEL - LOWER RH - CUB YELLOW 2 (4021)

$

$

Not available

$

$

16

Cub Cadet 02005663

Spacer, .390 ID x .625 OD x 1.93

$

$

Not available

17

Cub Cadet 02005664

Spacer, .515 ID x .75 OD x 1.313

$

$

Not available

19

Cub Cadet 680-00015

Deck Lift Arm Assembly

Variations

Cub Cadet 680-00015-0637

ARM ASSY - DECK LIFT - POWDER BLACK (0637)

$

$

Not available

$

$

20

Cub Cadet 925-04077

Actuator

$997.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 925-04761

Switch

$76.99

$

In Stock, only 1 left!

0

Cub Cadet 929-04165

Harness

Note: Not shown

$

$

Not available
