59A30015 (59A30015150) - Cub Cadet Work Light Kit General Assembly Parts Diagram

Work Light Kit

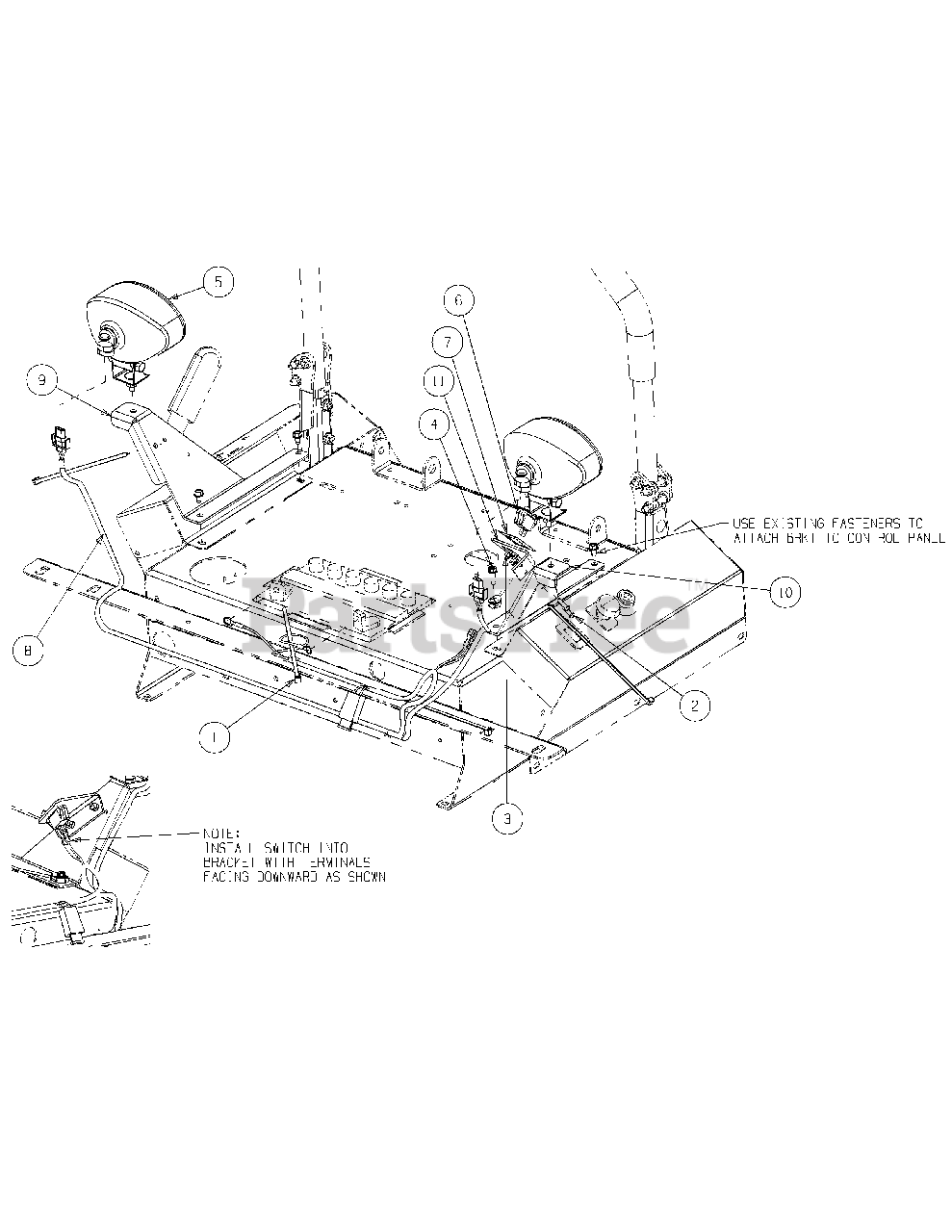

General Assembly Parts Diagram

  • Title

1

Cub Cadet 00012470

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 00030906

Phillips Head Machine Screw, 10-32 x 5/8

$6.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 00014608

Nut, #10-32, Nylon Lock
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

4

Cub Cadet 01000629

Self Tapping Screw, 1/4-20 x .75
(Superseded to 710-0642)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 01007130

Oval Work Lamp
(Superseded to 01007130P)

$108.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 01007270

Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

7

Cub Cadet 01007273

Label, Headlamp, On/Off

$

$

Not available

8

Cub Cadet 01007274

Harness Assembly
(Superseded to 01007274P)

$

$

Not available

9

Cub Cadet 02005341

Left Hand Work Light Bracket
(Superseded to 02005341-0637)

Variations

Cub Cadet 02005341-0637

Work Bracket - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 02005343

Right Hand Work Light Bracket
(Superseded to 02005343-0637)

Variations

Cub Cadet 02005343-0637

Work Bracket - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 02005345

Switch Bracket
(Superseded to 02005345-0637)

Variations

Cub Cadet 02005345-0637

BRACKET - SWITCH - POWDER BLACK (0637)

$33.99

$

Usually ships in 3-6 days

0

$33.99

$

Usually ships in 3-6 days

0

Cub Cadet 725-1625

7.5 AMP Fuse

Note: Not shown

$8.49

$

Usually ships in 3-6 days

0

Cub Cadet 725-2022

12V Halogen Bulb

Note: Not shown

$39.99

$

Usually ships in 3-6 days

0
