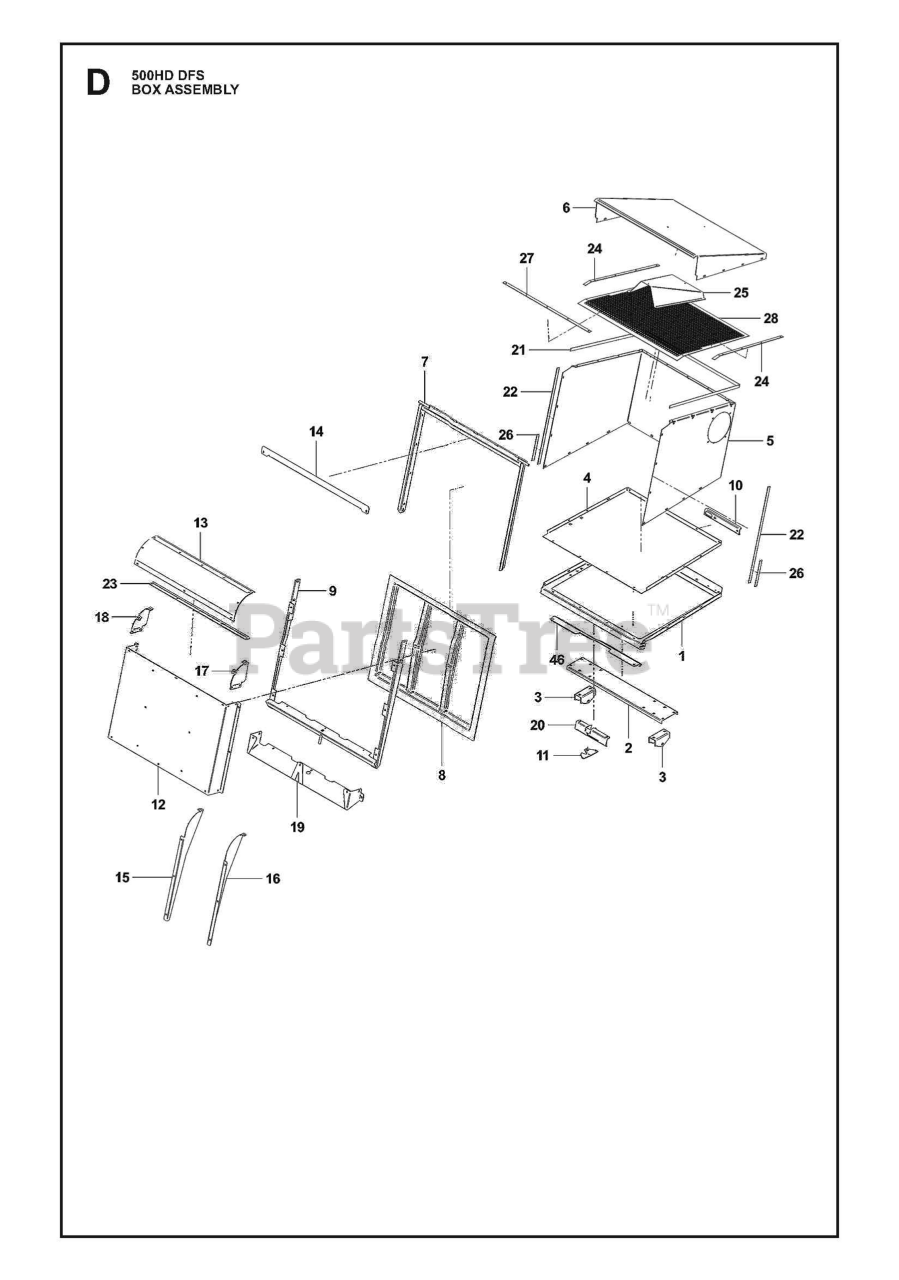

599888201 - Husqvarna Grass Catcher (2020-08) BAGGER Parts Diagram

Grass Catcher

BAGGER Parts Diagram

  • Title

27

Husqvarna 599348732

CLAMPS

Note: Screen Clamp Strip / Rear Door

$

$

Not available

12

Husqvarna 599348761

GUARDS

Note: Dust Diverter

$

$

Not available

26

Husqvarna 599348833

SEALS

Note: Dust Seal / Short Door Sides

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 598684304

BOXES

Note: Frame Weldment / Box Opening

$

$

Not available

20

Husqvarna 599348714

PLATES

Note: Latch Mount Plate Assy.

$

$

Not available

22

Husqvarna 599348832

SEALS

Note: Dust Seal / Long Door Sides

$6.99

$

Usually ships in 3-10 days

0

3

Husqvarna 599348734

BRACKETS

Note: Pivot Bracket

$

$

Not available

6

Husqvarna 599348767

BOX

Note: Box Top

$

$

Not available

19

Husqvarna 599348727

BRACKETS

Note: Dust Diverter Guard Bracket

$

$

Not available

21

Husqvarna 599348831

SEALS

Note: Dust Seal / Top Sides

$17.99

$

Usually ships in 3-10 days

0

16

Husqvarna 599348763

BRACKETS

Note: Right Dust Diverter Brace

$

$

Not available

8

Husqvarna 599348836

DOORS

Note: 12 Box Door

$

$

Not available

17

Husqvarna 599348765

FLAPS

Note: Right Outer Dust Flap Brace

$

$

Not available

5

Husqvarna 599348766

HOUSINGS

Note: Box Back & Sides

$

$

Not available

18

Husqvarna 599348764

FLAPS

Note: Left Outer Dust Flap Brace

$

$

Not available

2

Husqvarna 599348735

MOUNTS

Note: Base Frame Pivot Mount

$

$

Not available

10

Husqvarna 599348736

BRACKETS

Note: Latch Handle Mount Bracket

$

$

Not available

9

Husqvarna 598684270

STIFFENERS

Note: Frame Weldment / Door Stiffener

$

$

Not available

25

Husqvarna 599348768

SUPPORTS

Note: Screen Support

$

$

Not available

15

Husqvarna 599348762

BRACKETS

Note: Left Dust Diverter Brace

$

$

Not available

24

Husqvarna 599348731

CLAMPS

Note: Screen Clamp Strip / Side

$

$

Not available

23

Husqvarna 599348730

FLAPS

Note: Dust Flap Stiffener

$

$

Not available

14

Husqvarna 599348753

DOORS

Note: Upper Door Member

$

$

Not available

13

Husqvarna 599348830

FLAPS

Note: Dust Flap

$

$

Not available

4

Husqvarna 599348757

BOX

Note: Box Bottom

$

$

Not available

46

Husqvarna 599348738

BOX

Note: Box Stop / 6512

$

$

Not available

1

Husqvarna 599348737

BASES

Note: Base Frame

$

$

Not available

11

Husqvarna 599348728

LATCH

Note: Latch Hook

$148.99

$

Usually ships in 3-10 days

0

28

Husqvarna 599348754

SCREENS

Note: Screen / Steel Wire Mesh

$

$

Not available
