598632101 - Husqvarna Engine (2021-01) CARBURETTOR Parts Diagram

Engine

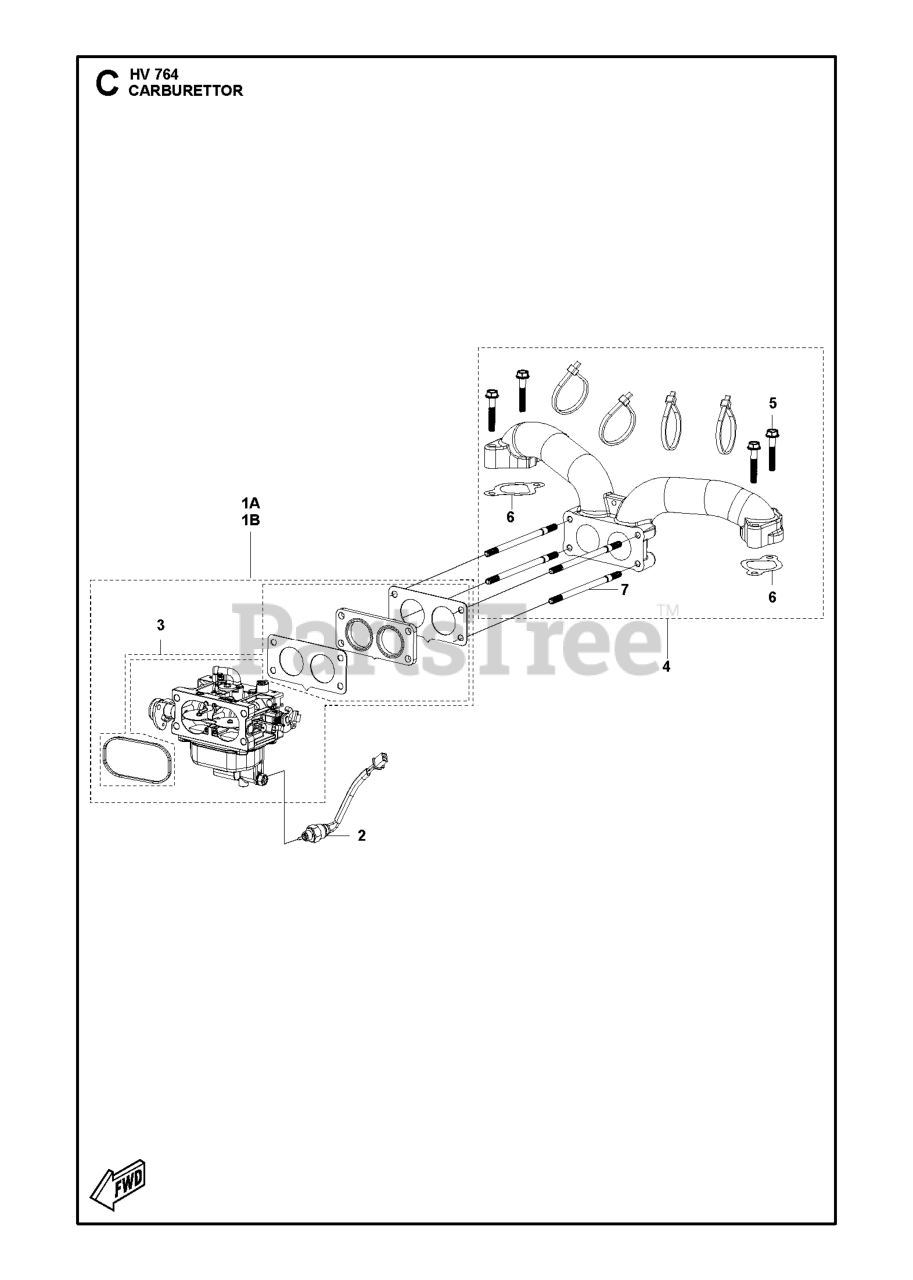

CARBURETTOR Parts Diagram

  • Title

1A

Husqvarna 598599102

NEEDS DESCRIPTION

Note: FOR ENGINE: 598632101, 598632103

$

$

Currently unavailable

2

Husqvarna 598599201

NEEDS DESCRIPTION

Note: SOLENOID VALVE

$

$

Currently unavailable

7

Husqvarna 598607901

NEEDS DESCRIPTION

Note: T52K: M6 L=106 - MULTIPACK: 2

$

$

Currently unavailable

6

Husqvarna 599595101

NEEDS DESCRIPTION

Note: CARBURETTOR GASKET - MULTIPACK: 10

$

$

Currently unavailable

4

Husqvarna 598605501

NEEDS DESCRIPTION

Note: INTAKE PIPE

$

$

Currently unavailable

1B

Husqvarna 598599101

NEEDS DESCRIPTION

Note: FOR ENGINE: 598632102

$

$

Currently unavailable

3

Husqvarna 599594901

NEEDS DESCRIPTION

Note: CARBURETTOR GASKET KIT

$

$

Currently unavailable

5

Husqvarna 598607501

BOLT GB/T 5789: M6 L=35

Note: GB/T 5789: M6 L=35

$2.49

$

Usually ships in 3-10 days
