598390201 - Husqvarna Grass Catcher for Z 400 Series Mower (2020-04) ASSEMBLY Parts Diagram

Grass Catcher for Z 400 Series Mower

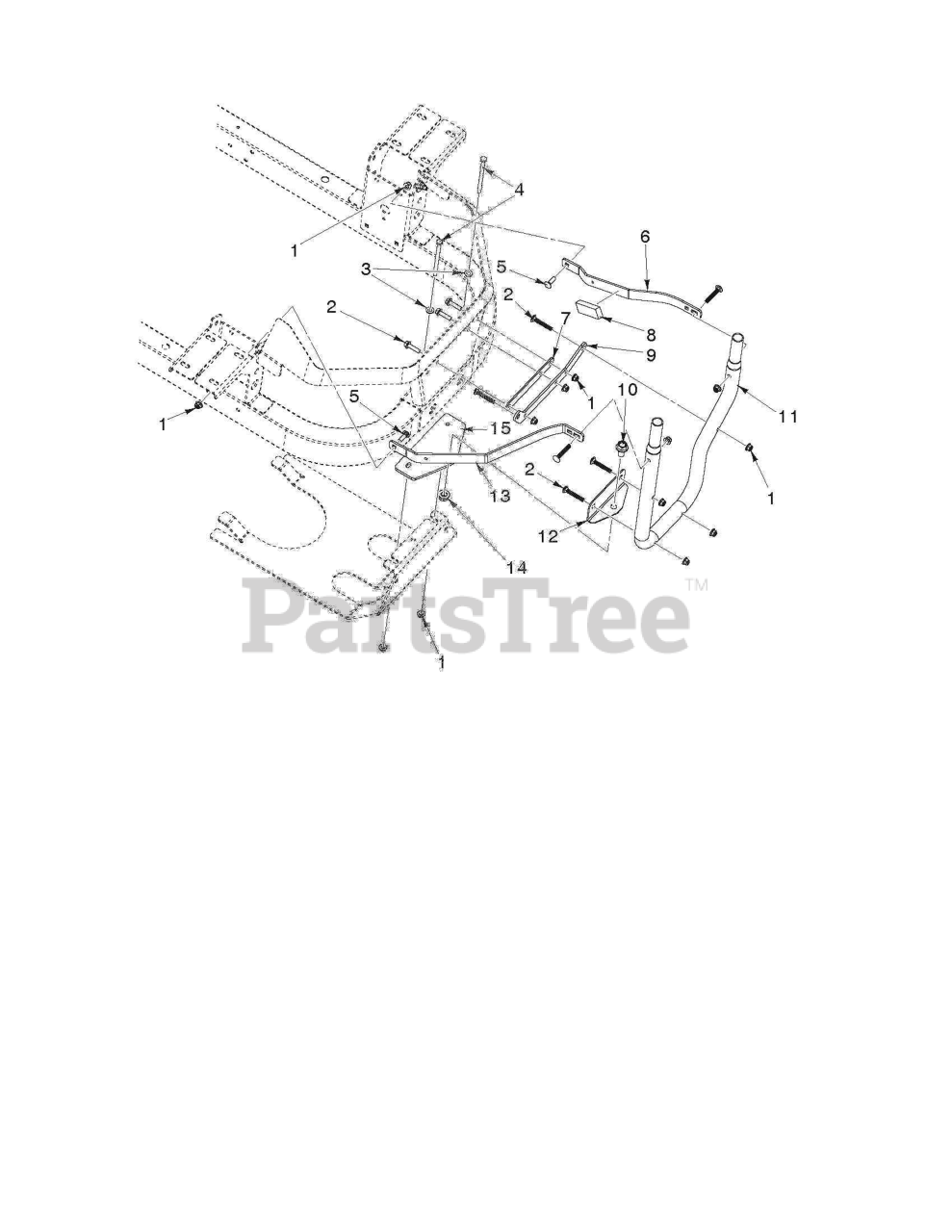

ASSEMBLY Parts Diagram

  • Title

13

Husqvarna 597826502

Strap

Note: Strap LH

$10.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539110290

FOAM STRIP, FUEL TANK

Note: Bolt 1/2-13 x 1

$3.49

$

Usually ships in 3-10 days

0

4

Husqvarna 874930572

BOLT 5/16-18X4 1/2

Note: Bolt 5/16-18 x 4-1/2

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539132192

MOUNT, HITCH, LOWER

Note: Hitch Mount

$17.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539110290

FOAM STRIP, FUEL TANK

Note: Foam Strip 1 x 3

$3.49

$

Usually ships in 3-10 days

0

14

Husqvarna 521991102

NUT 1/2-13 HEX FLANGE NYLOK CL

Note: Nut 1/2-13

$4.99

$

In Stock, Qty 7

0

7

Husqvarna 576221502

SPACER, PLATE, BLK

Note: Spacer Plate

$17.99

$

Usually ships in 3-10 days

0

15

Husqvarna 587671404

Brackets

Note: Bracket Tow Hitch

$22.99

$

Usually ships in 3-10 days

0

5

Husqvarna 595901501

Bolts

Note: Bolt 5/16-18 x 1

$4.99

$

In Stock, only 4 left!

0

6

Husqvarna 597826602

Strap

Note: Strap RH

$10.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539110290

FOAM STRIP, FUEL TANK

Note: "Bracket, Tube Support"

$3.49

$

Usually ships in 3-10 days

0

2

Husqvarna 597879101

Hardware

Note: Bolt 5/16-18 x 2

$2.49

$

Usually ships in 3-10 days

0

1

Husqvarna 594944401

NUT HEXAGON FLANGE 5/16-18 ST

Note: Nut 5/16-18

$6.99

$

In Stock, Qty 20+

0

3

Husqvarna 596204101

WASHER 11/32 X 11/16 X 14 GA T

Note: Washer 11/32 x 11/16 x 14

$3.99

$

In Stock, Qty 11

0

11

Husqvarna 539131091

MOUNT.TUBE.COLLECTIONS

Note: Tube Mount

$265.99

$

In Stock, only 1 left!

0
