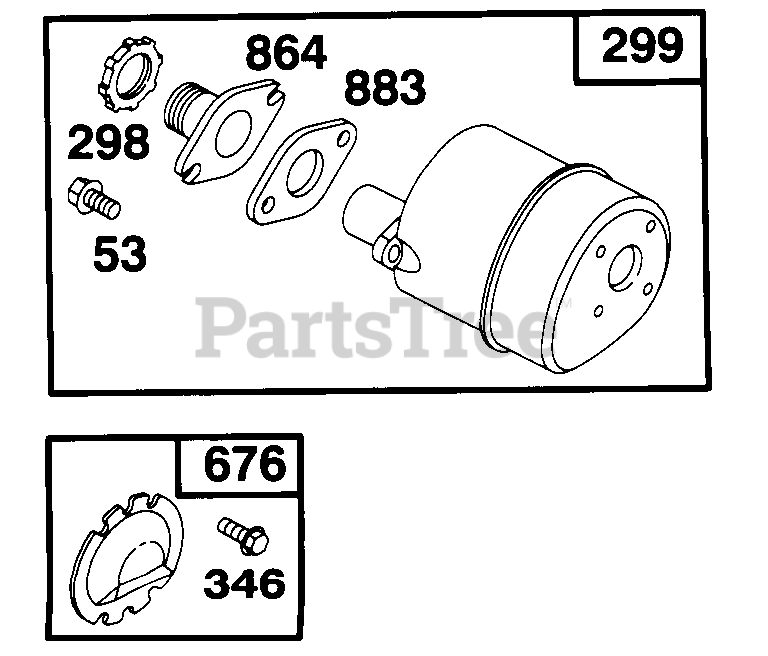

598 (254-598-100) - Cub Cadet Edger Engine (1994) B&S 3 HP Exhaust Muffler Parts Diagram

Edger Engine

B&S 3 HP Exhaust Muffler Parts Diagram

  • Title
53

Cub Cadet BS-94523

Screw-Exhaust

$

$

Not available

298

Cub Cadet BS-220859

Locknut-Muffler

$

$

Not available

299

Cub Cadet BS-493288

Muffler-Exhaust

$36.99

$

In Stock, only 1 left!

0

346

Cub Cadet BS-93705

Screw-Sem
(Superseded to BS-690661)

$3.49

$

In Stock, Qty 8

0

676

Cub Cadet BS-393756

Deflector-Muffler

$

$

Not available

864

Cub Cadet BS-492232

Adapter Assy.-Muffler

$

$

Not available

883

Cub Cadet BS-272203

Gasket-Muffler

Note: Included in Gasket Set Part No. BS-495603.

$

$

Not available
