59289 - Toro 18" Recycler Mower Side-Discharge Kit RECYCLER ASSEMBLY Parts Diagram

18" Recycler Mower Side-Discharge Kit

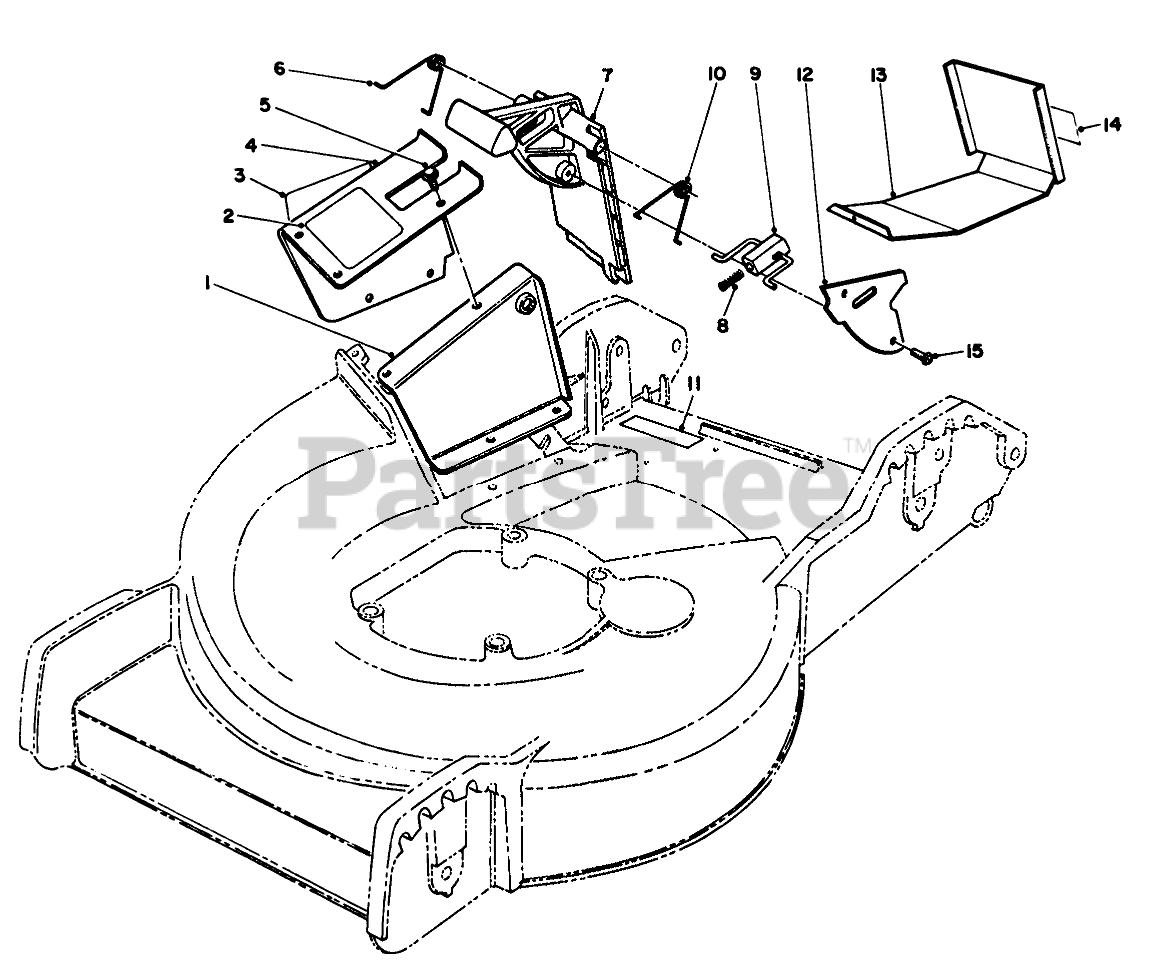

RECYCLER ASSEMBLY Parts Diagram

  • Title

1

Toro 49-8030

Tunnel-Inner
(Superseded to 49-8030-01)

$

$

Not available

2

Toro 88-3360

DECAL - CAUTION DOOR

$

$

Not available

3

Toro 39-5770

DECAL-DANGER

$8.99

$

In Stock, Qty 8

0

4

Toro 14-7789

Tunnel-Outer (Incl. Ref. #2 & 3)

$

$

Not available

5

Toro 32144-112

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

6

Toro 88-1090

SPRING-DOOR, RH

$12.99

$

In Stock, only 2 left!

0

7

Toro 33-0412

DOOR

$

$

Not available

8

Toro 33-0450

SPRING-COMPRESSION, LATCH

$

$

Not available

9

Toro 88-1800

LATCH-DOOR

$

$

Not available

10

Toro 88-1100

LH DOOR SPRING

$

$

Not available

11

Toro 88-9290

DECAL - CAUTION

$

$

Not available

12

Toro 33-0441

DOOR COVER

$14.99

$

Usually ships in 3-6 days

0

13

Toro 88-1120

Discharge Plug Assembly (Incl. Ref. #14)

$

$

Not available

14

Toro 88-6930

DECAL - WARNING

$

$

Not available

15

Toro 32144-32

SCREW

$2.99

$

Usually ships in 3-6 days

0
