59283 - Toro Recycler II Kit RECYCLER ASSEMBLY Parts Diagram

Recycler II Kit

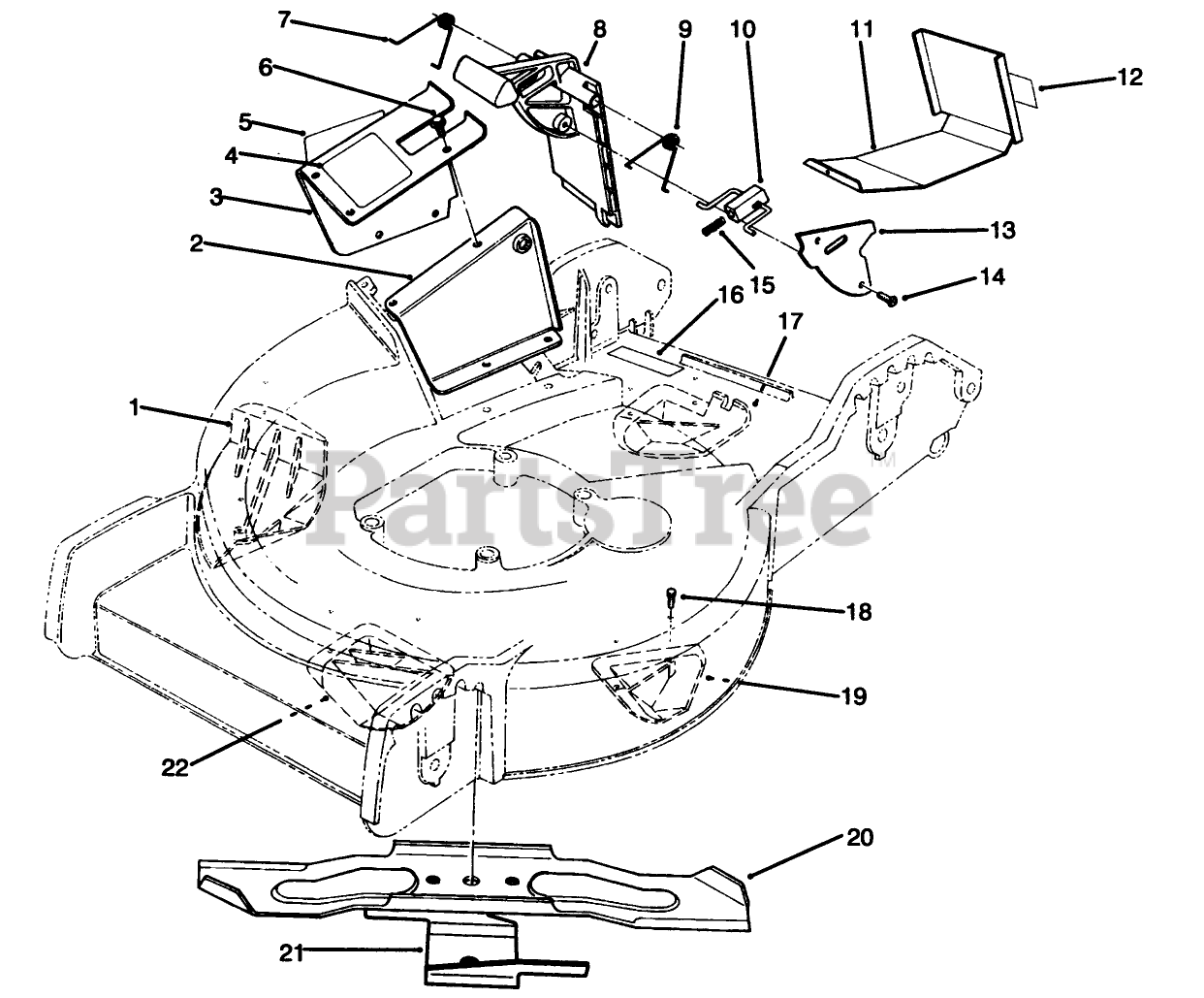

RECYCLER ASSEMBLY Parts Diagram

  • Title
1

Toro 85-7140

KICKER

$

$

Not available

2

Toro 49-8030

Tunnel-Inner
(Superseded to 49-8030-01)

$

$

Not available

3

Toro 14-7789

Tunnel-Outer (Incl. Ref. #4 & 5)

$

$

Not available

4

Toro 88-3360

DECAL - CAUTION DOOR

$

$

Not available

5

Toro 39-5770

DECAL-DANGER

$8.99

$

In Stock, Qty 8

0

6

Toro 32144-112

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

7

Toro 88-1090

SPRING-DOOR, RH

$12.99

$

In Stock, only 2 left!

0

8

$

$

Not available

9

Toro 88-1100

LH DOOR SPRING

$

$

Not available

10

Toro 88-1800

LATCH-DOOR

$

$

Not available

11

Toro 88-1120

Discharge Plug Assembly (Incl. Ref. #12)

$

$

Not available

12

Toro 88-6930

DECAL - WARNING

$

$

Not available

13

Toro 33-0441

DOOR COVER

$14.99

$

Usually ships in 3-6 days

0

14

$2.99

$

Usually ships in 3-6 days

0

15

Toro 33-0450

SPRING-COMPRESSION, LATCH

$

$

Not available

16

Toro 92-8084

DECAL - CAUTION

$

$

Not available

17

Toro 85-7130

KICKER

$

$

Not available

18

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

19

Toro 85-7110

KICKER

$

$

Not available

20

Toro 86-5210

Blade-18"
(Superseded to 86-5210-03)

$87.99

$

Usually ships in 3-6 days

0

21

Toro 92-3075

18 ACCELERATOR

$

$

Not available

22

Toro 85-7120

KICKER

$

$

Not available
