59270 - Toro Replacement Engine, 4-Cycle (SN: 004000001 - 004999999) (1984) AIR CLEANER & MUFFLER ASSEMBLY Parts Diagram

Replacement Engine, 4-Cycle

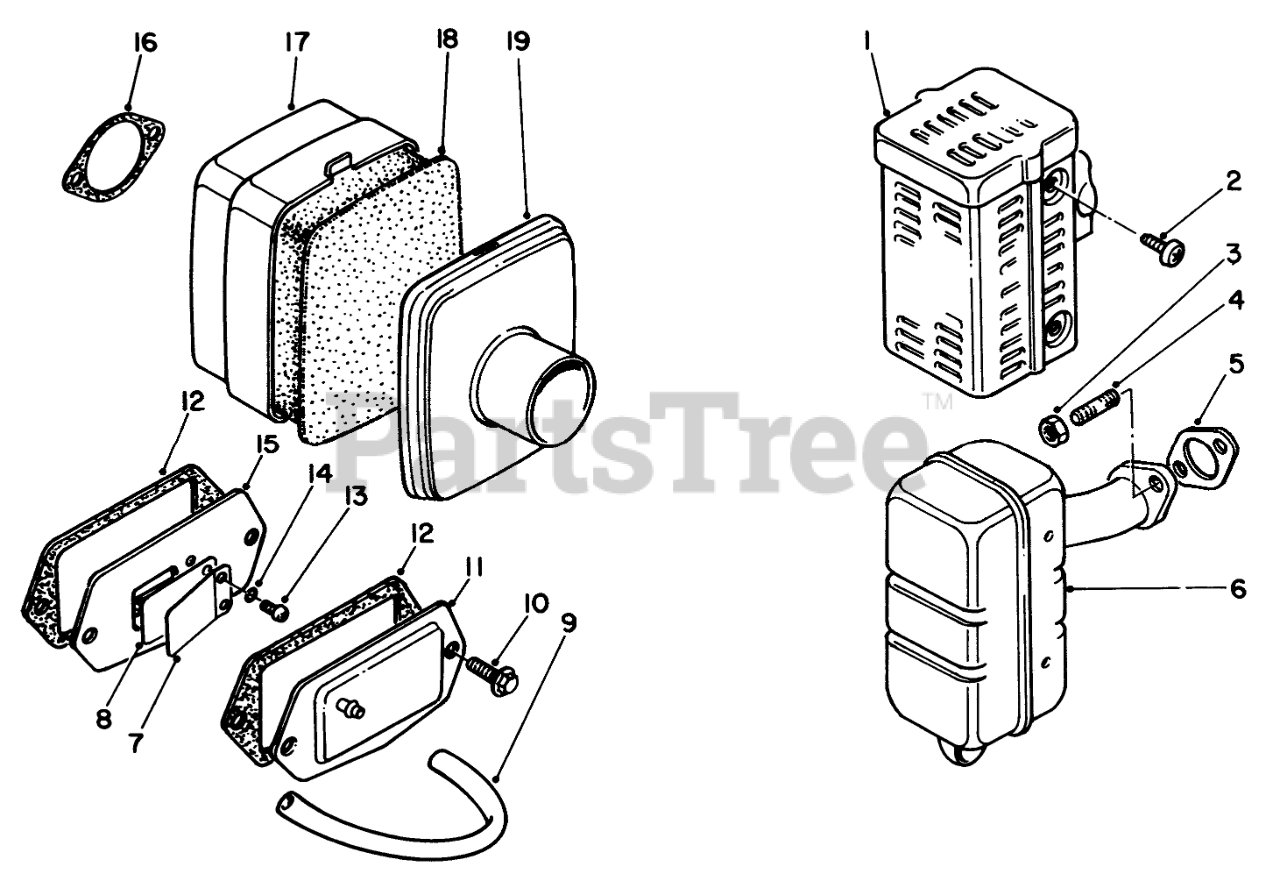

AIR CLEANER & MUFFLER ASSEMBLY Parts Diagram

  • Title

1

Toro 53-1270

Cover-Muffler

$

$

Not available

2

Toro 53-1280

Screw-Round Phillips Hd.

$

$

Not available

3

Toro 50-0530

NUT

$

$

Not available

4

Toro 50-0100

Stud Bolt

$

$

Not available

5

Toro 50-2590

Gasket-Exhaust

$

$

Not available

6

Toro 53-1260

Muffler

$

$

Not available

7

Toro 53-1150

Stopper

$

$

Not available

8

Toro 53-1140

Reed Valve
(Superseded to 50-1560)

$

$

Not available

9

Toro 50-0940

HOSE

$

$

Not available

10

Toro 50-6190

Bolt

$

$

Not available

11

Toro 50-1520

Cap-Breather

$

$

Not available

12

Toro 50-1540

Gasket

$

$

Not available

13

Toro 50-0210

Screw

$

$

Not available

14

Toro 50-0560

Lockwasher

$

$

Not available

15

Toro 50-1560

Reed Valve Assembly (Incl. Ref. #7, 8, 13 & 14)

$

$

Not available

16

Toro 53-1180

GASKET-AIR CLEANER

$

$

Not available

17

Toro 53-1160

Air Cleaner Assembly (Incl. Ref. #19)

$

$

Not available

18

Toro 52-0200

AIR CLEANER FILTER

$

$

Not available

19

Toro 53-1170

CAP

$

$

Not available
