59265 - Toro Replacement Engine, 4-Cycle (SN: 004000001 - 004999999) (1984) MAGNETO & COWLING ASSEMBLY Parts Diagram

Replacement Engine, 4-Cycle

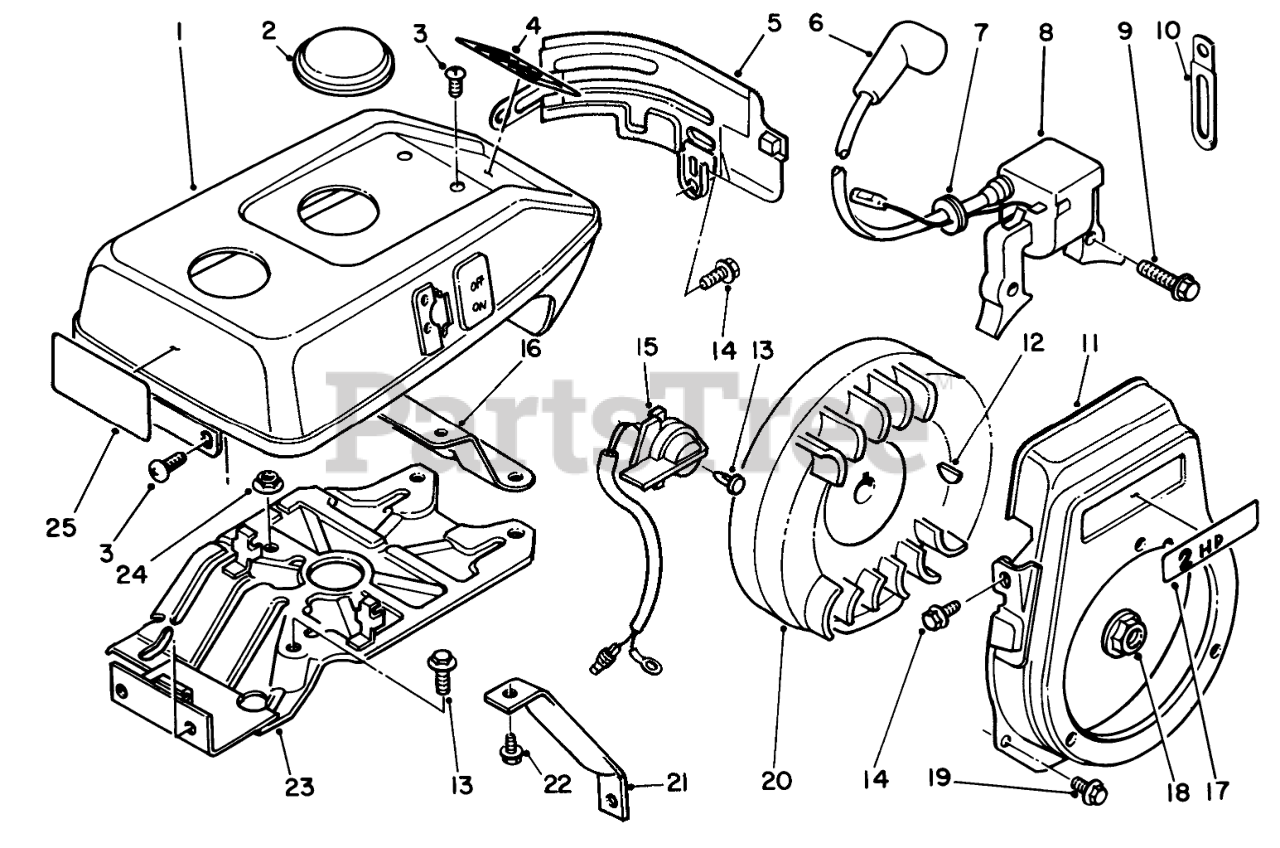

MAGNETO & COWLING ASSEMBLY Parts Diagram

  • Title
1

Toro 53-0800

Cover-Engine

$

$

Not available

2

$

$

Not available

3

Toro 53-0810

Screw-Round Phillips Hd.

$

$

Not available

4

Toro 52-3400

Decal-Toro Logo

$

$

Currently unavailable

5

Toro 53-0760

Cowling-Side

$

$

Not available

6

Toro 81-1500

CAP-SPARKPLUG

$40.99

$

In Stock, only 2 left!

0

7

Toro 53-0840

Grommet

$

$

Not available

8

Toro 53-0830

Coil Assembly (Solid State) (Incl. Ref. #6 & 7)

$

$

Not available

9

$

$

Not available

10

Toro 81-1480

CLAMP

$5.99

$

Usually ships in 3-6 days

0

11

Toro 53-0750

Cover-Cooling Fan

$

$

Not available

12

$

$

Not available

13

$

$

Not available

14

$

$

Not available

15

Toro 53-0880

Switch-Engine
(Superseded to 53-1390)

$

$

Not available

16

Toro 53-0780

Bracket-Engine Cover

$

$

Not available

17

Toro 52-3410

Decal-2 H.P.

$

$

Currently unavailable

18

$

$

Not available

19

$

$

Not available

20

Toro 53-0850

Rotor

$

$

Not available

21

Toro 53-0790

Support-Fuel Tank

$

$

Not available

22

Toro 81-1280

SCREW-HHF

$1.99

$

In Stock, Qty 5

0

23

Toro 53-0770

Cowling-Upper

$

$

Not available

24

$6.99

$

In Stock, only 3 left!

0

25

Toro 52-3380

OPERATING INST DECAL

$16.99

$

Usually ships in 3-6 days

0
