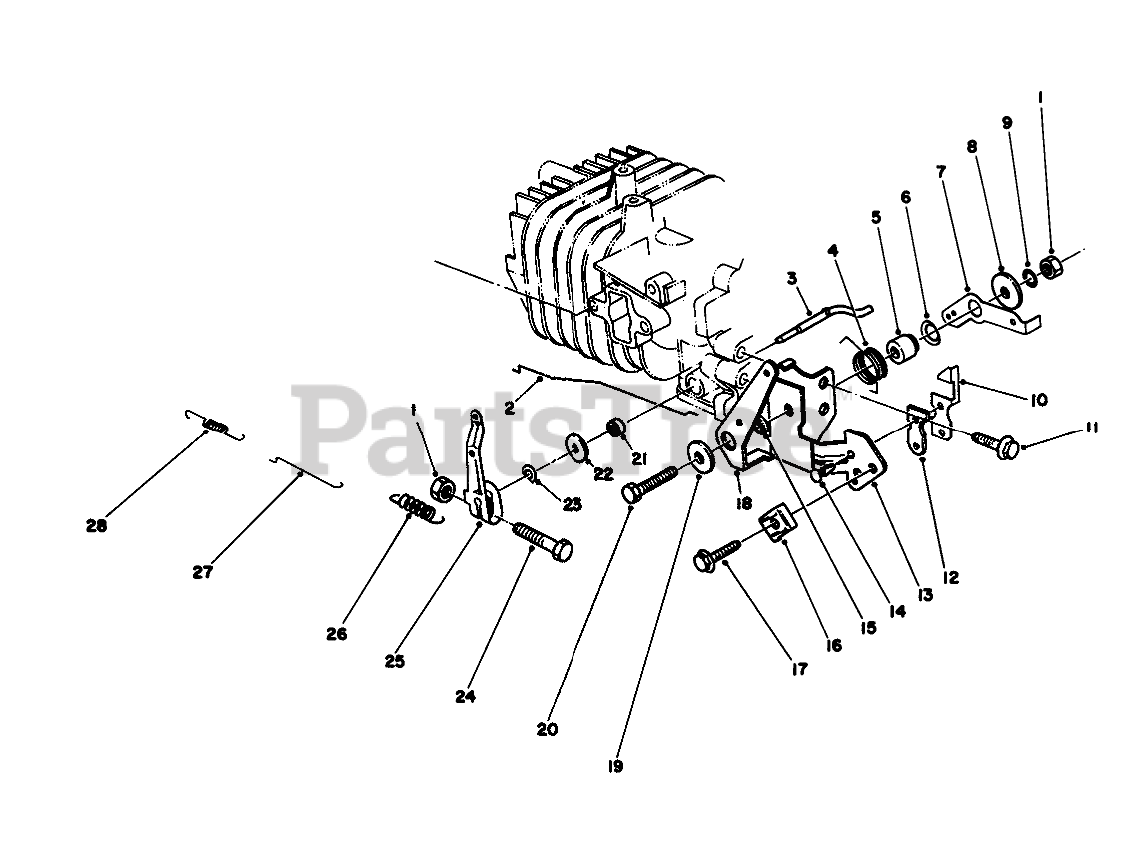

59257 - Toro Replacement Engine, 2-Cycle Zone Start (SN: 005000001 - 005999999) (1985) GOVERNOR ASSEMBLY Parts Diagram

Replacement Engine, 2-Cycle Zone Start

GOVERNOR ASSEMBLY Parts Diagram

  • Title
1

$3.49

$

In Stock, only 1 left!

0

2

Toro 81-1720

CHOKE ROD

$

$

Not available

3

Toro 81-0840

Shaft-Govemor

$

$

Not available

4

Toro 81-2460

SPRING-CHOKE LEVER

$

$

Not available

5

Toro 81-1770

Gov Lever Spacer
(Superseded to 81-5780)

$

$

Not available

6

Toro 81-1820

Washer-Gov. Spring Lever

$

$

Not available

7

Toro 81-1670

GOV SPRING LEVER

$

$

Not available

8

Toro 81-1750

WASHER

$1.99

$

In Stock, Qty 5

0

9

Toro 81-1450

LOCKWASHER

$3.49

$

In Stock, only 2 left!

0

10

Toro 81-1840

TERMINAL-KILL SWITCH

$10.99

$

Usually ships in 3-6 days

0

11

$

$

Not available

12

Toro 81-1830

INSULATOR-KILL SWITCH

$6.99

$

Usually ships in 3-6 days

0

13

Toro 81-2420

BRACKET-THROTTLE, CONTROL

$

$

Not available

14

Toro 81-1850

KILL SWITCH RIVET

$

$

Not available

15

Toro 81-2470

SPACER-CHOKE LEVER

$2.49

$

In Stock, Qty 5

0

16

Toro 81-2430

CLAMP

$

$

Not available

17

$

$

Not available

18

Toro 81-1710

LEVER-CONTROL, CHOKE

$

$

Not available

19

Toro 50-0760

WASHER

$

$

Not available

20

$4.99

$

In Stock, only 2 left!

0

21

Toro 81-0850

SEAL-OIL

$18.99

$

Usually ships in 3-6 days

0

22

Toro 81-0860

WASHER

$

$

Not available

23

Toro 81-0870

E-RING

$

$

Not available

24

$

$

Not available

25

Toro 81-0880

Lever-Throttle Control

$

$

Not available

26

Toro 81-1970

GOVERNOR SPRING

$

$

Not available

27

Toro 81-0910

ROD-CARBURETOR

$

$

Not available

28

Toro 81-0920

SPRING

$11.99

$

Usually ships in 3-6 days

0
