59227 - Toro Recycler Kit for 52" Side-Discharge Mower MULCHING ASSEMBLY Parts Diagram

Recycler Kit for 52" Side-Discharge Mower

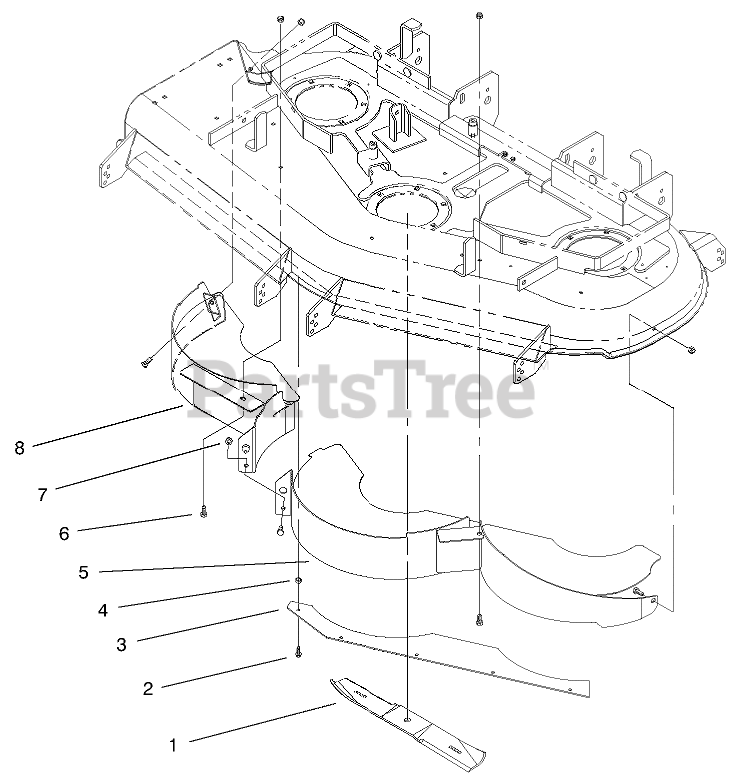

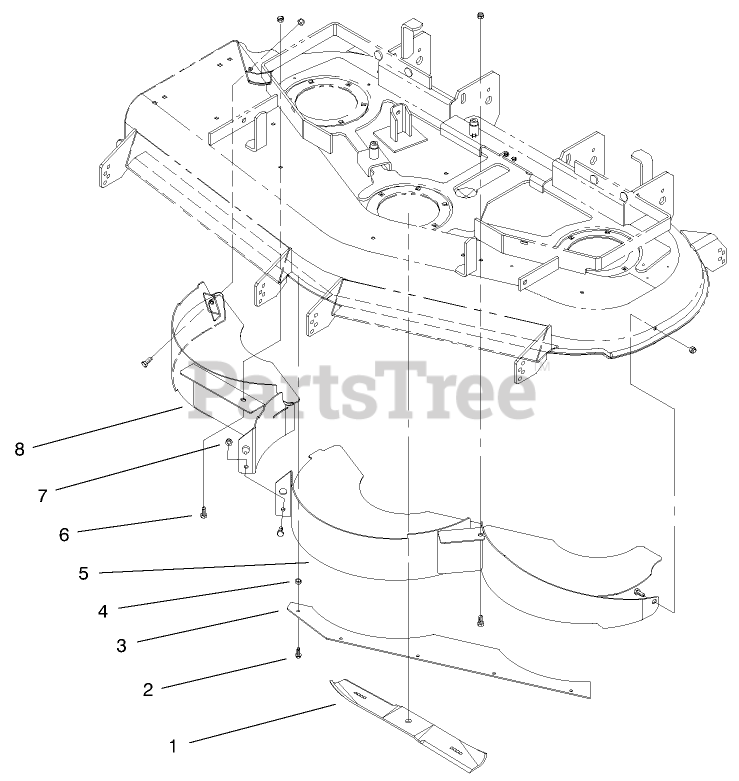

MULCHING ASSEMBLY Parts Diagram

  • Title
1

Toro 99-8549

BLADE-MULCH,18"

$

$

Not available

2

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

3

Toro 99-8521

Baffle-Blowout
(Superseded to 99-8521-03)

$

$

Not available

4

Toro 99-8509

SPACER

$14.99

$

Usually ships in 3-6 days

0

5

Toro 99-8542

Baffle-Left
(Superseded to 99-8542-03)

$

$

Not available

6

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 14

0

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 99-8541

Baffle-Right
(Superseded to 99-8541-03)

$459.99

$

Usually ships in 3-6 days

0
