592050 - Gravely 60" Deck Idler Fix Kit for PM260Z Deck Idler Kit Parts Diagram

60" Deck Idler Fix Kit for PM260Z

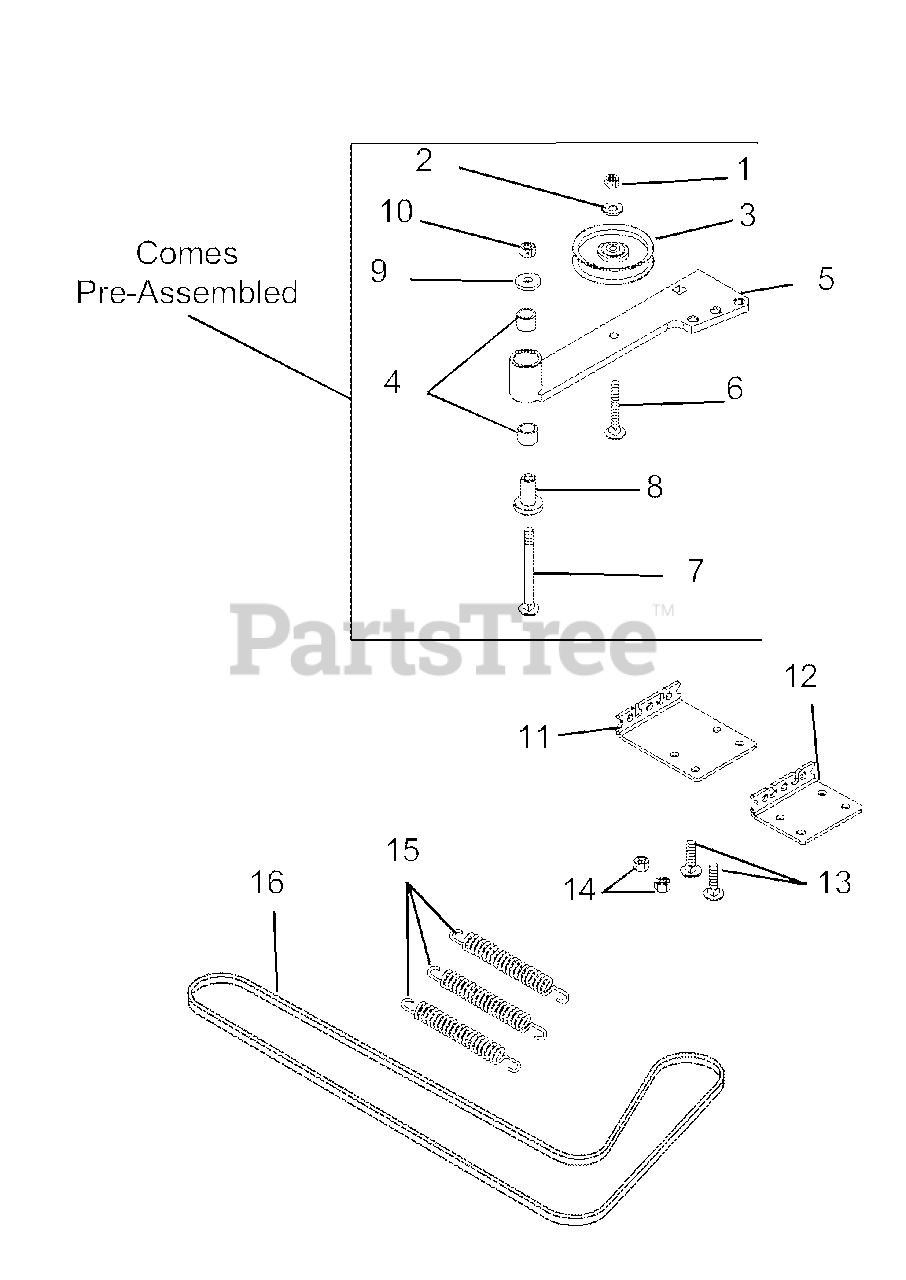

Deck Idler Kit Parts Diagram

  • Title

1

Gravely 06529600

3/8" Center Lock Nut
(Superseded to 06500825)

Note: Assembled to deck idler pivot arm (item 5)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 446470

3/8" 1-1/8" x 1/16" Flat Steel Washer
(Superseded to 06401139)

Note: Assembled to deck idler pivot arm (item 5)

$2.49

$

In Stock, only 2 left!

0

3

Gravely 07328300

Idler

Note: Assembled to deck idler pivot arm (item 5)

$180.99

$

Usually ships in 4-12 days

0

4

Gravely 05435800

Bearing

Note: Assembled to deck idler pivot arm (item 5)

$9.49

$

In Stock, Qty 6

0

5

Gravely 00198451

Idler Pivot Arm

Note: Assembled to deck idler pivot arm (item 5)

$206.99

$

Usually ships in 4-12 days

0

6

Gravely 06225400

3/8" x 2-3/4" Round Head Square Neck Bolt
(Superseded to 06200316)

Note: Assembled to deck idler pivot arm (item 5)

$3.99

$

In Stock, only 1 left!

0

7

Gravely 06200003

1/2" x 3-1/2" Round Head Square Neck Bolt
(Superseded to 06200340)

Note: Assembled to deck idler pivot arm (item 5)

$5.99

$

In Stock, only 2 left!

0

8

Gravely 07053100

Pedestal Bearing
(Superseded to 07000031)

Note: Assembled to deck idler pivot arm (item 5)

$83.99

$

In Stock, only 1 left!

0

9

Gravely 415543

17/32" x 1-1/4" x 1/10" Flat Steel Washer
(Superseded to 06441000)

Note: Assembled to deck idler pivot arm (item 5)

$2.99

$

In Stock, Qty 6

0

10

Gravely 06543600

1/2" Top Flange Lock Nut
(Superseded to 06500907)

Note: Assembled to deck idler pivot arm (item 5)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 00198300

Long Spring Bracket

$34.99

$

Usually ships in 4-12 days

0

12

Gravely 00259700

Short Spring Bracket
(Superseded to 00259751)

$49.99

$

In Stock, only 1 left!

0

13

Gravely 06223900

3/8" x 3/4" Round Head Square Neck Bolt
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

14

Gravely 06542000

3/8" Top Flange Lock Nut
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 08300011

Extension Spring
(Superseded to 08300513)

$34.99

$

In Stock, only 2 left!

0

16

Gravely 07240700

52-Inch V-Belt (Kit#: 592065)

Note: (Kit#: 592065)

$88.99

$

In Stock, only 2 left!

0

16

Gravely 07240400

60-Inch V-Belt (Kit#: 592050)

Note: (Kit#: 592050)

$154.99

$

In Stock, only 1 left!

0

16

Gravely 07241300

60-Inch V-Belt (Kit#: 592065)

Note: (Kit#: 592065)

$120.99

$

Usually ships in 4-12 days

0

16

Gravely 07240500

60-Inch V-Belt (Kit#: 592051)

Note: (Kit#: 592051)

$159.99

$

In Stock, only 1 left!

0

16

Gravely 07242300

60-Inch V-Belt (Kit#: 592065)

Note: (Kit#: 592065)

$142.99

$

Usually ships in 4-12 days

0
