5920026 - Gravely Pro-Master 320 50" Deck Kit Mower Frame Kit PN 59002500 & 59002600 Parts Diagram

Pro-Master 320 50" Deck Kit

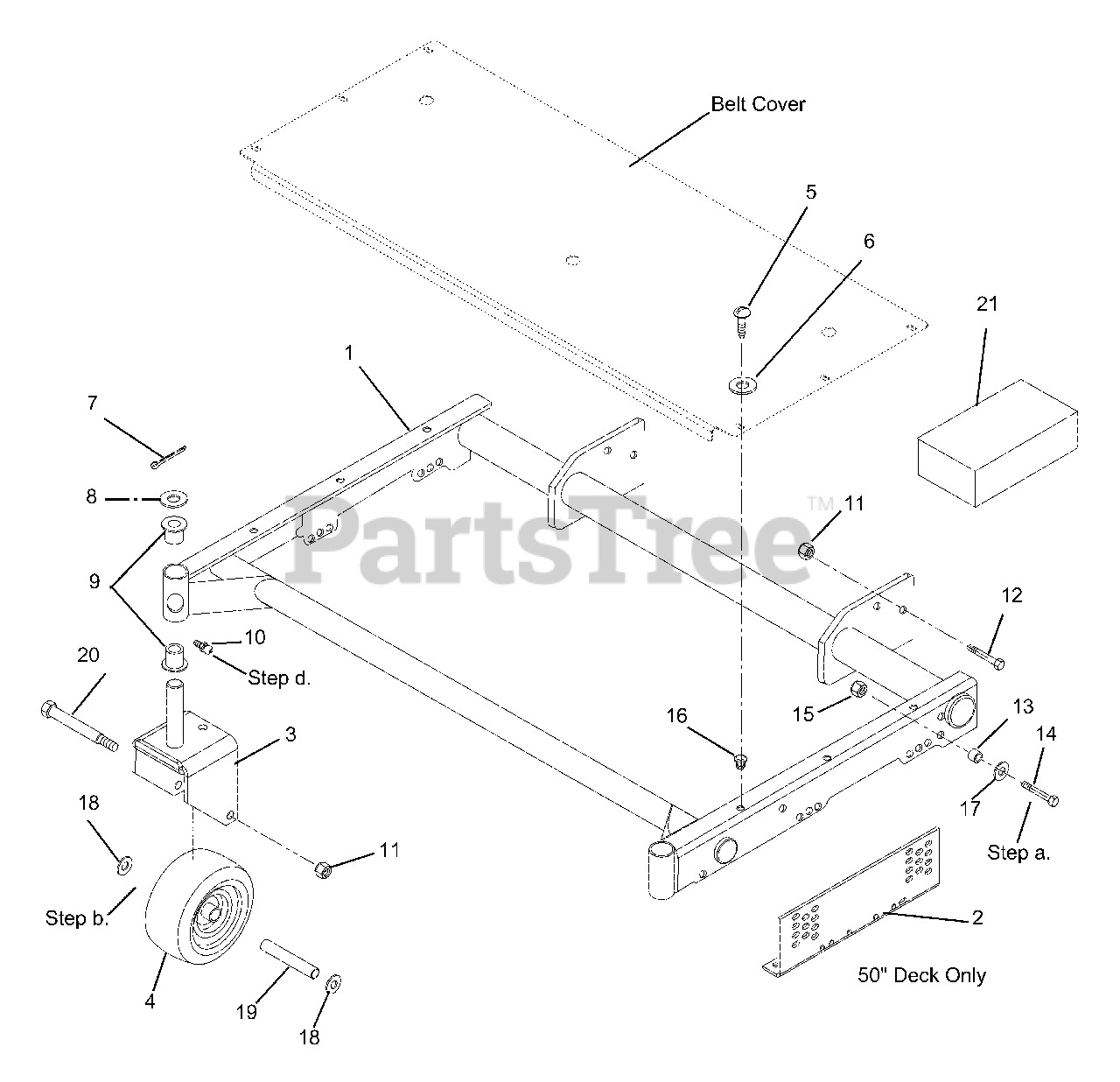

Mower Frame Kit PN 59002500 & 59002600 Parts Diagram

  • Title
1

09084153

Frame, 50" (59002600)

Note: (59002600)

$

$

Not available

1

Gravely 09093753

Frame, 60" (59002500)

Note: (59002500)

$1162.99

$

Usually ships in 4-12 days

0

2

09093853

Bracket, Side 50" RH (59002600)

Note: (59002600)

$

$

Not available

2

09093953

Bracket, Side 50" LH (59002600)

Note: (59002600)

$

$

Not available

3

Gravely 09094053

Weldment, Caster Fork

$

$

Not available

4

Gravely 07147200

Wheel, Assembly 9.00 x 3.5
(Superseded to 58903200)

$284.99

$

In Stock, only 3 left!

0

5

Gravely 07405200

Screw, Tapping .25-20 x .50
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06437300

Washer, Flat .28 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06712800

PIn-Cotter .18 x 1.5

$1.99

$

In Stock, only 2 left!

0

8

Gravely 06435300

Washer, Hardened 1.0 x .55 x .03

$4.99

$

Usually ships in 4-12 days

0

9

Gravely 05520100

Bushing, Flange .02 x 1.38 x .75

$11.99

$

In Stock, Qty 12

0

10

Gravely 07012600

Fitting, Lube
(Superseded to 07001806)

$

$

Not available

11

Gravely 06540600

Nut, Locking Nylon .50-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

12

Gravely 05962000

Bolt, Hex .50-13 x 1.50
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

13

Gravely 08814100

Bushing .39 x .62 x .67

$7.49

$

Usually ships in 4-12 days

0

14

Gravely 05957900

Bolt, Hex .38-16 x 1.50
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

15

Gravely 06535800

Nut, Locking Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

16

Gravely 07538100

Grommet, Plastic

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06441700

Washer, Flat .39 x 1.5 x .125

$3.99

$

In Stock, only 1 left!

0

18

Gravely 06413300

Washer, Hardened .76 x .25 x .09

$5.99

$

In Stock, only 2 left!

0

19

Gravely 09081500

Bearing .75 x .53 x 3.97

$39.99

$

Usually ships in 4-12 days

0

20

Gravely 05964100

Bolt, Hex .50-13 x 5.50
(Superseded to 05901632)

$6.99

$

Usually ships in 4-12 days

0

21

Gravely 58903700

Promaster 300 Tractor Idler Kit

$

$

Not available

Gravely 59002500

KIT- 60" MOWER FRAME

$

$

Not available

Gravely 59002600

KIT- 50" MOWER FRAME

$

$

Not available
