59197 - Toro Side-Discharge Chute, 21" Recycler 3 Mower DISCHARGE TUNNEL & CHUTE ASSEMBLY Parts Diagram

Side-Discharge Chute, 21" Recycler 3 Mower

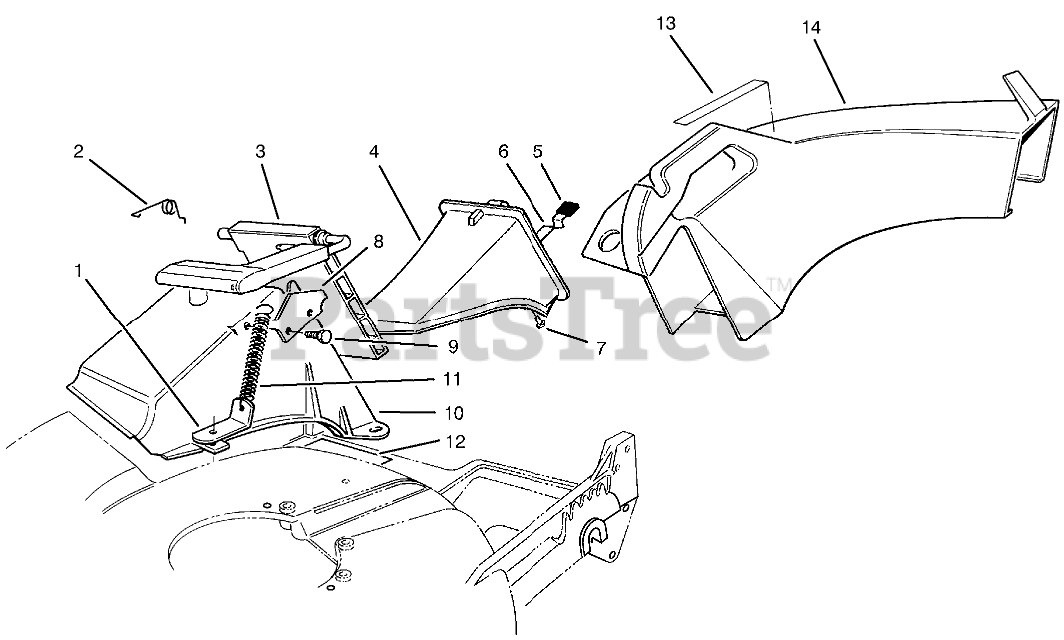

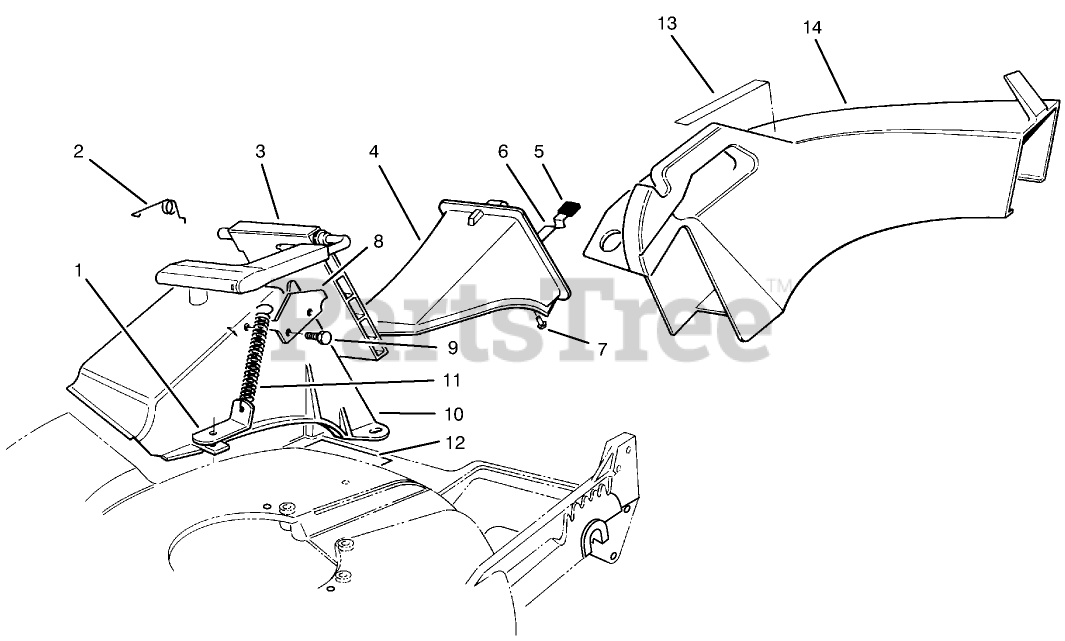

DISCHARGE TUNNEL & CHUTE ASSEMBLY Parts Diagram

  • Title

1

Toro 71-9350

BRACKET-SPRING

$14.99

$

Usually ships in 3-6 days

0

2

Toro 80-3770

RETAINER-DOOR

$7.49

$

In Stock, only 2 left!

0

3

Toro 93-7351

DISCHARGE DOOR ASM

$128.99

$

In Stock, only 1 left!

0

4

Toro 77-0500

Plug Assembly (Incl. Ref. #5-7)

$75.99

$

Usually ships in 3-6 days

0

5

Toro 76-4650

GRIP-LATCH

$5.99

$

Usually ships in 3-6 days

0

6

Toro 76-4640

LATCH-PLUG, DISCHARGE

$22.99

$

Usually ships in 3-6 days

0

7

Toro 3295-35

RIVET-HEAD, FLAT

$2.99

$

Usually ships in 3-6 days

0

8

Toro 93-3154

LATCH-PLATE

$5.99

$

In Stock, Qty 5

0

9

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

10

Toro 82-9152

TUNNEL-DISCHARGE

$177.99

$

Usually ships in 3-6 days

0

11

Toro 76-4660

SPRING-DOOR

$11.99

$

In Stock, Qty 5

0

12

Toro 93-7385

DECAL - CAUTION

$

$

Not available

13

Toro 93-7397

DECAL - CAUTION
(Superseded to 88-3320)

$

$

Not available

14

Toro 59199

Chute-Discharge (Incl. Ref. #13)

$

$

Not available

Toro 93-7371

Tunnel Assembly (Incl. Ref. # 2, 3, 8-10)

Note: Not illustrated

$296.99

$

Usually ships in 3-6 days

0
