59179 - Toro Bagging Discharge Tunnel and Plug DISCHARGE TUNNEL & PLUG ASSEMBLY Parts Diagram

Bagging Discharge Tunnel and Plug

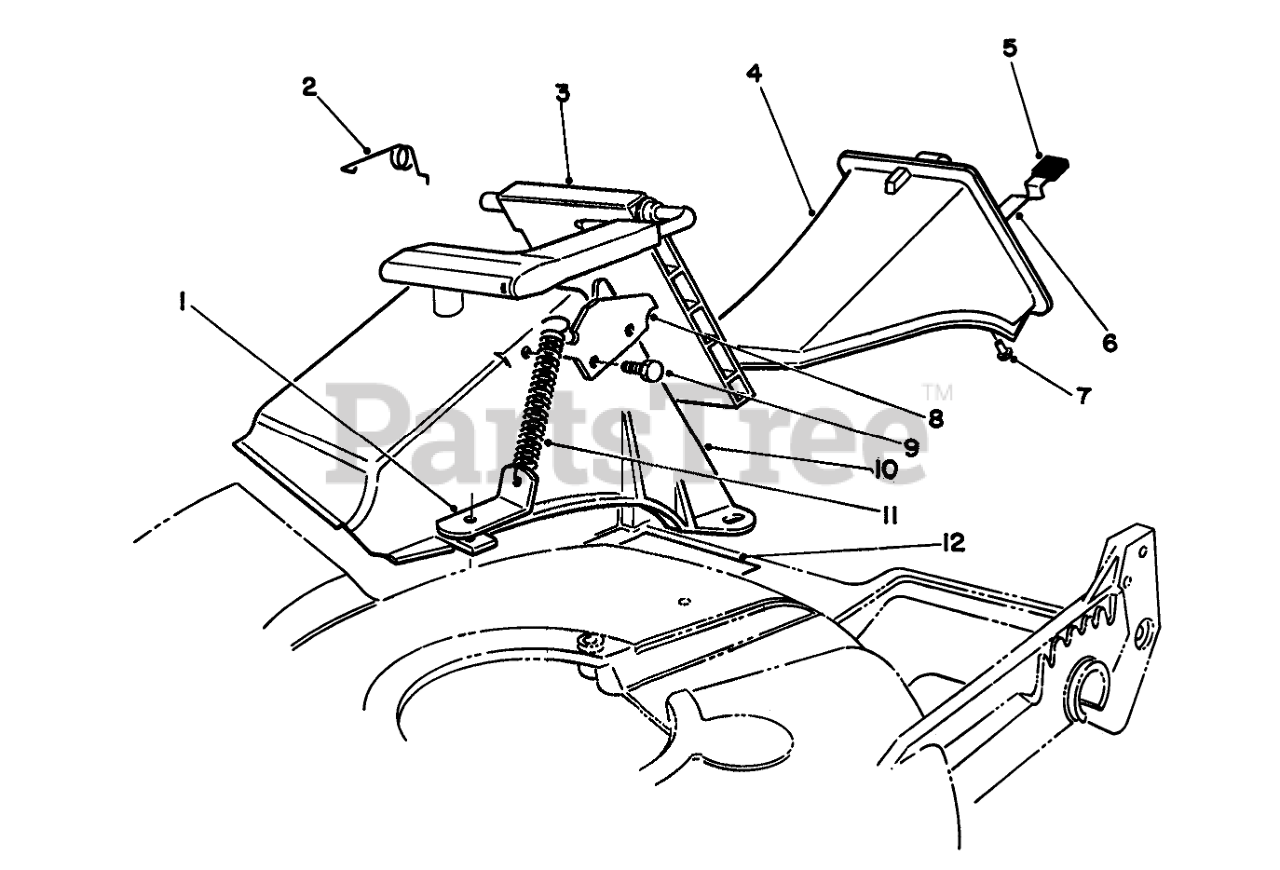

DISCHARGE TUNNEL & PLUG ASSEMBLY Parts Diagram

  • Title
1

Toro 71-9350

BRACKET-SPRING

$14.99

$

Usually ships in 3-6 days

0

2

Toro 80-3770

RETAINER-DOOR

$6.99

$

In Stock, only 2 left!

0

3

Toro 77-0200

DOOR ASSEMBLY

$

$

Not available

4

Toro 77-0500

Plug-Assembly (Incl. Ref. #5-7)

$75.99

$

Usually ships in 3-6 days

0

5

Toro 76-4650

GRIP-LATCH

$5.99

$

Usually ships in 3-6 days

0

6

Toro 76-4640

LATCH-PLUG, DISCHARGE

$22.99

$

Usually ships in 3-6 days

0

7

Toro 3295-35

RIVET-HEAD, FLAT

$2.99

$

Usually ships in 3-6 days

0

8

Toro 76-4570

DOOR LATCH PLATE

$

$

Not available

9

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

10

Toro 82-9150

DISCHARGE TUNNEL

$

$

Not available

11

Toro 76-4660

SPRING-DOOR

$11.99

$

In Stock, Qty 5

0

12

Toro 82-7960

DECAL - CAUTION

$

$

Not available
