59173 - Toro Recycler Kit (Original) RECYCLER ASSEMBLY Parts Diagram

Recycler Kit

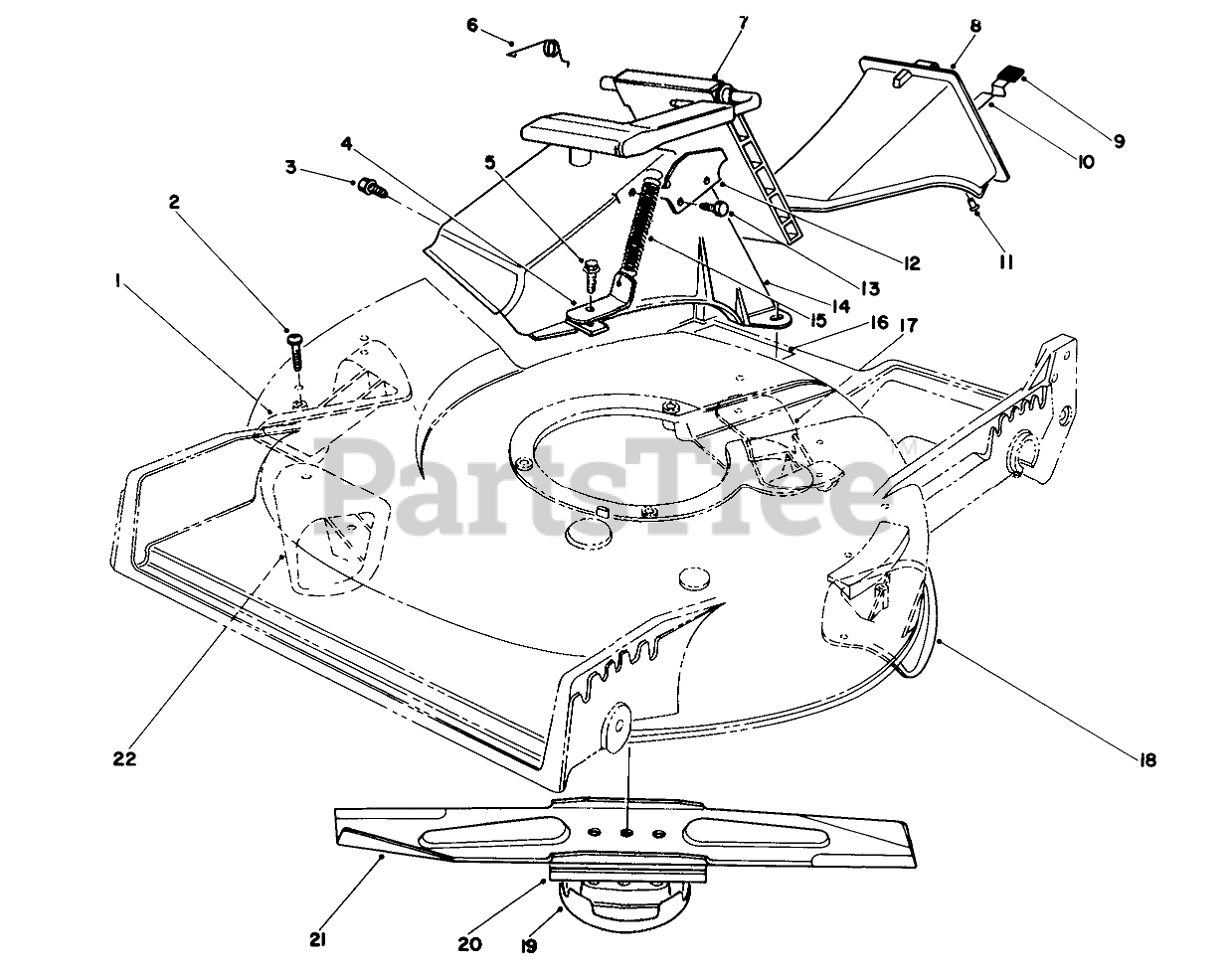

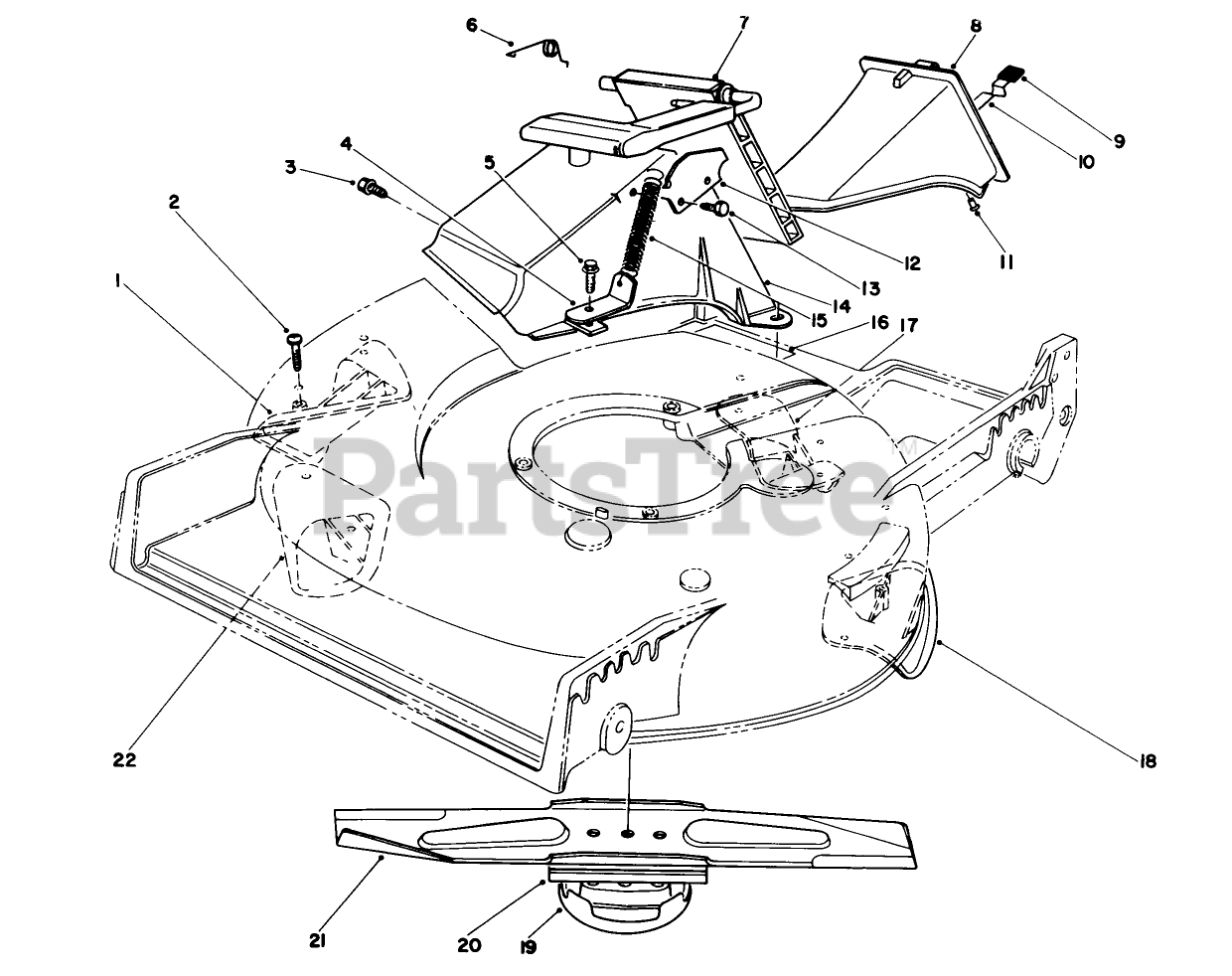

RECYCLER ASSEMBLY Parts Diagram

  • Title

1

Toro 76-2130

KICKER

$29.99

$

Usually ships in 3-6 days

0

2

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

3

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

Usually ships in 3-6 days

0

4

Toro 80-3780

Bracket-Spring
(Superseded to 71-9350)

$14.99

$

Usually ships in 3-6 days

0

5

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

6

Toro 80-3770

RETAINER-DOOR

$6.99

$

In Stock, only 2 left!

0

7

Toro 77-0200

DOOR ASSEMBLY

$

$

Not available

8

Toro 77-0500

Plug Assembly (Incl. Ref. #9-11)

$75.99

$

Usually ships in 3-6 days

0

9

Toro 76-4650

GRIP-LATCH

$5.99

$

Usually ships in 3-6 days

0

10

Toro 76-4640

LATCH-PLUG, DISCHARGE

$22.99

$

Usually ships in 3-6 days

0

11

Toro 3295-35

RIVET-HEAD, FLAT

$2.99

$

Usually ships in 3-6 days

0

12

Toro 76-4570

DOOR LATCH PLATE

$

$

Not available

13

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

14

Toro 82-9150

DISCHARGE TUNNEL

$

$

Not available

15

Toro 76-4660

SPRING-DOOR

$11.99

$

In Stock, Qty 5

0

16

Toro 82-8120

DECAL

$

$

Not available

17

Toro 76-2150

KICKER

$29.99

$

Usually ships in 3-6 days

0

Toro 76-2160

PLATE-KICKER

Note: Not illustrated

$15.99

$

In Stock, Qty 5

0

18

Toro 76-2140

KICKER

$29.99

$

Usually ships in 3-6 days

0

19

Toro 80-2770

CUP-SCALP, ANTI

$16.99

$

Usually ships in 3-6 days

0

20

Toro 80-0510

Stiffener
(Superseded to 80-0510-03)

$19.99

$

In Stock, Qty 7

0

21

Toro 14-1659

Blade Assembly (Incl. Ref. #20)
(Superseded to 91-2256-03)

$36.99

$

In Stock, only 1 left!

0

22

Toro 76-2120

KICKER

$29.99

$

In Stock, only 1 left!

0
