59171 - Toro Recycler Kit for 21" Mower (SN: 010000001 - 019999999) (1991) RECYCLER ASSEMBLY Parts Diagram

Recycler Kit for 21" Mower

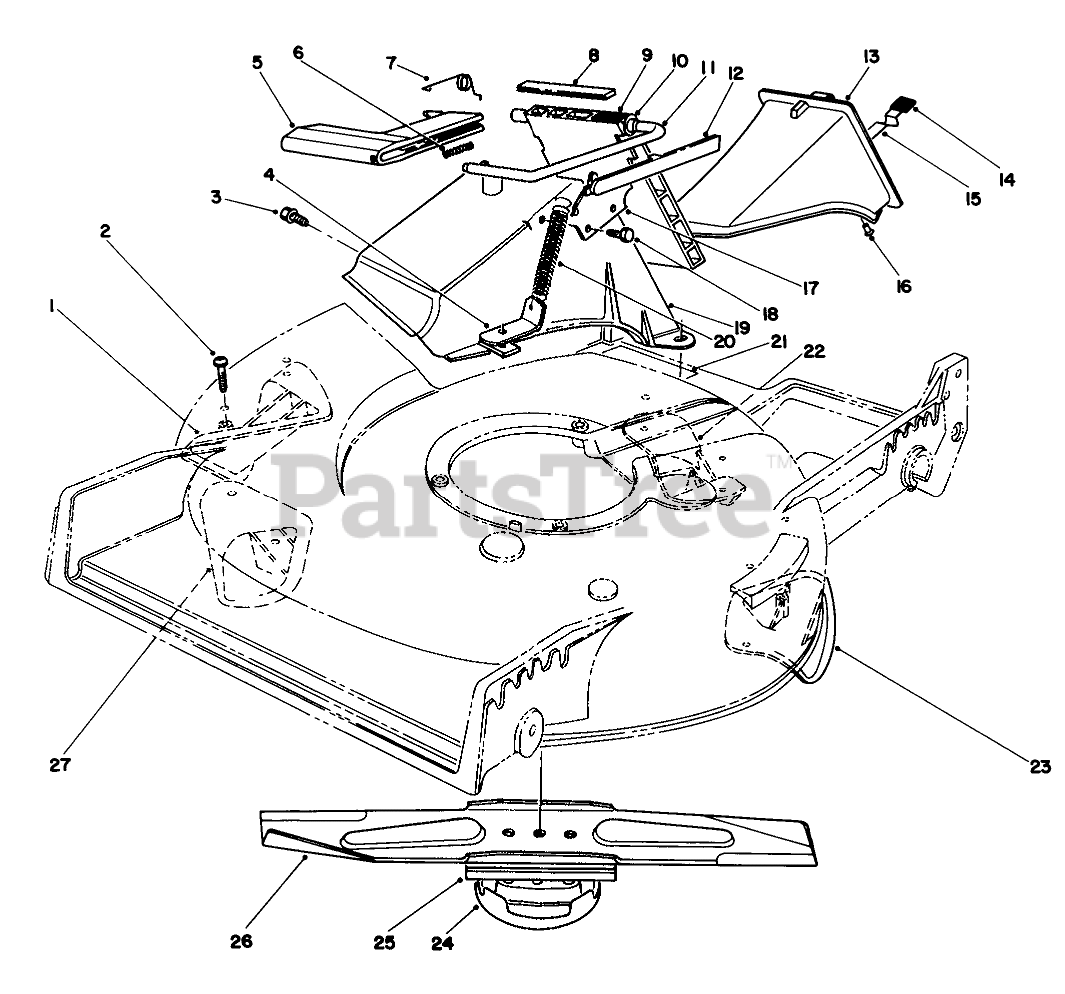

RECYCLER ASSEMBLY Parts Diagram

  • Title
1

Toro 76-2130

KICKER

$29.99

$

Usually ships in 3-6 days

0

2

Toro 32104-130

#8 X .625" PHILPS PAN H

$1.99

$

Usually ships in 3-6 days

0

3

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

Usually ships in 3-6 days

0

4

Toro 80-3780

Bracket-Spring
(Superseded to 71-9350)

$14.99

$

Usually ships in 3-6 days

0

5

Toro 46-3520

Handle-Door

$

$

Not available

6

Toro 46-7060

Spring

$

$

Not available

7

Toro 80-3770

RETAINER-DOOR

$6.99

$

In Stock, only 2 left!

0

8

Toro 46-6821

Cover-Door

$

$

Not available

9

Toro 46-3511

Door-Discharge
(Superseded to 77-0200)

$

$

Not available

10

Toro 23-0880

BUSHING-NYLON

$

$

Not available

11

Toro 76-4580

Rod-Door

$

$

Not available

12

Toro 49-4170

Cover-Handle

$

$

Not available

13

Toro 77-0500

Plug Assembly (Incl. Ref. #14-16)

$75.99

$

Usually ships in 3-6 days

0

14

Toro 76-4650

GRIP-LATCH

$5.99

$

Usually ships in 3-6 days

0

15

Toro 76-4640

LATCH-PLUG, DISCHARGE

$22.99

$

Usually ships in 3-6 days

0

16

Toro 3295-35

RIVET-HEAD, FLAT

$2.99

$

Usually ships in 3-6 days

0

17

Toro 76-4570

DOOR LATCH PLATE

$

$

Not available

18

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

19

Toro 82-9150

DISCHARGE TUNNEL

$

$

Not available

20

Toro 76-4660

SPRING-DOOR

$11.99

$

In Stock, Qty 5

0

21

Toro 82-8120

DECAL

$

$

Not available

22

Toro 76-2150

KICKER

$29.99

$

Usually ships in 3-6 days

0

Toro 76-2160

PLATE-KICKER

$15.99

$

In Stock, Qty 5

0

23

Toro 76-2140

KICKER

$29.99

$

Usually ships in 3-6 days

0

24

Toro 80-2770

CUP-SCALP, ANTI

$16.99

$

Usually ships in 3-6 days

0

25

Toro 80-0510

Stiffener
(Superseded to 80-0510-03)

$19.99

$

In Stock, Qty 7

0

26

Toro 14-1659

Blade Assembly (Incl. Ref. #25)
(Superseded to 91-2256-03)

$36.99

$

In Stock, only 1 left!

0

27

Toro 76-2120

KICKER

$29.99

$

In Stock, only 1 left!

0

Toro 77-0200

Discharge Door Assembly (Incl. Ref. #5, 6, & 8-12)

$

$

Not available
