59167 - Toro 32" Recycler Kit RECYCLER KIT Parts Diagram

32" Recycler Kit

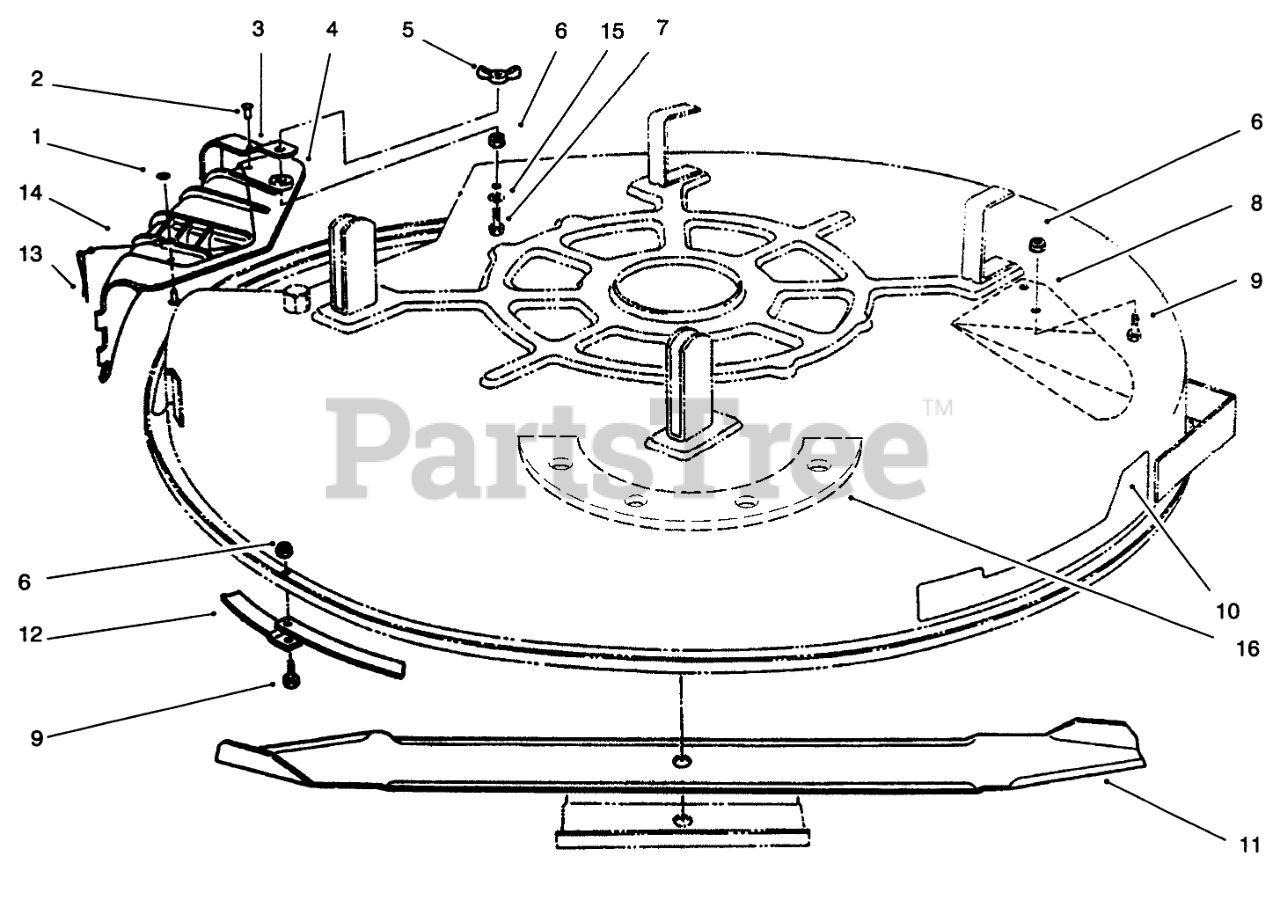

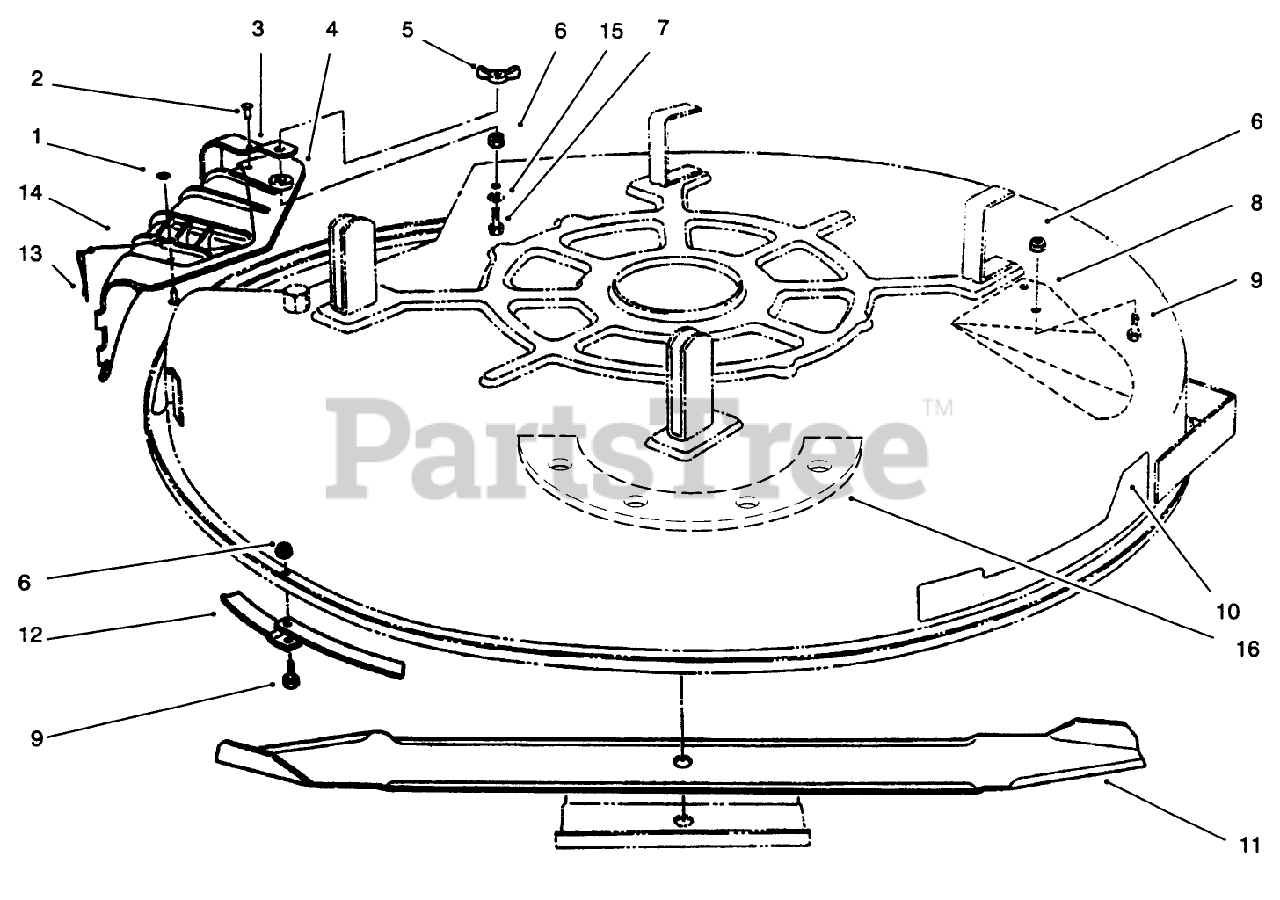

RECYCLER KIT Parts Diagram

  • Title

1

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, Qty 8

0

2

Toro 3290-282

RIVET-BLIND

$0.99

$

In Stock, Qty 8

0

3

Toro 83-7010

Brace-Cover, Rear
(Superseded to 83-7010-03)

$27.99

$

Usually ships in 3-6 days

0

4

Toro 82-6150

Assy.-Cover, Discharge (Incl. Ref. #1-3, 13 & 14)
(Superseded to 82-6151)

$121.99

$

In Stock, only 2 left!

0

5

Toro 32103-2

NUT-WING

$0.99

$

In Stock, only 2 left!

0

6

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

8

Toro 80-2630

Kicker
(Superseded to 80-2630-03)

$33.99

$

In Stock, only 4 left!

0

9

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 92-7988

DECAL-RECYCLER
(Superseded to 106-0689)

$8.49

$

In Stock, Qty 20+

0

11

Toro 80-4430

BLADE-RECYCLER
(Superseded to 80-4430-03)

$52.99

$

In Stock, Qty 10

0

12

Toro 80-4490

RING-DECK
(Superseded to 80-4490-03)

$19.99

$

Usually ships in 3-6 days

0

13

Toro 28-8130

PIN-LOCKING, CHUTE

$12.99

$

Usually ships in 3-6 days

0

14

Toro 28-8070

LANYARD

$16.99

$

Usually ships in 3-6 days

0

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Toro 82-4740

Ring-Spindle
(Superseded to 82-4740-03)

$

$

Not available
