59155 - Toro Mulcher Kit for 32" Mower HOOD ASSEMBLY MODEL 57360 Parts Diagram

Mulcher Kit for 32" Mower

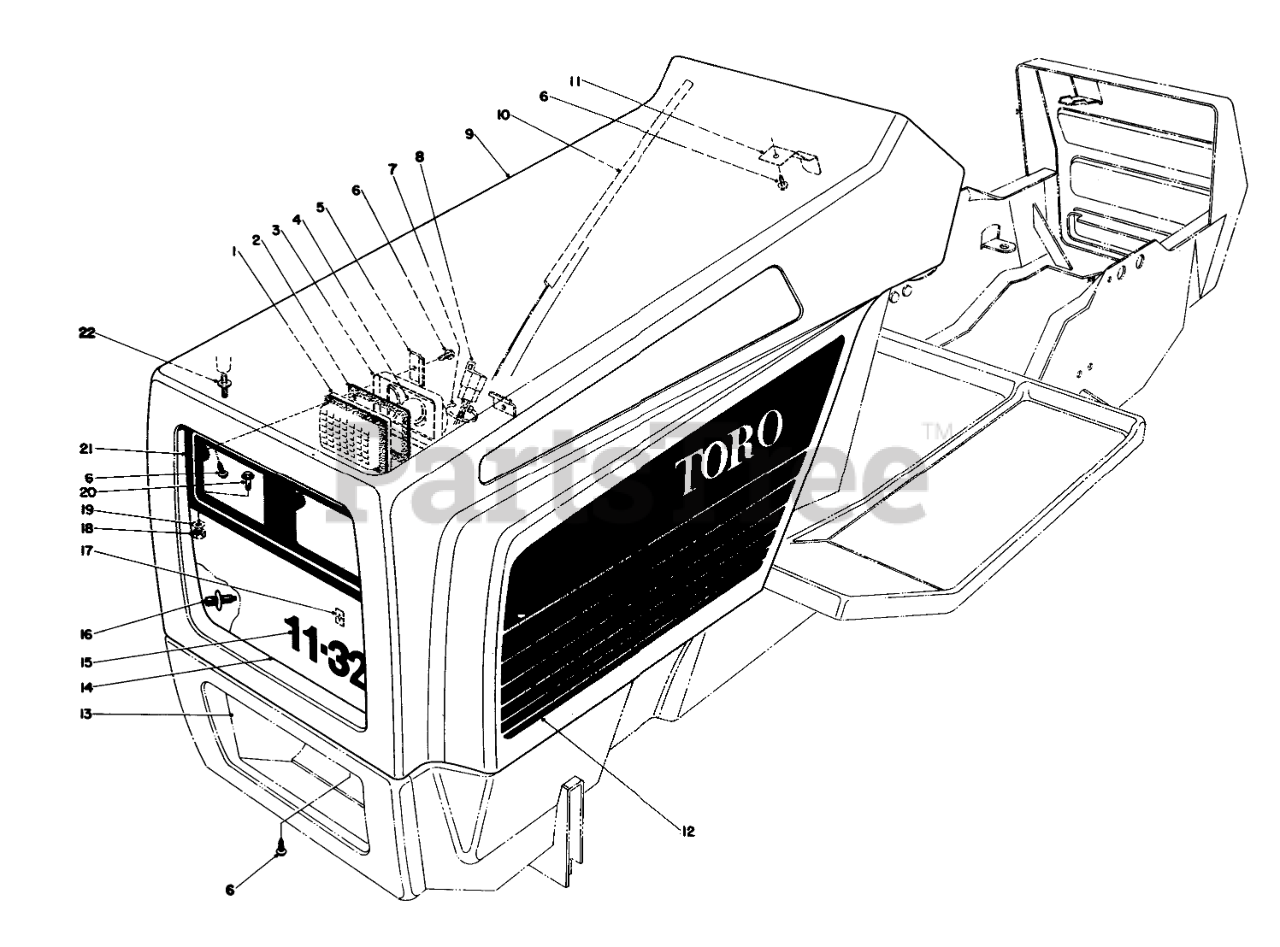

HOOD ASSEMBLY MODEL 57360 Parts Diagram

  • Title

1

Toro 219-14

Lens
(Superseded to 8-3579)

$

$

Not available

2

Toro 219-13

Gasket Lens
(Superseded to 8-3579)

$

$

Not available

3

Toro 38-2580

Reflector
(Superseded to 8-3579)

$

$

Not available

4

Bulb GE #1156

$

$

Not available

5

Toro 28-0050

HEADLIGHT CLAMP

$

$

Not available

6

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

7

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

8

Toro 218-493

CONNECTOR BODY

$

$

Not available

9

Toro 8-6679

Hood (Incl. Ref. #16 & 22)

$

$

Not available

10

Toro 28-3810

RUBBER EXT SEAL

$

$

Not available

11

Toro 27-9130

SPRING LATCH

$

$

Not available

12

Toro 28-4230

Decal Hood LH.

$

$

Not available

Toro 28-4240

R.H. HOOD DECAL

Note: Not illustrated

$

$

Not available

13

Toro 28-0010

LOWER GRILLE

$74.99

$

Usually ships in 3-6 days

0

14

Toro 36-2090

HEADLIGHT GRILLE

$

$

Not available

15

Toro 36-2510

Name Plate-Grille

$

$

Not available

16

Toro 27-9120

HINGE BRKT STUD

$

$

Not available

17

Toro 3290-299

CLIP

$

$

Not available

18

Toro 32153-1

NUT-LOCK, SIDE

$3.99

$

In Stock, only 1 left!

0

19

Toro 3256-21

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

20

Toro 3290-144

SCREW-SHWH

$0.99

$

Usually ships in 3-6 days

0

21

Toro 28-0040

HEADLIGHT PANEL B

$

$

Not available

22

Toro 39-6800

Stud Hood Duct

$

$

Not available

Toro 8-3579

Headlight Assy. (Incl. Ref. #1-4)

Note: Not illustrated

$

$

Not available
