59155 - Toro Mulcher Kit for 32" Mower 36" SNOWTHROWER ATTACHMENT MODEL NO. 59136 Parts Diagram

Mulcher Kit for 32" Mower

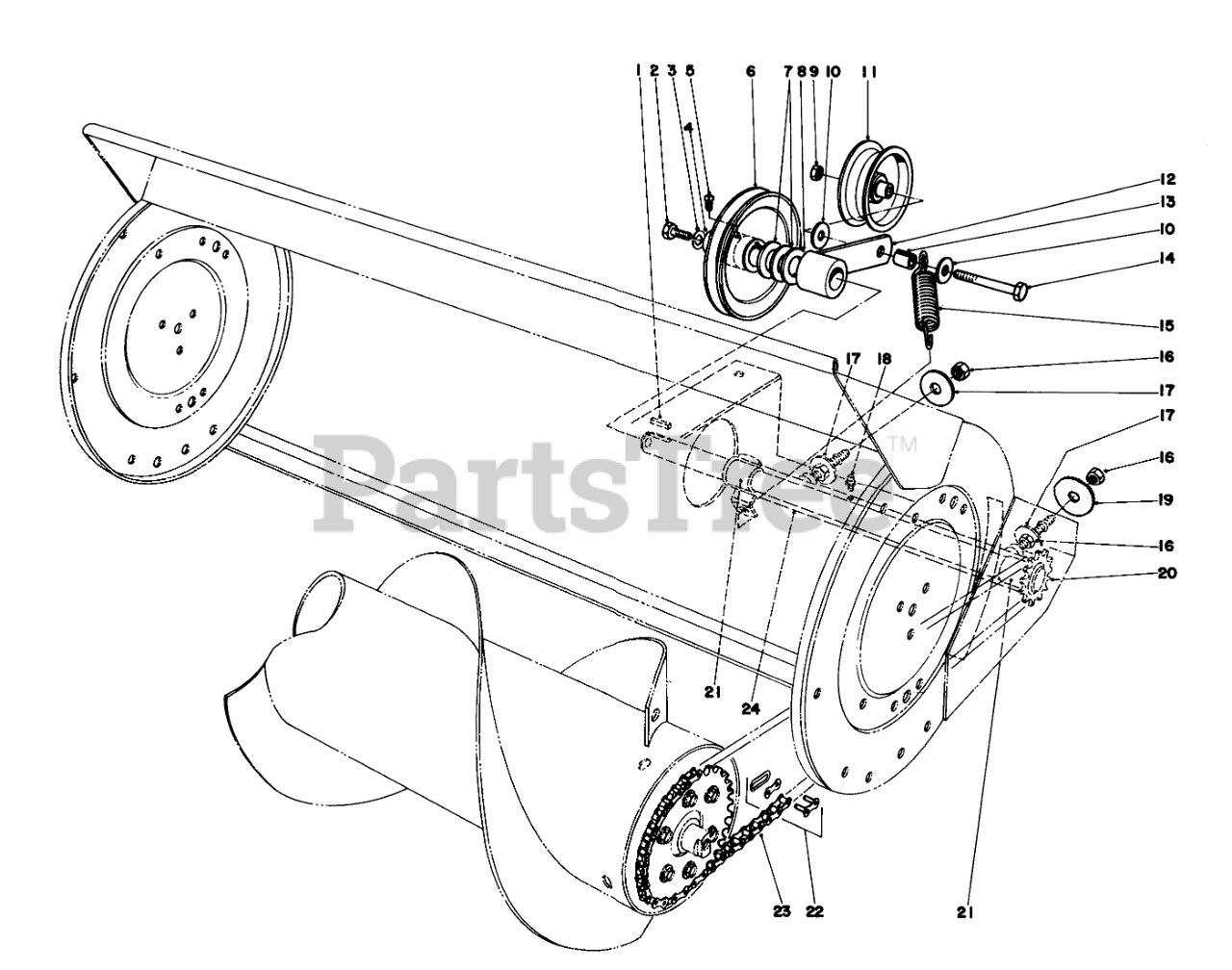

36" SNOWTHROWER ATTACHMENT MODEL NO. 59136 Parts Diagram

  • Title
1

Toro 21-5070

KEY-SQUARE

$

$

Not available

2

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

3

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

4

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 3242-2

SCREW-SQH

$1.99

$

In Stock, only 3 left!

0

6

Toro 40-0860

Pulley

$

$

Not available

7

Toro 3-1000

Washer

$

$

Not available

8

Toro 40-0740

Washer

$

$

Not available

9

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

10

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

11

Toro 40-1260

IDLER PULLEY ASM

$

$

Not available

12

Toro 40-0710

Idler Arm

$

$

Not available

13

Toro 40-0980

Spacer

$

$

Not available

14

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 13

0

15

Toro 40-0730

Spring

$

$

Not available

16

Toro 3217-9

NUT-HH

$0.99

$

In Stock, Qty 19

0

17

Toro 3256-5

WASHER-FLAT

$0.99

$

In Stock, Qty 9

0

18

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

19

Toro 40-0720

Flat Washer

$

$

Not available

20

Toro 40-0770

SHAFT/SPROCKET ASM

$

$

Not available

21

Toro 40-0750

Bushing-Jackshaft

$

$

Not available

22

Toro 2710-6

LINK-CONNECTING

Note: Repair only

$19.99

$

Usually ships in 3-6 days

0

23

Toro 40-0700

Roller Chain

$

$

Not available

24

Toro 40-0760

Jackshaft Housing (Incl. Ref. #18)

$

$

Not available
