59147 - Toro 38" Side-Discharge Mower Deck for Model 59365 Tractor (SN: 007000001 - 007999999) (1987) STEERING WHEEL & DASH ASSEMBLY Parts Diagram

38" Side-Discharge Mower Deck for Model 59365 Tractor

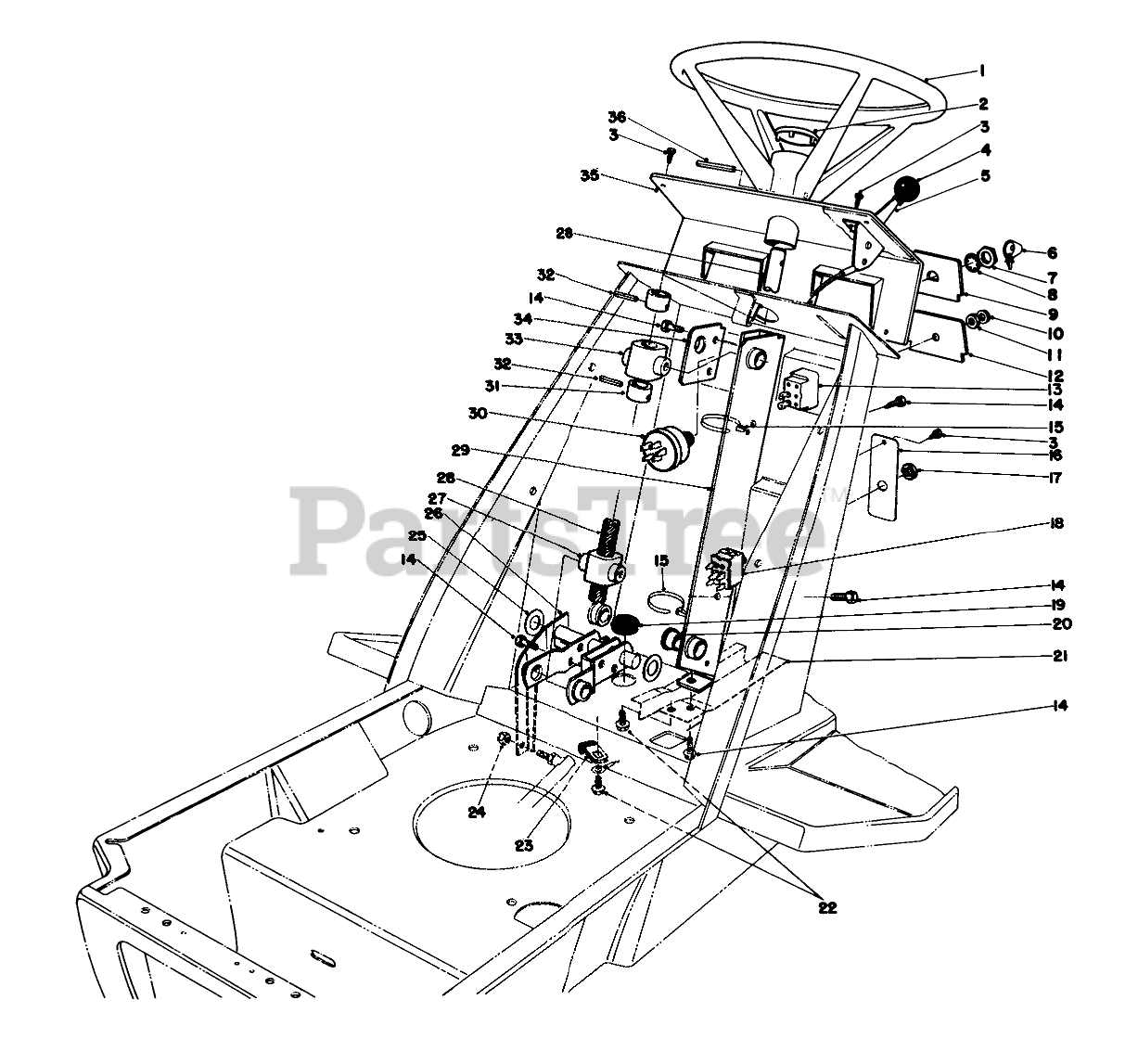

STEERING WHEEL & DASH ASSEMBLY Parts Diagram

  • Title
1

Toro 49-3240

Steering Wheel Assembly (Incl. Ref. #2)

$200.99

$

Usually ships in 3-6 days

0

2

Toro 47-2070

Cap-Steering Wheel
(Superseded to 66-6910)

$

$

Not available

3

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

4

Toro 233-25

KNOB-CONTROL

$5.49

$

In Stock, only 1 left!

0

5

Toro 38-0990

Throttle Control (Incl. Ref. #4)

$142.99

$

Usually ships in 3-6 days

0

6

Toro 218-412

Key
(Superseded to 62-7770)

$4.99

$

In Stock, only 1 left!

0

7

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

8

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

9

Toro 28-2690

DASH PANEL INSERT

$

$

Not available

10

Toro 218-497

NUT-BULB

$

$

Not available

11

Toro 218-498

NUT-LOCK

$0.99

$

In Stock, only 2 left!

0

12

Toro 28-2510

DASH PANEL INSERT

$

$

Not available

13

Toro 28-4110

Light Switch (Incl. Ref. #10 & 11)

$49.99

$

Usually ships in 3-6 days

0

14

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

15

Toro 3290-378

Cable Tie (Incl. w/Wire Harness)

$0.99

$

In Stock, Qty 8

0

16

Toro 44-5710

CLUTCH PLT SWITCH

$

$

Not available

17

Toro 218-500

NUT
(Superseded to 3218-19)

$0.99

$

Usually ships in 3-6 days

0

18

Toro 37-2610

Switch-Clutch (Incl. Ref. #17)
(Superseded to 92-6328)

$

$

Not available

19

Toro 237-100

Grommet (Incl. w/Wire Harness)

$11.99

$

Usually ships in 3-6 days

0

20

Toro 27-9080

BEARING-FLANGE

$3.99

$

In Stock, Qty 6

0

21

Toro 36-1570

WIRE HARNESS SHLD B

$

$

Not available

22

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

23

Toro 18-2970

CLIP-FUEL LINE

$9.99

$

In Stock, only 4 left!

0

24

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

25

Toro 11-6240

WASHER

$

$

Not available

26

Toro 36-3470

STEERING LINK WA BO

$

$

Not available

27

Toro 37-0140

FOLLOWER STEER SHAFT

$

$

Not available

28

Toro 38-5310

STEERING SHAFT

$

$

Not available

29

Toro 36-2040

STRG BRKT B

$

$

Not available

30

Toro 23-0660

Ignition Switch (Incl. Ref. #6-8)

$23.99

$

In Stock, only 1 left!

0

31

Toro 28-3940

STRG SHAFT COLLAR

$

$

Not available

32

Toro 32121-31

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

33

Toro 37-0150

BRG STEERING SHAFT

$

$

Not available

34

Toro 28-0390

STRG BRG SUPPORT

$

$

Not available

35

Toro 28-2460

DASH PANEL

$

$

Not available

36

Toro 32121-78

PIN-ROLL

$3.49

$

In Stock, Qty 7

0
