59147 - Toro 38" Side-Discharge Mower Deck for Model 59365 Tractor (SN: 007000001 - 007999999) (1987) CLUTCH ASSEMBLY NO. 46-0770 Parts Diagram

38" Side-Discharge Mower Deck for Model 59365 Tractor

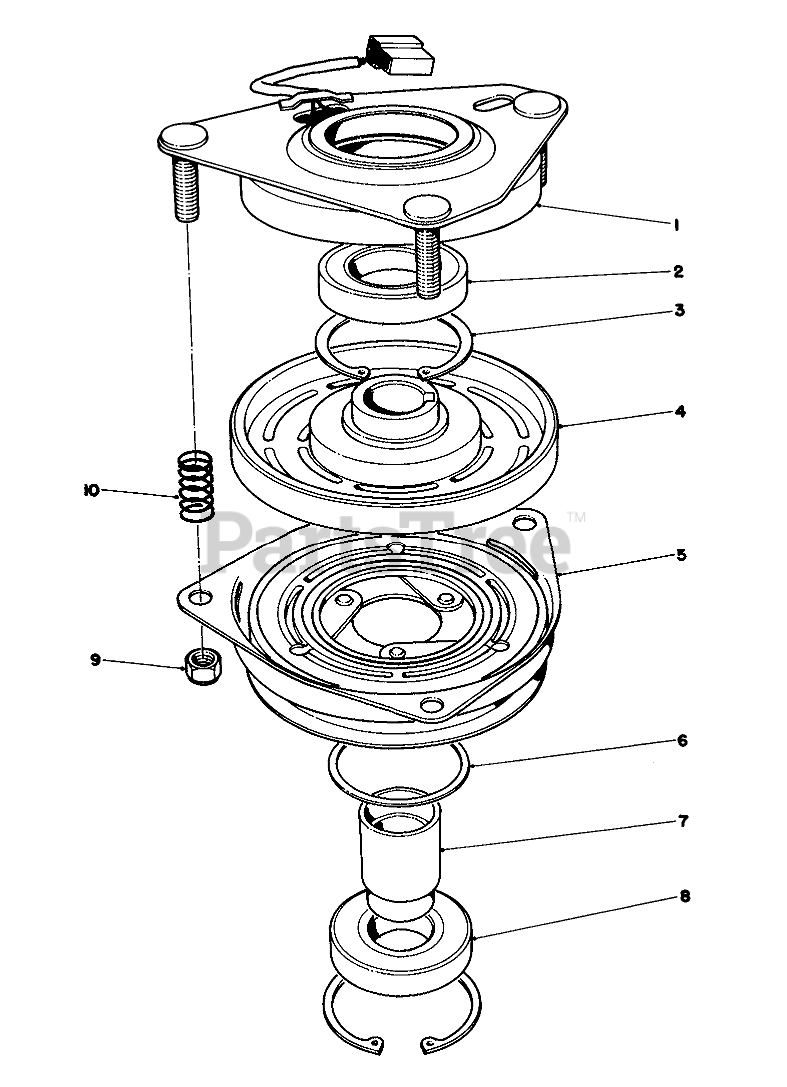

CLUTCH ASSEMBLY NO. 46-0770 Parts Diagram

  • Title
1

Toro 44-8350

Field Assembly (Incl. Ref. #2 & 3)
(Superseded to 54-0230)

$415.99

$

Usually ships in 3-6 days

0

2

Toro 251-292

BEARING-FIELD

$134.99

$

Usually ships in 3-6 days

0

3

Toro 44-8310

RING-RETAINING

$

$

Not available

4

Toro 44-8360

Field Coil, Rotor & Bearing Assembly (Incl. Ref. #1)

$669.99

$

Usually ships in 3-6 days

0

5

Toro 44-8370

Armature & Pulley Assembly (Incl. Ref. #3, 6, 7 & 8)

$

$

Not available

6

Toro 44-8330

SPACER-BEARING, PULLEY

$

$

Not available

7

Toro 44-8340

COLLAR-BEARING

$

$

Not available

8

Toro 251-291

BEARING-PULLEY
(Superseded to 251-312)

$24.99

$

Usually ships in 3-6 days

0

9

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

10

Toro 44-8320

SPRING

$9.49

$

Usually ships in 3-6 days

0
