59147 - Toro 38" Side-Discharge Mower Deck for Model 59365 Tractor (SN: 007000001 - 007999999) (1987) BRAKE & CLUTCH PEDAL ASSEMBLY Parts Diagram

38" Side-Discharge Mower Deck for Model 59365 Tractor

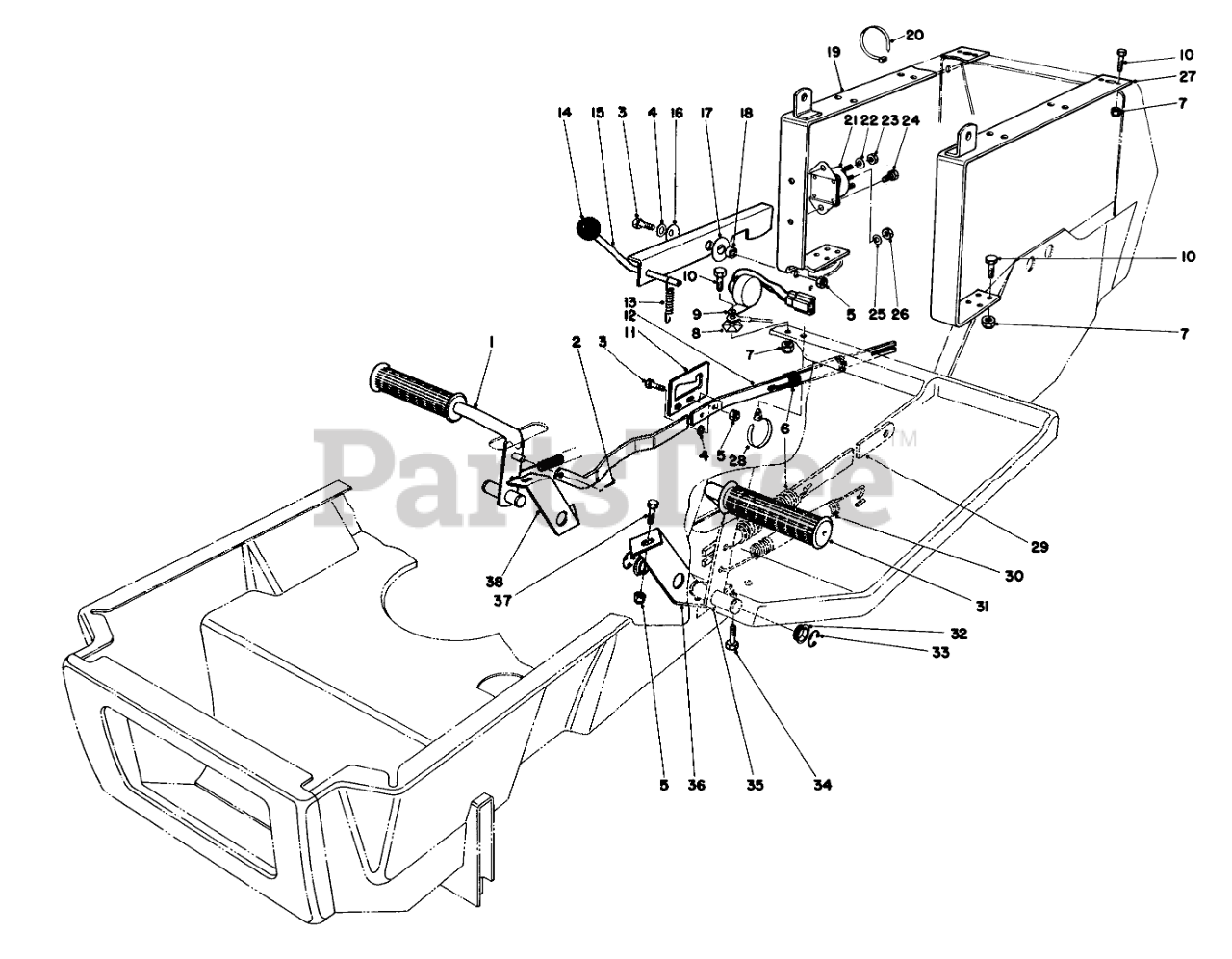

BRAKE & CLUTCH PEDAL ASSEMBLY Parts Diagram

  • Title

1

Toro 28-2530

BRAKE PEDAL WA BO

$

$

Not available

2

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

3

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

5

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Toro 27-8950

EXT SPRING O

$

$

Not available

7

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 18

0

8

Toro 3290-257

Washer

$

$

Not available

9

Toro 28-7890

Module Interlock
(Superseded to 95-0659)

$166.99

$

Usually ships in 3-6 days

0

10

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 28-9370

LATCH PLT-BRAKE ROD

$

$

Not available

12

Toro 28-9350

LINK BRAKE ROD WAB

$

$

Not available

13

Toro 8-9900

CONT ROD SPRING 0

$

$

Not available

14

Toro 233-42

KNOB

$13.99

$

In Stock, only 4 left!

0

15

Toro 28-2570

PARKING BRAKE WA B

$

$

Not available

16

Toro 3290-413

WASHER-BELLEVILLE

$5.49

$

Usually ships in 3-6 days

0

17

Toro 28-2450

WASHER-PLASTIC

$5.49

$

Usually ships in 3-6 days

0

18

Toro 28-2440

SPACER

$

$

Not available

19

Toro 38-0940

RR BODY STRAP WA B

$

$

Not available

20

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

21

Toro 28-4210

SOLENOID

$77.99

$

In Stock, only 1 left!

0

22

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

23

Toro 3218-13

NUT-JAM, BRASS

$1.49

$

Usually ships in 3-6 days

0

24

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

25

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 6

0

26

Toro 3219-14

NUT-HEX

$0.99

$

In Stock, only 1 left!

0

27

Toro 38-0950

LH RR BODY STRAP WA B

$

$

Not available

28

Toro 3290-410

TIE-MOUNT, PUSH

$

$

Not available

29

Toro 28-0430

CLUTCH ROD LINK B

$

$

Not available

30

Toro 27-8890

SPRING-EXTENSION

$47.99

$

Usually ships in 3-6 days

0

31

Toro 28-2470

FOOT PAD

$

$

Not available

32

Toro 256-258

Nyliner
(Superseded to 86-9320)

$9.49

$

Usually ships in 3-6 days

0

33

Toro 32120-19

E-RING

$2.99

$

In Stock, Qty 14

0

34

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

35

Toro 28-2520

CLUTCH PEDAL WA BO

$

$

Not available

36

Toro 28-0420

LH PEDAL SUPT B

$

$

Not available

37

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 16

0

38

Toro 28-0410

RH PEDAL SUPT B

$

$

Not available
