59145 - Toro 12 Volt Electric Trimmer for Rider (SN: 000000001 - 000999999) (1980) MOTOR AND HOUSING ASSEMBLY Parts Diagram

12 Volt Electric Trimmer for Rider

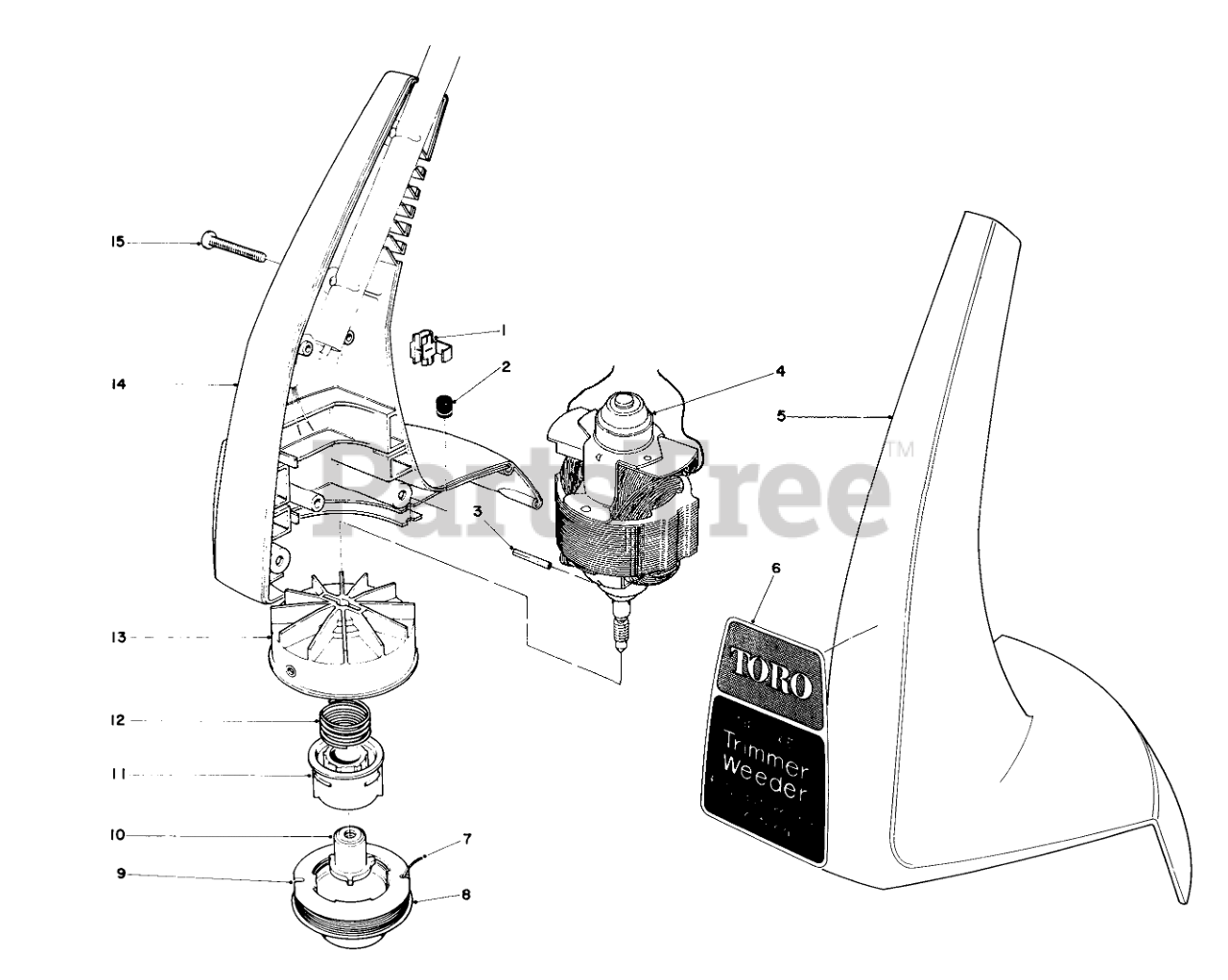

MOTOR AND HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 218-496

CONNECTOR WIRE JOINT

$

$

Not available

2

Toro 33-8710

GROMMET

$

$

Not available

3

Toro 32121-88

COIL PIN

$8.49

$

In Stock, only 2 left!

0

4

Toro 41-6730

12 Volt D.C. Motor

$

$

Not available

5

Toro 33-8530

Housing L.H.

$

$

Not available

6

Toro 41-6610

Decal-Deluxe Trimmer

$

$

Not available

7

Toro 29-8250

50-, .040" Dia.Cutting Line in Coil
(Superseded to 88002)

$6.49

$

Usually ships in 3-6 days

0

8

Toro 29-8240

Prewound Spool
(Superseded to 88004)

$

$

Not available

9

Toro 29-8110

SPOOL CAP

$

$

Not available

10

Toro 29-8130

Driver
(Superseded to 34-9100)

$21.99

$

In Stock, only 3 left!

0

11

Toro 29-8120

CORE - SPOOL

$34.99

$

Usually ships in 3-6 days

0

12

Toro 29-8230

SPRING-COMPRESSION

$10.99

$

In Stock, only 2 left!

0

13

Toro 33-8680

FAN HUB ASM

$

$

Not available

14

Toro 33-8630

Housing R.H.

$

$

Not available

15

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

Toro 41-6760

Loose Parts

Note: Not illustrated

$

$

Currently unavailable
