59138 - Toro 36" Snow Thrower (SN: 000000001 - 000999999) (1980) AUGER ASSEMBLY Parts Diagram

36" Snow Thrower

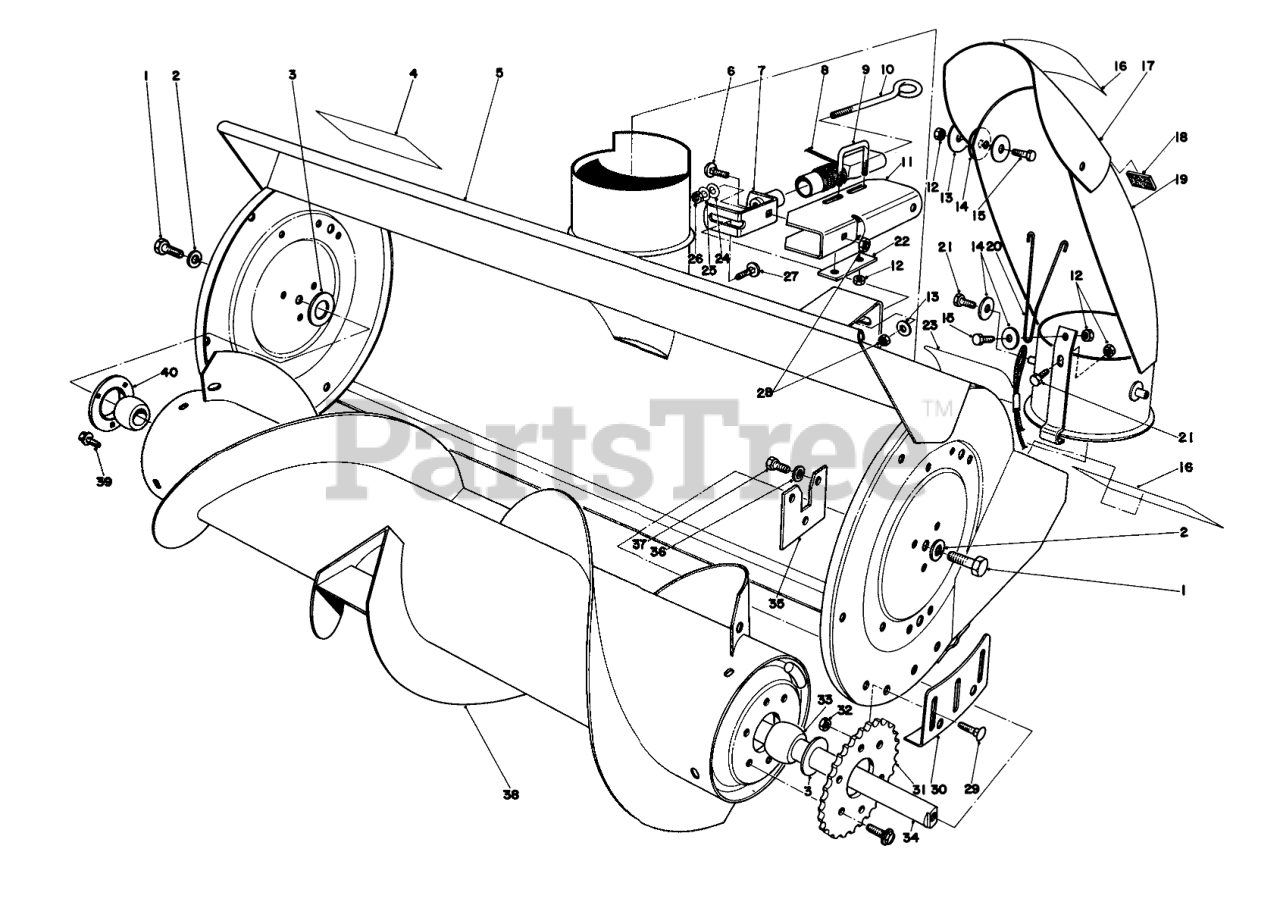

AUGER ASSEMBLY Parts Diagram

  • Title

1

Toro 325-5

SCREW-HH

$1.49

$

In Stock, Qty 6

0

2

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

3

Toro 40-0780

Spring

$

$

Not available

4

Toro 27-4600

DECAL

$

$

Not available

5

Toro 40-1400

Header (Incl. Ref. #16 & 23)

$

$

Not available

6

Toro 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

7

Toro 40-1170

Bracket & Tube

$

$

Not available

8

Toro 40-1180

Cable & Tube

$

$

Not available

9

Toro 40-1160

U-Bolt

$

$

Not available

10

Toro 40-1150

Eye Bolt

$

$

Not available

11

Toro 40-1190

Shroud-Stack Drive

$

$

Not available

12

Toro 32153-4

NUT-HEX, SIDE DEFORM

$0.99

$

Usually ships in 3-6 days

0

13

Toro 3-6916

WASHER

$

$

Not available

14

Toro 40-1130

Washer

$

$

Not available

15

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Toro 29-6350

Decal-Warning
(Superseded to 54-9910)

$

$

Not available

17

Toro 40-1060

Deflector (Incl. Ref. #16)

$

$

Not available

18

Toro 40-1050

Molding-Deflector

$

$

Not available

19

Toro 40-1070

Deflector Elbow

$

$

Not available

20

Toro 40-1040

Hook-Lift Spring

$

$

Not available

21

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

22

Toro 40-1140

Strap-Friction

$

$

Not available

23

Toro 29-6380

CAUTION DECAL

$17.99

$

Usually ships in 3-6 days

0

24

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

25

Toro 40-1120

Spring Washer

$

$

Not available

26

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

27

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 18

0

28

Toro 32149-10

NUT-KEPS

$3.49

$

Usually ships in 3-6 days

0

29

Toro 3-5861

Bolt
(Superseded to 3230-23)

$1.49

$

In Stock, Qty 20+

0

30

Toro 40-0870

Skidshoe

$

$

Not available

31

Toro 40-0840

Sprocket-Auger Drive

$

$

Not available

32

Toro 32149-1

NUT-KEPS

$5.99

$

In Stock, Qty 9

0

33

Toro 40-0790

AUGER SHAFT BRG

$

$

Not available

34

Toro 40-0810

Shaft-Auger

$

$

Not available

35

Toro 40-0820

Plate-Auger Mounting

$

$

Not available

36

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

37

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

38

Toro 40-0850

Auger Assembly

$

$

Not available

39

Toro 32104-58

Screw-Cap Hex. Hd.
(Superseded to 32144-58)

$

$

Not available

40

Toro 40-0800

Flangette

$

$

Not available

Toro 40-0690

Exhaust Pipe Extension

Note: Not illustrated

$

$

Not available

Toro 32140-42

1/4-20X1/2 THDG SEMS

Note: Not illustrated

$

$

Not available

Toro 40-0830

Scraper Blade

Note: Optional equipment

$

$

Not available

Toro 3229-22

SCREW-CARRIAGE
(Superseded to 3229-11)

Note: Optional equipment

$1.49

$

In Stock, Qty 20+

0

Toro 32149-2

NUT-KEPS

Note: Optional equipment

$2.99

$

In Stock, Qty 20+

0
