59130 - Toro 32" Side-Discharge Mower Deck (SN: 001000001 - 001999999) (1981) 32" CUTTING DECK Parts Diagram

32" Side-Discharge Mower Deck

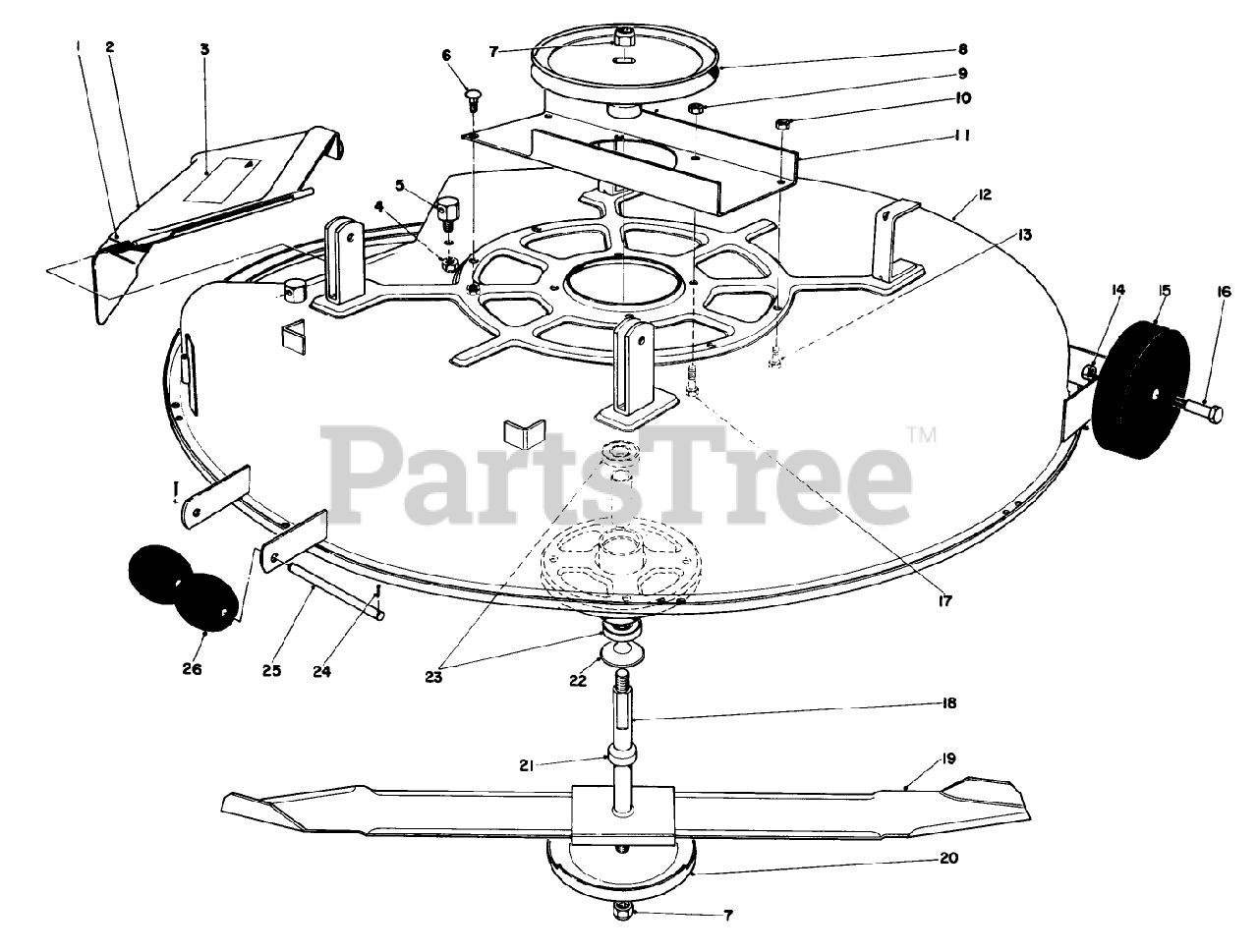

32" CUTTING DECK Parts Diagram

  • Title

1

Toro 28-8010

SPRING

$24.99

$

Usually ships in 3-6 days

0

2

Toro 28-8190

Deflector Assembly (Incl. Ref. #3)

$

$

Not available

3

Toro 12-2890

Decal
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

4

Toro 32153-2

NUT-LOCK, SIDE
(Superseded to 603773)

$2.99

$

In Stock, Qty 20+

0

5

Toro 28-7350

POST-PIVOT

$38.99

$

Usually ships in 3-6 days

0

6

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

7

Toro 17-0980

Nut

$11.99

$

In Stock, only 4 left!

0

8

Toro 28-8000

PULLEY(BLADE DRIVE)

$

$

Not available

9

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

10

Toro 321534

Nut

$

$

Currently unavailable

11

Toro 36-1290

REINFORCEMENT CHANNEL

$

$

Not available

12

Toro 39-5790

Cutter Deck

$

$

Not available

13

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

15

Toro 29-6010

DECK WHEEL

$

$

Not available

16

Toro 3-2652

Bolt

$

$

Not available

17

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 284280

Spindle Assembly (Incl. Ref. #21-23)

$

$

Currently unavailable

19

Toro 334750

Blade

$

$

Currently unavailable

20

Toro 7-3522

Cup
(Superseded to 92-6313)

$53.99

$

In Stock, only 1 left!

0

21

Toro 38-3180

SPACER

$

$

Not available

22

Toro 38-0470

DUST COVER

$

$

Not available

23

Toro 37-0200

BEARING

$

$

Not available

24

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

25

Toro 7-0277

ROLLER SHAFT

$

$

Not available

26

Toro 294820

Roller

$

$

Currently unavailable
