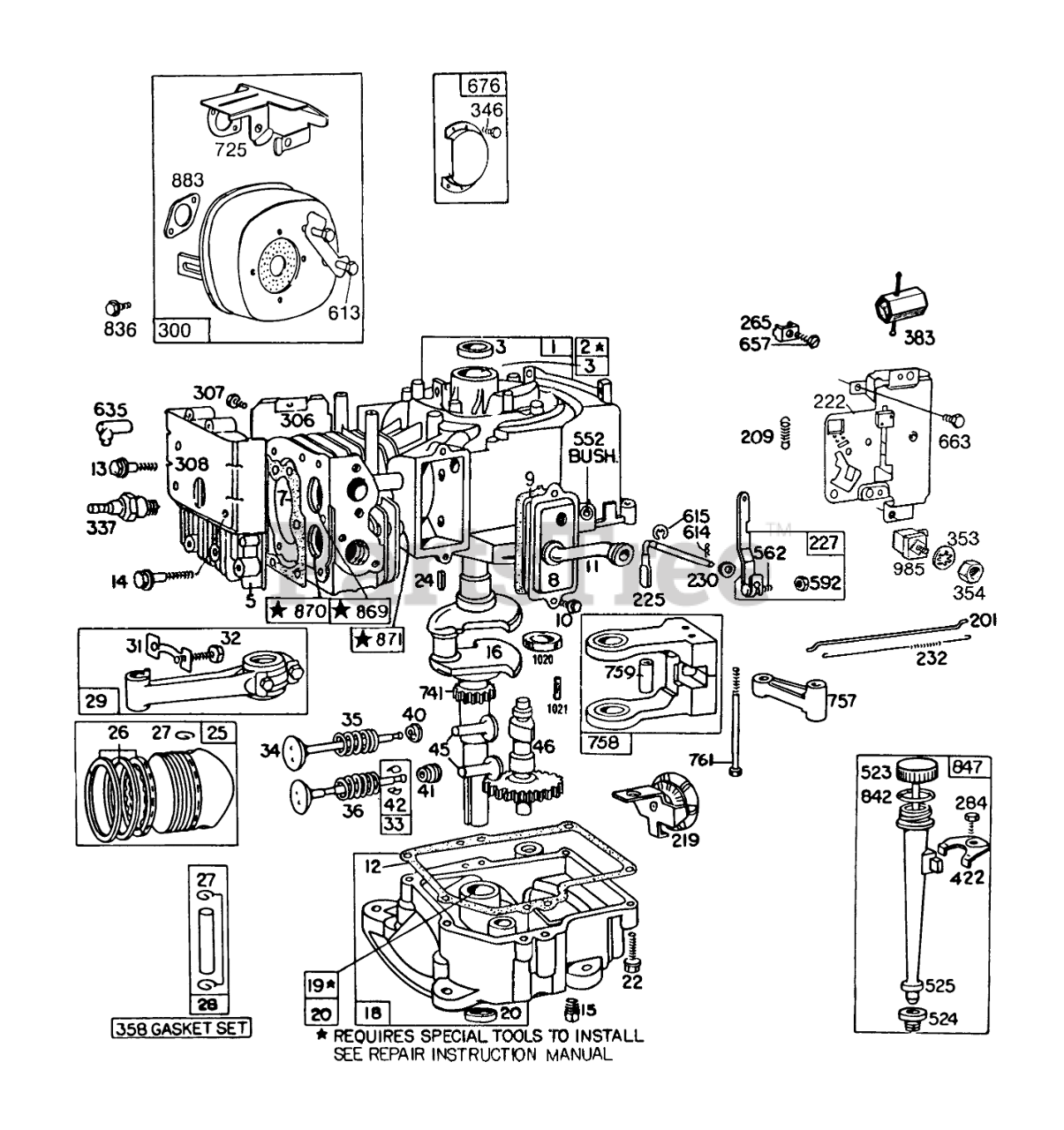

59111 - Toro Easy Empty Grass Catcher (SN: 007000001 - 007999999) (1987) ENGINE BRIGGS & STRATTON MODEL NO. 191707-2161-01 8 H.P. REAR ENGINE RIDER ELECTRIC MODEL 56145 Parts Diagram

Easy Empty Grass Catcher

ENGINE BRIGGS & STRATTON MODEL NO. 191707-2161-01 8 H.P. REAR ENGINE RIDER ELECTRIC MODEL 56145 Parts Diagram

  • Title

1

Briggs & Stratton 396269

Assembly-Cylinder

$

$

Not available

2

Briggs & Stratton 261960

Bushing-Cylinder
(Superseded to 790179)

$4.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 294606

Seal-Oil
(Superseded to 294606S)

$9.49

$

In Stock, Qty 11

0

5

Briggs & Stratton 212286

Head-Cylinder
(Superseded to 691715)

$95.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 270430

Gasket-Cylinder Hd.
(Superseded to 272163S)

$7.99

$

In Stock, Qty 20+

0

8

Briggs & Stratton 299848

Breather Assembly
(Superseded to 495737)

$

$

Not available

9

Briggs & Stratton 27803

Gasket-Breather
(Superseded to 27803S)

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 93394

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 280005

Grommet
(Superseded to 692293)

$10.99

$

In Stock, Qty 6

0

12

Briggs & Stratton 27750

Gasket-Crankcase Cover 1/64" Thick
(Superseded to 692221)

$8.99

$

In Stock, Qty 7

0

Briggs & Stratton 27876

Gasket-Crankcase (.005" Thick)

$

$

Not available

Briggs & Stratton 27877

33154A,55A,60A W/FO

$10.99

$

In Stock, only 3 left!

0

13

Briggs & Stratton 93211

Screw-Cylinder Head
(Superseded to 592244)

$3.49

$

In Stock, Qty 20+

0

14

Briggs & Stratton 93723

Screw-Cylinder Head
(Superseded to 690904)

$11.99

$

In Stock, only 4 left!

0

15

Briggs & Stratton 91084

Plug-Pipe
(Superseded to 690946)

$5.99

$

In Stock, Qty 14

0

16

Briggs & Stratton 396876

Crankshaft

$225.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 392548

Base-Oil

$110.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 295963

Bushing

$

$

Not available

20

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

$6.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 93585

Screw-Sem
(Superseded to 691103)

$3.99

$

In Stock, only 4 left!

0

24

Briggs & Stratton 222698

Key
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 391673

Piston Assy.-Std.
(Superseded to 499907)

$

$

Not available

Briggs & Stratton 391674

Piston Assy.-.010" OS.

$

$

Not available

Briggs & Stratton 391675

Piston Assy.-.020" OS.
(Superseded to 499909)

$149.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 391676

Piston Assembly

$

$

Not available

26

Briggs & Stratton 391669

Ring & Piston-Std.
(Superseded to 499921)

$47.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 391670

Ring Set (.010" O.S.)

$18.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 391671

Ring Set (.020" O.S.)
(Superseded to 690019)

$59.99

$

In Stock, only 1 left!

0

Briggs & Stratton 391672

Ring Set (.030" O.S.)

$

$

Not available

27

Briggs & Stratton 68546

Lock-Piston Pin
(Superseded to 691073)

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 295840

Assembly-Piston-Std
(Superseded to 499302)

$15.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 295841

Pin-Piston (.005" O.S.)

$6.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 390402

Rod-Connecting

$84.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 222114

Lock-Conn. Rod Screw

$

$

Not available

32

Briggs & Stratton 92659

Screw Conn. Rod
(Superseded to 690352)

$6.99

$

In Stock, only 3 left!

0

33

Briggs & Stratton 390419

Valve-Exhaust
(Superseded to 691794)

$

$

Not available

34

Briggs & Stratton 261055

VaIve-Intake
(Superseded to 261055S)

$32.99

$

In Stock, only 2 left!

0

35

Briggs & Stratton 65906

Spring-Valve
(Superseded to 691605)

$6.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 26828

Spring-Valve
(Superseded to 691597)

$10.99

$

In Stock, only 4 left!

0

40

Briggs & Stratton 221596

Retainer-Valve
(Superseded to 690656)

$

$

Not available

41

Briggs & Stratton 292260

Retainer-Valve
(Superseded to 691939)

$27.99

$

In Stock, Qty 5

0

42

Briggs & Stratton 93630

Retainer-Rotocoil
(Superseded to 494553)

$7.99

$

In Stock, only 2 left!

0

45

Briggs & Stratton 260933

Tappet-Valve
(Superseded to 691793)

$6.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 211689

Gear-Cam
(Superseded to 691167)

$

$

Not available

201

Briggs & Stratton 261611

Link-Governor

$20.99

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 260871

Spring-Governor
(Superseded to 792602)

$3.49

$

In Stock, only 2 left!

0

219

Briggs & Stratton 392718

Oil Slinger, Gov. Gear & Bracket Assembly
(Superseded to 691980)

$

$

Not available

222

Briggs & Stratton 390784

Plate-Gov. Control
(Superseded to 491594)

$

$

Not available

225

Briggs & Stratton 231058

Crank-Governor
(Superseded to 692012)

$13.99

$

In Stock, only 2 left!

0

227

Briggs & Stratton 391733

Lever Assy.-Governor
(Superseded to 692942)

$19.99

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 222450

Washer
(Superseded to 691691)

$3.99

$

In Stock, Qty 5

0

232

Briggs & Stratton 261911

Spring-Governor Link

$

$

Not available

265

Briggs & Stratton 221535

Clamp-Casing
(Superseded to 691024)

$3.99

$

In Stock, Qty 7

0

284

Briggs & Stratton 93804

Screw
(Superseded to 690664)

$5.49

$

In Stock, only 1 left!

0

300

Briggs & Stratton 398507

Muffler-Exhaust
(Superseded to 691971)

$74.99

$

In Stock, only 1 left!

0

306

Briggs & Stratton 222830

Shield-Cylinder
(Superseded to 496797)

$19.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 93163

Screw
(Superseded to 691003)

$3.49

$

In Stock, Qty 9

0

308

Briggs & Stratton 222636

Cover-Cylinder Head
(Superseded to 691201)

$7.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 293918

Plug-Spark
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

346

Briggs & Stratton 93705

Screw
(Superseded to 690661)

$3.49

$

In Stock, Qty 9

0

353

Briggs & Stratton 92791

Washer-Lock
(Superseded to 691077)

$3.49

$

In Stock, only 2 left!

0

354

Briggs & Stratton 90576

Nut
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

358

Briggs & Stratton 299577

Gasket Set

$35.99

$

In Stock, Qty 11

0

383

Briggs & Stratton 89838

Wrench-Plug, Spark
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

422

Briggs & Stratton 222502

Clamp-Oil Filler Tube
(Superseded to 690593)

$11.99

$

In Stock, only 1 left!

0

523

Briggs & Stratton 391840

Cap with Dipstick
(Superseded to 691387)

$16.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 68838

Seal-Fill Tube
(Superseded to 281370S)

$8.49

$

In Stock, Qty 20+

0

525

Briggs & Stratton 280133

Tube-Oil Fill
(Superseded to 692963)

$

$

Not available

552

Briggs & Stratton 231055

Bushing-Gov. Crank
(Superseded to 491986)

$

$

Not available

562

Briggs & Stratton 92613

Bolt

$

$

Not available

592

Briggs & Stratton 231082

Nut (Governor Control Lever)
(Superseded to 691251)

$3.49

$

In Stock, Qty 9

0

613

Briggs & Stratton 94042

Screw-Muffler
(Superseded to 691632)

$8.49

$

In Stock, only 2 left!

0

614

Briggs & Stratton 93306

Pin-Cotter
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

615

Briggs & Stratton 93307

Retainer-Ring

$5.99

$

In Stock, only 3 left!

0

635

Briggs & Stratton 66538

Boot-Plug, Spark
(Superseded to 66538S)

$3.99

$

In Stock, Qty 12

0

657

Briggs & Stratton 93496

Screw
(Superseded to 690804)

$

$

Not available

663

Briggs & Stratton 93572

Screw
(Superseded to 690664)

$5.49

$

In Stock, only 1 left!

0

676

Briggs & Stratton 395700

Deflector-Exhaust

$15.99

$

In Stock, only 1 left!

0

725

Briggs & Stratton 223540

Shield-Muffler
(Superseded to 690431)

$23.99

$

In Stock, only 1 left!

0

741

Briggs & Stratton 261195

Gear-Timing

$17.99

$

Usually ships in 2-12 days

0

757

Briggs & Stratton 212359

Link-Counterweight
(Superseded to 691714)

$

$

Not available

758

Briggs & Stratton 390172

Counterweight
(Superseded to 690619)

$49.99

$

Usually ships in 2-12 days

0

759

Briggs & Stratton 298909

Pin Ass-y-Piston

$8.99

$

In Stock, only 2 left!

0

761

Briggs & Stratton 93874

Screw-Counterweight
(Superseded to 690346)

$7.49

$

Usually ships in 2-12 days

0

836

Briggs & Stratton 93559

Screw
(Superseded to 690810)

$3.49

$

In Stock, only 3 left!

0

842

Briggs & Stratton 270920

O-Ring
(Superseded to 691870)

$4.49

$

Usually ships in 2-12 days

0

847

Briggs & Stratton 392066

Fill Group-Oil

$

$

Not available

869

Briggs & Stratton 211661

Seat-Ex. Valve
(Superseded to 691844)

$18.99

$

In Stock, only 1 left!

0

870

Briggs & Stratton 211661

Seat-Ex. Valve
(Superseded to 691844)

$18.99

$

In Stock, only 1 left!

0

871

Briggs & Stratton 231218

Guide-Valve

$14.99

$

In Stock, Qty 7

0

883

Briggs & Stratton 270918

Gasket-Exhaust
(Superseded to 692237)

$5.49

$

In Stock, only 3 left!

0

985

Briggs & Stratton 398525

Insulator
(Superseded to 691972)

$8.49

$

In Stock, only 3 left!

0

1020

Briggs & Stratton 261190

Eccentric
(Superseded to 691268)

$11.99

$

Usually ships in 2-12 days

0

1021

Briggs & Stratton 94160

Pin-Ecentric
(Superseded to 691679)

$4.49

$

Usually ships in 2-12 days

0
