591 - Shindaiwa Chainsaw (SN: C69115001001 - C69115999999) FUEL SYSTEM Parts Diagram

Chainsaw

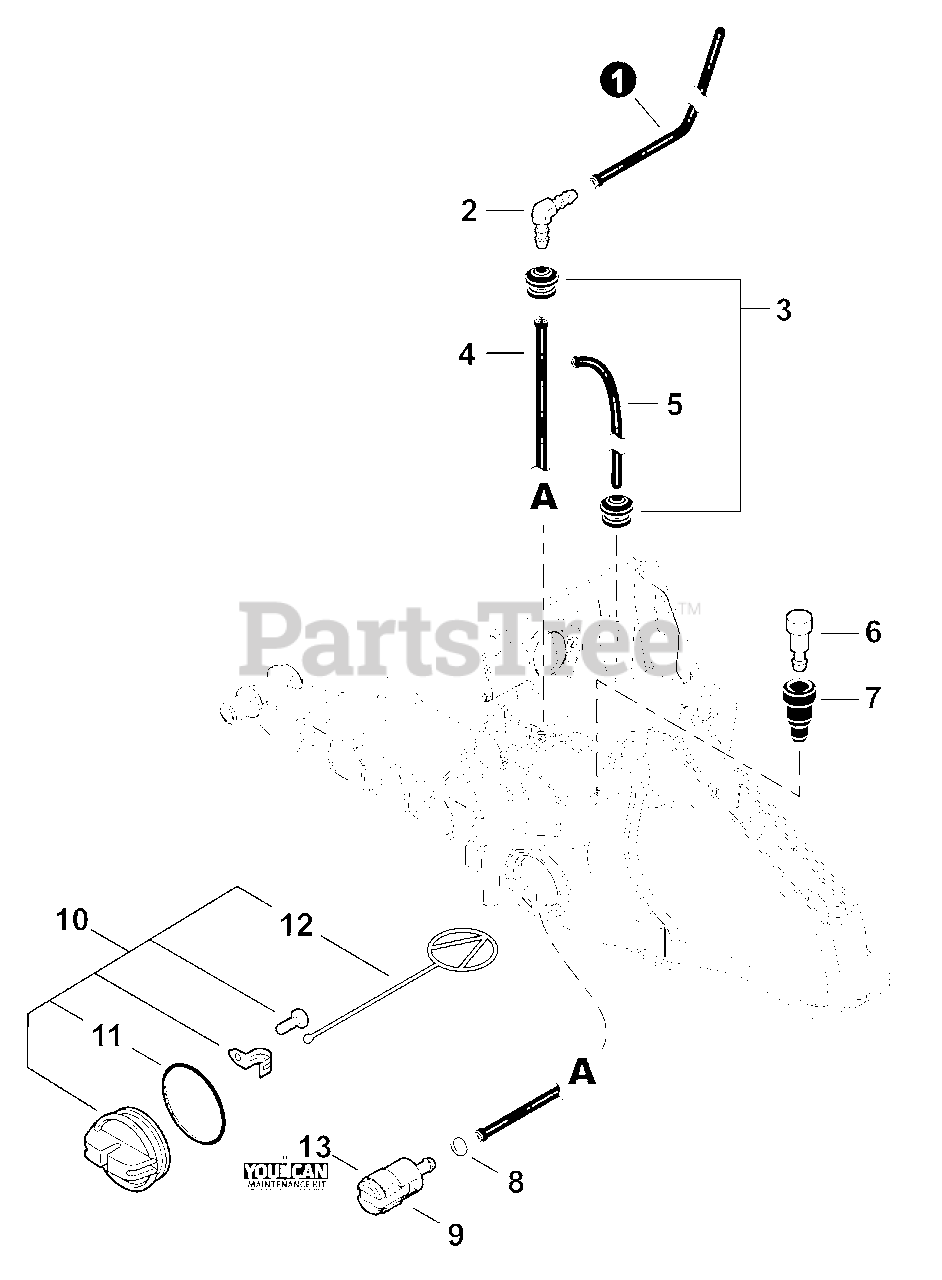

FUEL SYSTEM Parts Diagram

  • Title
1

Echo V471003860

PIPE, FUEL 3×6×135
(Superseded to V471003861)

$4.99

$

In Stock, only 1 left!

0

2

Echo V186000500

CONNECTOR, PIPE

$0.99

$

In Stock, Qty 15

0

3

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.49

$

In Stock, Qty 19

0

4

Echo V471000600

PIPE, FUEL 3×5×120 BLACK
(Superseded to V471000601)

$0.99

$

In Stock, only 2 left!

0

5

Echo 13011030830

PIPE, IMPULSE 3×6(8)×160
(Superseded to 13011030831)

$2.99

$

In Stock, only 2 left!

0

6

Echo 13130056431

VENT ASSY

$7.49

$

In Stock, Qty 11

0

7

Echo A359000000

GROMMET, VENT
(Superseded to A359000001)

$7.49

$

In Stock, only 1 left!

0

8

$0.99

$

Usually ships in 2-4 days

0

9

Echo A369000460

FILTER, FUEL

$9.49

$

In Stock, Qty 20+

0

10

Echo P021016771

CAP ASSY, FUEL

Note: Includes Items 11-12

$8.49

$

Usually ships in 2-4 days

0

11

Echo V581000600

O-RING 29

$2.49

$

In Stock, only 2 left!

0

12

Echo 13105119830

CONNECTOR, CAP L= 60 MM
(Superseded to A365000050)

$2.49

$

In Stock, Qty 20+

0

13

Echo 84022Y

TUNE-UP KIT - YOUCAN™

$31.99

$

Usually ships in 2-4 days

0
