591 - Shindaiwa Chainsaw (SN: C36112001001 - C36112999999) ENGINE, ENGINE COVER Parts Diagram

Chainsaw

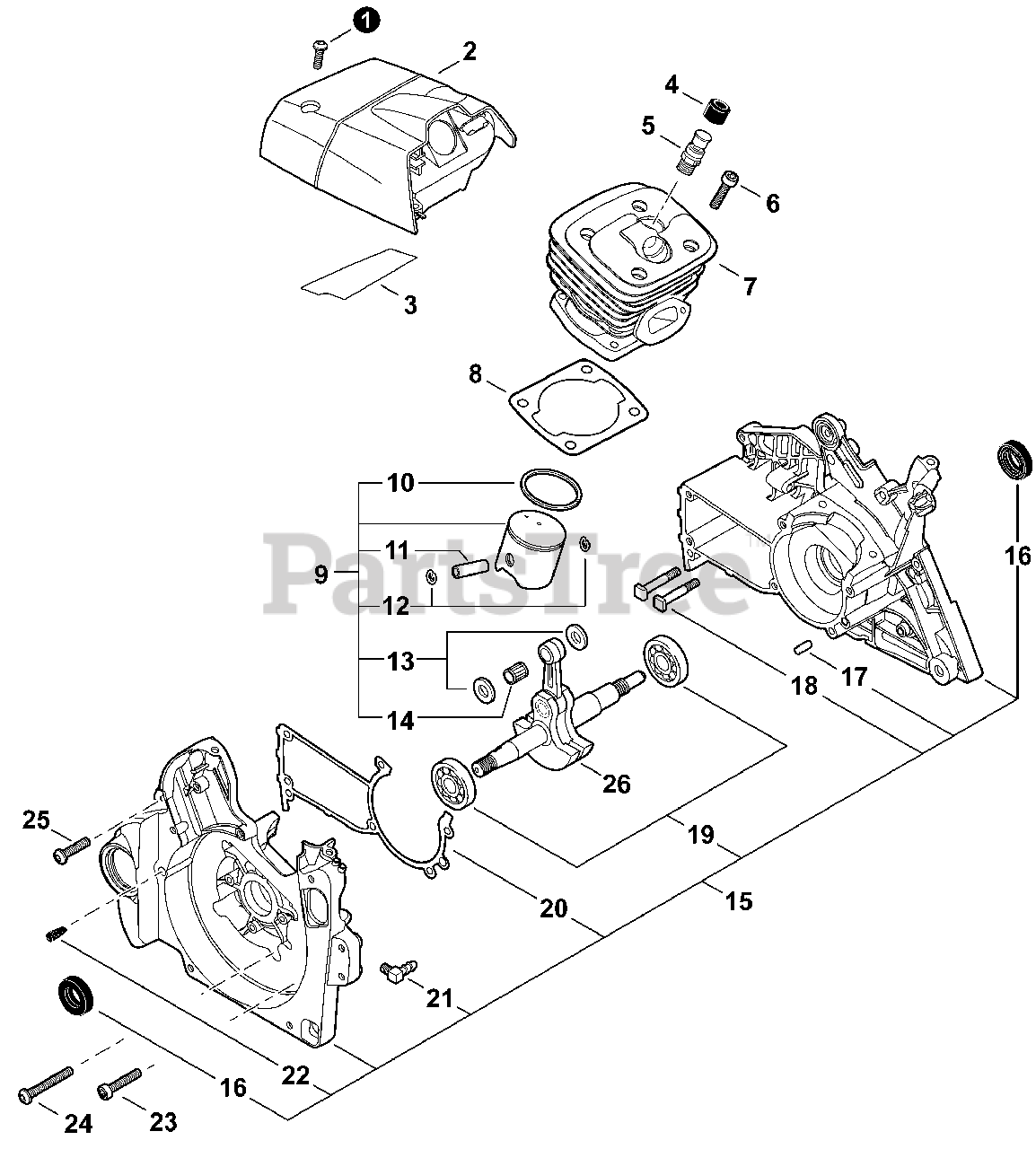

ENGINE, ENGINE COVER Parts Diagram

  • Title
1

Echo V805000000

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

2

Echo A160001181

COVER, ENGINE

$11.99

$

Usually ships in 2-4 days

0

3

Echo V341000140

SHIELD, HEAT 75×32×0.15

$2.99

$

In Stock, only 1 left!

0

4

Echo V141000090

COVER, DUST

$5.49

$

In Stock, only 1 left!

0

5

Echo A014000040

VALVE ASSY, DECOMPRESSION
(Superseded to A014000110)

$46.99

$

In Stock, only 1 left!

0

6

Echo V805000220

BOLT, TORX 5×25

$1.49

$

In Stock, only 3 left!

0

7

Echo A130002041

CYLINDER

$163.99

$

In Stock, only 1 left!

0

8

Echo V100000270

GASKET, CYLINDER

$3.49

$

In Stock, Qty 7

0

9

Echo P021038790

PISTON KIT

Note: Includes ITEMS 10-14

$81.99

$

In Stock, only 3 left!

0

10

Echo A101000210

RING, PISTON

$8.49

$

In Stock, only 2 left!

0

11

Echo V609000010

PIN, PISTON 7×11×37.6

$5.99

$

Usually ships in 2-4 days

0

12

Echo V580000030

RING, SNAP Ø11

$0.99

$

Usually ships in 2-4 days

0

13

Echo V308000040

WASHER, THRUST 11.2×19.5×0.5

$3.49

$

In Stock, only 1 left!

0

14

Echo V556000000

BEARING, NEEDLE 11

$13.99

$

Usually ships in 2-4 days

0

15

Echo P021050070

CRANKCASE KIT

Note: Includes ITEMS 16-22

$196.99

$

Usually ships in 2-4 days

0

16

Echo V508000100

SEAL, OIL 15

$5.49

$

In Stock, Qty 7

0

17

Echo 90033050100

PIN, LOCATING 5×10

$0.99

$

Usually ships in 2-4 days

0

18

Echo V205000401

BOLT, STUD M8×1.25×34.5
(Superseded to 43301119831)

$2.99

$

In Stock, only 2 left!

0

19

Echo 9403646202

BEARING, BALL 6202

$9.99

$

Usually ships in 2-4 days

0

20

Echo V102000060

GASKET, CRANKCASE

$4.99

$

In Stock, Qty 8

0

21

Echo 43723914730

CONNECTOR, PIPE

$7.99

$

Usually ships in 2-4 days

0

22

Echo 43611413930

VENT ASSY

$6.49

$

In Stock, only 1 left!

0

23

Echo V805000170

BOLT, TORX 5×25

$0.99

$

Usually ships in 2-4 days

0

24

Echo V805000020

BOLT, TORX 5×35
(Superseded to Discontinued)

$

$

Not available

25

Echo V805000010

BOLT, TORX 5×20

$0.99

$

Usually ships in 2-4 days

0

26

Echo A011001270

CRANKSHAFT ASSY

$237.99

$

Usually ships in 2-4 days

0
