59068 - Toro Seeder Spreader (SN: 002000001 - 002999999) (1972) SEEDER - SPREADER Parts Diagram

Seeder Spreader

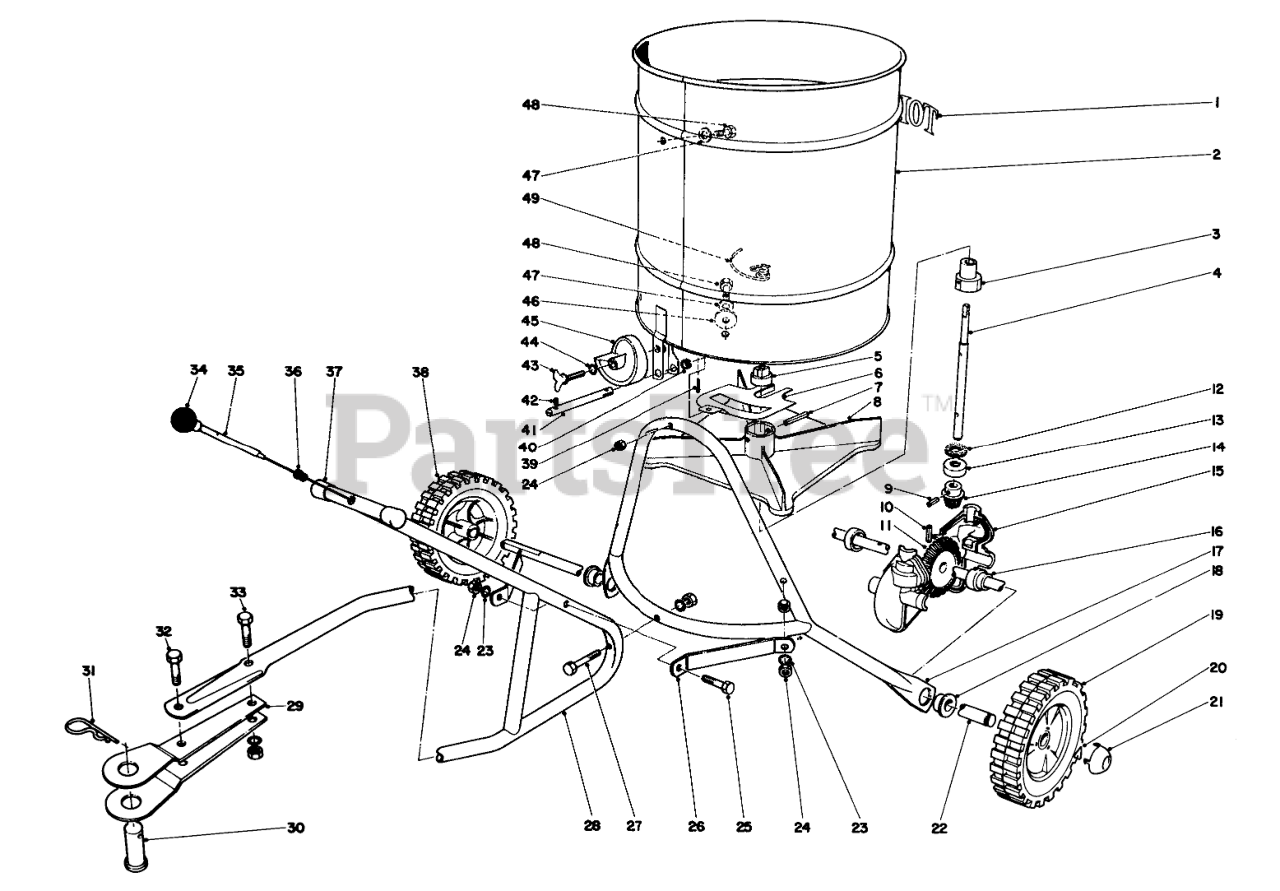

SEEDER - SPREADER Parts Diagram

  • Title

1

Toro 17-3790

Decal

$

$

Currently unavailable

2

Toro 17-3370

Hopper

$

$

Currently unavailable

3

Toro 17-3480

Nylon cam

$

$

Currently unavailable

4

Toro 17-3390

Fan shaft

$

$

Currently unavailable

5

Toro 17-3470

Bearing

$

$

Currently unavailable

6

Toro 17-3400

Discharge plate

$

$

Currently unavailable

7

Toro 32121-29

1/8 X 1-3/8 ROLL PIN

$

$

Not available

8

Toro 17-3590

Fan

$

$

Currently unavailable

9

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

10

Toro 32121-45

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

11

Toro 17-3440

Gear, axle

$

$

Currently unavailable

12

Toro 17-3630

Felt washer

$

$

Currently unavailable

13

Toro 17-3610

Cap

$

$

Currently unavailable

14

Toro 17-3450

Pinion

$

$

Currently unavailable

15

Toro 17-3600

Gear case

$

$

Currently unavailable

16

Toro 17-3620

Slotted cap

$

$

Currently unavailable

17

Toro 17-3460

Frame

$

$

Currently unavailable

18

Toro 17-3490

Axle bearing

$

$

Currently unavailable

19

Toro 17-3560

Wheel

$

$

Currently unavailable

20

Toro 17-3540

Retainer, wheel

$

$

Currently unavailable

21

Toro 17-3570

Hub cap

$

$

Currently unavailable

22

Toro 17-3380

Axle shaft

$

$

Currently unavailable

23

Toro 3254-2

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

24

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

25

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

26

Toro 17-3580

Axle

$

$

Currently unavailable

27

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

28

Toro 17-3690

Tow bar

$

$

Currently unavailable

29

Toro 17-3680

Hitch plate

$

$

Currently unavailable

30

Toro 17-3670

Pin
(Superseded to 283-8)

$1.49

$

In Stock, Qty 5

0

31

Toro 3290-322

PIN-HAIR

$1.49

$

Usually ships in 3-6 days

0

32

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

33

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

34

Toro 17-3500

Knob

$

$

Currently unavailable

35

Toro 17-3650

Control wire

$

$

Currently unavailable

36

Toro 17-3660

Spring

$

$

Currently unavailable

37

Toro 17-3640

Plastic caps

$

$

Currently unavailable

38

Toro 17-3550

Drive wheel

$

$

Currently unavailable

39

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

40

Toro 17-3430

Bearing

$

$

Currently unavailable

41

Toro 17-3410

Rate control rod

$

$

Currently unavailable

42

Toro 17-3510

Set screw

$

$

Currently unavailable

43

Toro 17-3520

Special bolt

$

$

Currently unavailable

44

Toro 3254-8

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

45

Toro 17-3420

Dial indicator

$

$

Currently unavailable

46

Toro 3-1478

Washer
(Superseded to 5-4460)

$7.99

$

In Stock, Qty 20+

0

47

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

48

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

49

Toro 17-3530

Agitator

$

$

Not available
