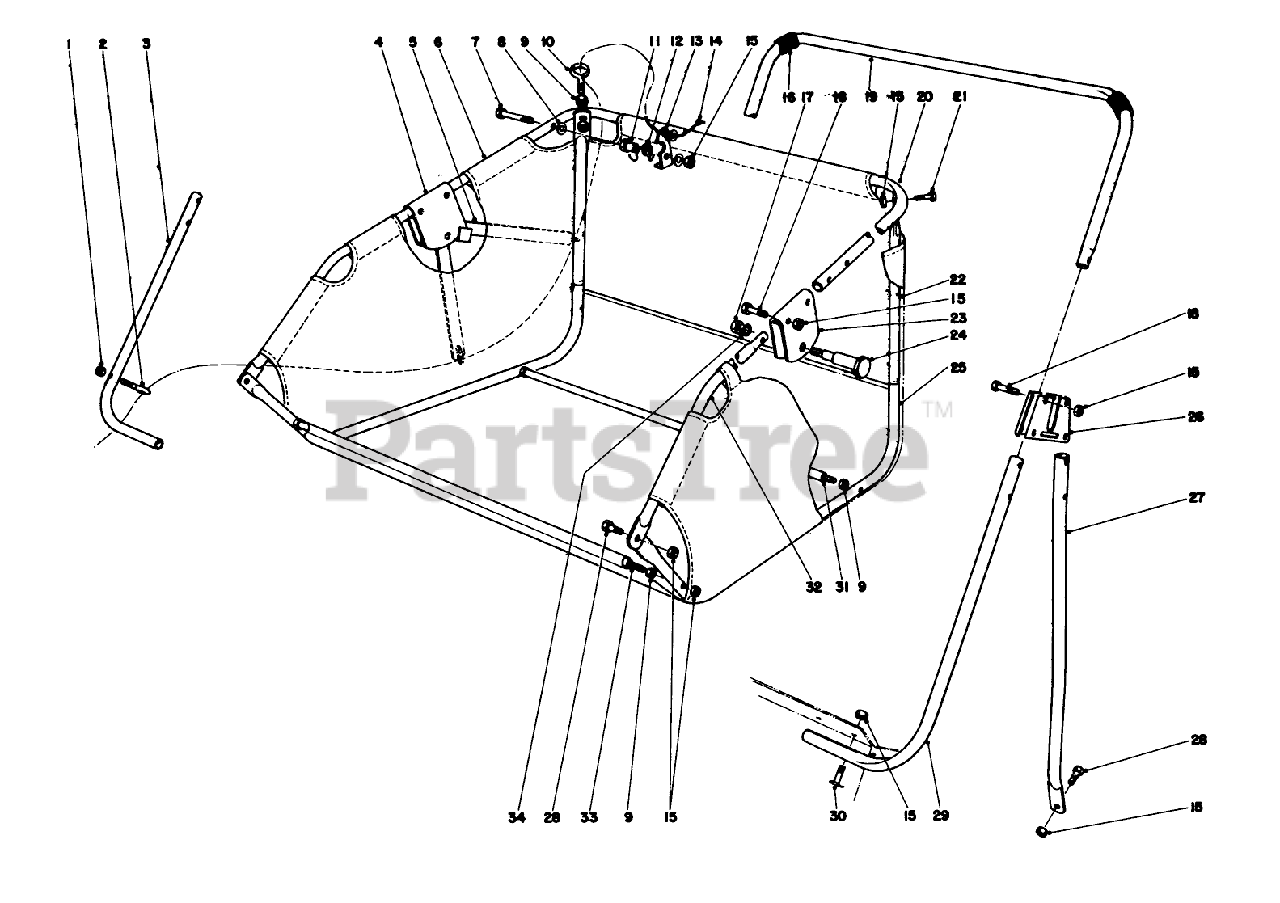

59066 - Toro 31" Trailer Sweeper (SN: 002000001 - 002999999) (1972) HAMPER ASSEMBLY Parts Diagram

31" Trailer Sweeper

HAMPER ASSEMBLY Parts Diagram

  • Title
1

Toro 32127-12

Locknut
(Superseded to 3296-3)

$4.99

$

Usually ships in 3-6 days

0

2

Toro 17-2560

Eye bolt

$

$

Currently unavailable

3

Toro 17-2980

Support tube, R. H.

$

$

Currently unavailable

4

Toro 17-3190

Handle bracket

$

$

Currently unavailable

5

Toro 17-3200

Dump lever

$

$

Currently unavailable

6

Toro 17-3280

Hamper

$

$

Currently unavailable

7

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

10

Toro 17-2570

Eye bolt

$

$

Currently unavailable

11

Toro 17-2540

Pilot nut

$

$

Currently unavailable

12

Toro 17-3320

Spring

$

$

Currently unavailable

13

Toro 17-3310

Latch

$

$

Currently unavailable

14

Toro 17-2920

Dump rope

$

$

Currently unavailable

15

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

16

Toro 17-3330

Rubber protector

$

$

Currently unavailable

17

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

18

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

19

Toro 17-2800

Top tube

$

$

Currently unavailable

20

Toro 17-3000

Top Hamper tube

$

$

Currently unavailable

21

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

22

Toro 17-3040

Corner support tube

$

$

Currently unavailable

23

Toro 17-2770

Pivot bracket

$

$

Currently unavailable

24

Toro 17-2780

Pivot pin

$

$

Currently unavailable

25

Toro 17-3050

Bottom tube

$

$

Currently unavailable

26

Toro 17-2760

Frame pivot bracket

$

$

Currently unavailable

27

Toro 17-3070

Support, L. H.

$

$

Currently unavailable

Toro 17-3060

Support, R. H.

Note: Not illustrated

$

$

Currently unavailable

28

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0

29

Toro 17-2990

Support tube, L. H.

$

$

Currently unavailable

30

Toro 17-2600

Tube bolt

$

$

Currently unavailable

31

Toro 17-3110

Spreader rod

$

$

Currently unavailable

32

Toro 17-3030

Side tube

$

$

Currently unavailable

33

Toro 17-2830

Tie rod

$

$

Currently unavailable

34

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0
