59044 - Toro Rear Bagging Kit for Premium Rider (SN: 005000001 - 005999999) (1975) EASY EMPTY GRASS CATCHER Parts Diagram

Rear Bagging Kit for Premium Rider

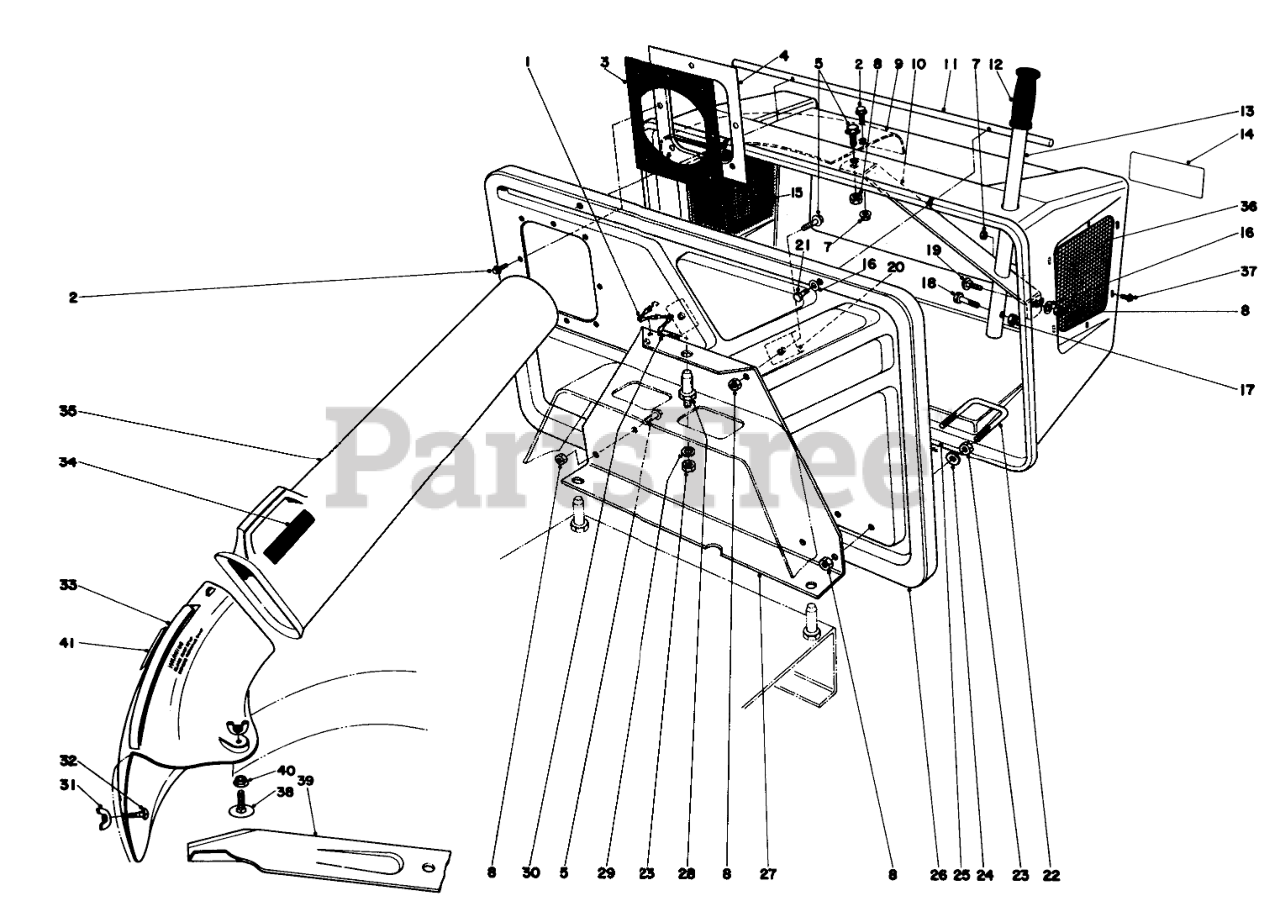

EASY EMPTY GRASS CATCHER Parts Diagram

  • Title
1

Toro 2830-9

6-LINK CHAIN W/HOOK

$

$

Not available

2

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

3

Toro 25-1410

INLET SEAL

$

$

Not available

4

Toro 25-1420

FRAME SEAL

$

$

Not available

5

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

7

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 17

0

8

Toro 32153-3

NUT-HEX, SIDE DEFORM

$6.49

$

Usually ships in 3-6 days

0

9

Toro 25-1470

DEFLECTOR

$

$

Not available

10

Toro 25-1390

HANDLE GUIDE

$

$

Not available

11

Toro 25-1360

PIVOT ROD

$

$

Not available

12

$

$

Not available

13

Toro 25-1380

HANDLE TUBE

$

$

Not available

14

Toro 25-2200

EASY EMPTY BAG DECAL
(Superseded to 92-1754)

$

$

Not available

15

Toro 25-1300

Screen

$

$

Currently unavailable

16

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 32153-4

NUT-HEX, SIDE DEFORM

$1.49

$

Usually ships in 3-6 days

0

18

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 9

0

19

Toro 3230-15

SCREW-CARR

$1.99

$

In Stock, only 4 left!

0

20

Toro 25-3980

Retainer

$

$

Not available

21

Toro 321-30

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

22

Toro 25-1370

LATCH

$40.99

$

Usually ships in 3-6 days

0

23

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

24

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 25-1290

HOPPER

$

$

Not available

26

$

$

Not available

27

Toro 25-1430

Plate Mounting

$

$

Not available

28

Toro 25-1510

Pin-Mounting

$

$

Not available

29

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

30

Toro 3290-290

HAIRPIN COTTER

$

$

Not available

31

Toro 32103-2

NUT-WING

$0.99

$

In Stock, only 2 left!

0

32

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

33

Toro 25-1500

Chute
(Superseded to 60-8680)

$684.99

$

Usually ships in 3-6 days

0

34

Toro 25-3600

Decal Duct

$

$

Not available

35

Toro 25-3610

Duct (Incl. Ref. #34)

$

$

Not available

36

Toro 26-0010

SCREEN

$

$

Not available

37

Toro 3290-126

SCREW-HWH

$2.99

$

Usually ships in 3-6 days

0

38

Toro 3232-15

Elevator Bolt
(Superseded to 26-0430)

$

$

Not available

39

Toro 25-8420

Blade
(Superseded to 26-8060-03)

$56.99

$

Usually ships in 3-6 days

0

40

Toro 3290-147

PAL NUT

$

$

Not available

41

Toro 23-6280

Decal

$

$

Not available
