59043 - Toro 30" Snow Blade (SN: 001000001 - 001999999) (1971) 30" SNOW BLADE Parts Diagram

30" Snow Blade

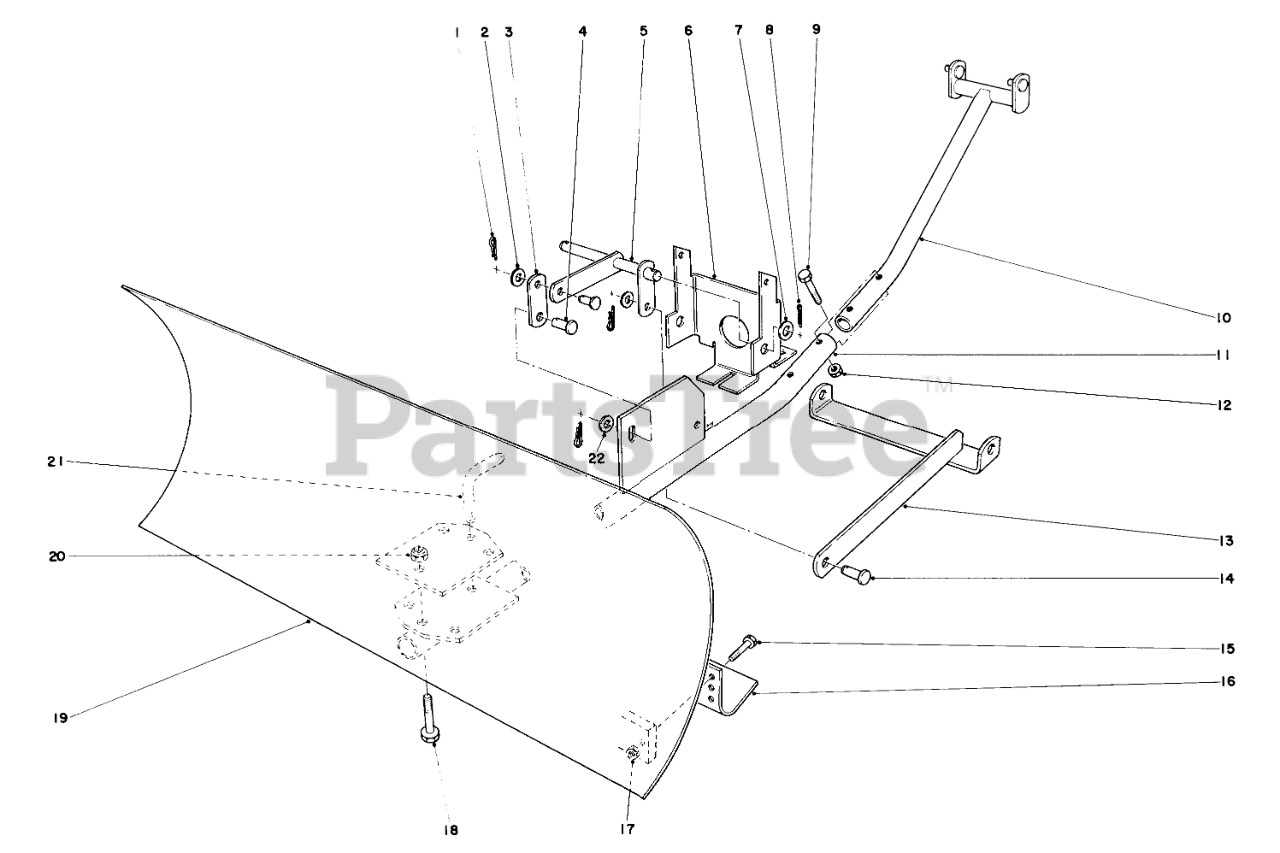

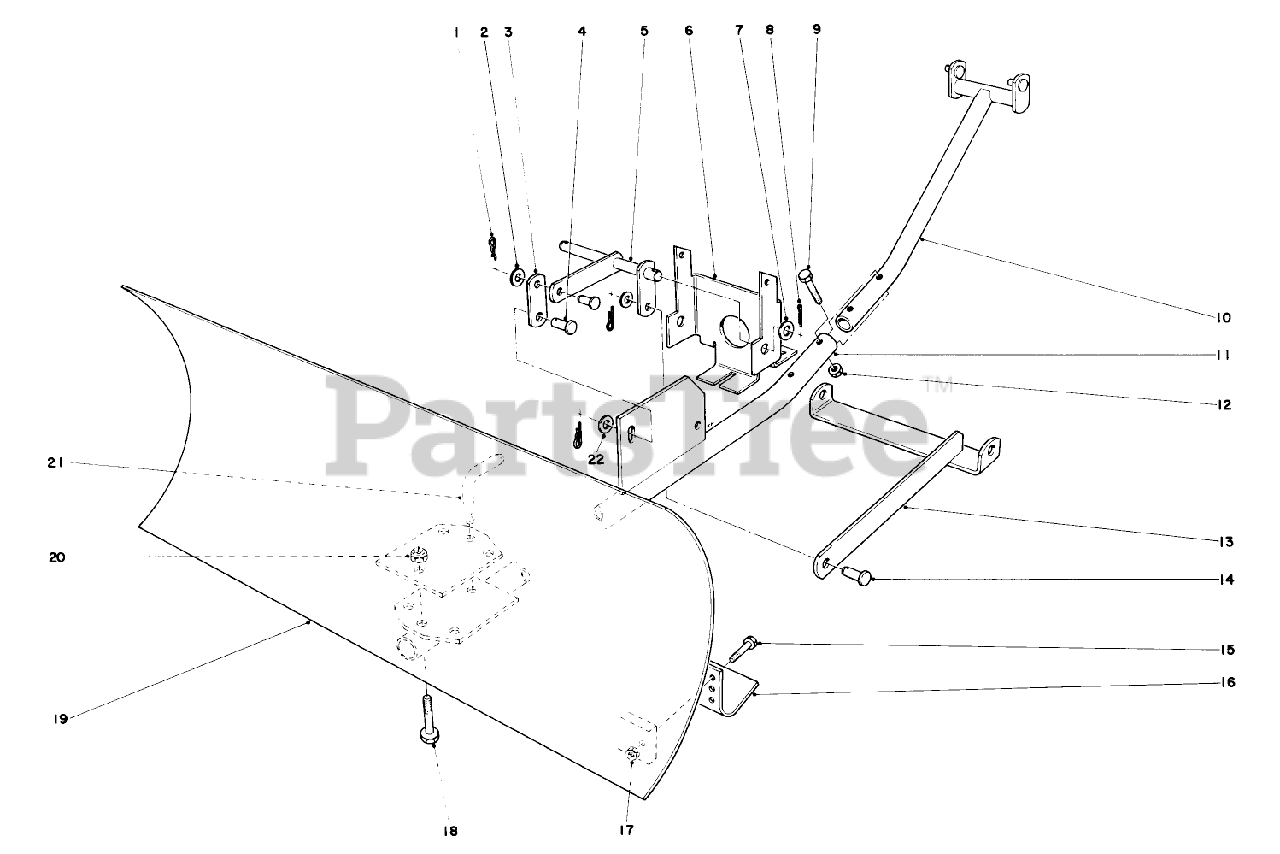

30" SNOW BLADE Parts Diagram

  • Title

1

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

2

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 11-9820

Linkage

$

$

Currently unavailable

4

Toro 7-4110

Pin

$

$

Not available

5

Toro 11-9730

Lift Linkage

$

$

Currently unavailable

6

Toro 11-9830

Bracket Mounting

$

$

Currently unavailable

7

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 15

0

8

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

9

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 11-9870

Connecting Tube

$

$

Currently unavailable

11

Toro 11-9660

Snowblade Tongue

$

$

Not available

12

Toro 32153-2

NUT-LOCK, SIDE
(Superseded to 603773)

$2.99

$

In Stock, Qty 20+

0

13

Toro 11-9900

Linkage Rear

$

$

Currently unavailable

14

Toro 283-30

PIN-CLEVIS

$0.99

$

Usually ships in 3-6 days

0

15

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

16

Toro 12-2000

Skid

$

$

Currently unavailable

17

Toro 32153-3

NUT-HEX, SIDE DEFORM

$6.49

$

Usually ships in 3-6 days

0

18

Toro 325-10

SCREW-HH

$5.49

$

In Stock, Qty 6

0

19

Toro 7-4374

Blade

$

$

Not available

20

Toro 32152-3

1/2-13 CONELOCK NUT

$

$

Not available

21

Toro 7-1022

Pivot Pin

$

$

Currently unavailable

22

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
