590365901 - Husqvarna Tiller Attachment (2017-12) TRANSMISSION Parts Diagram

Tiller Attachment

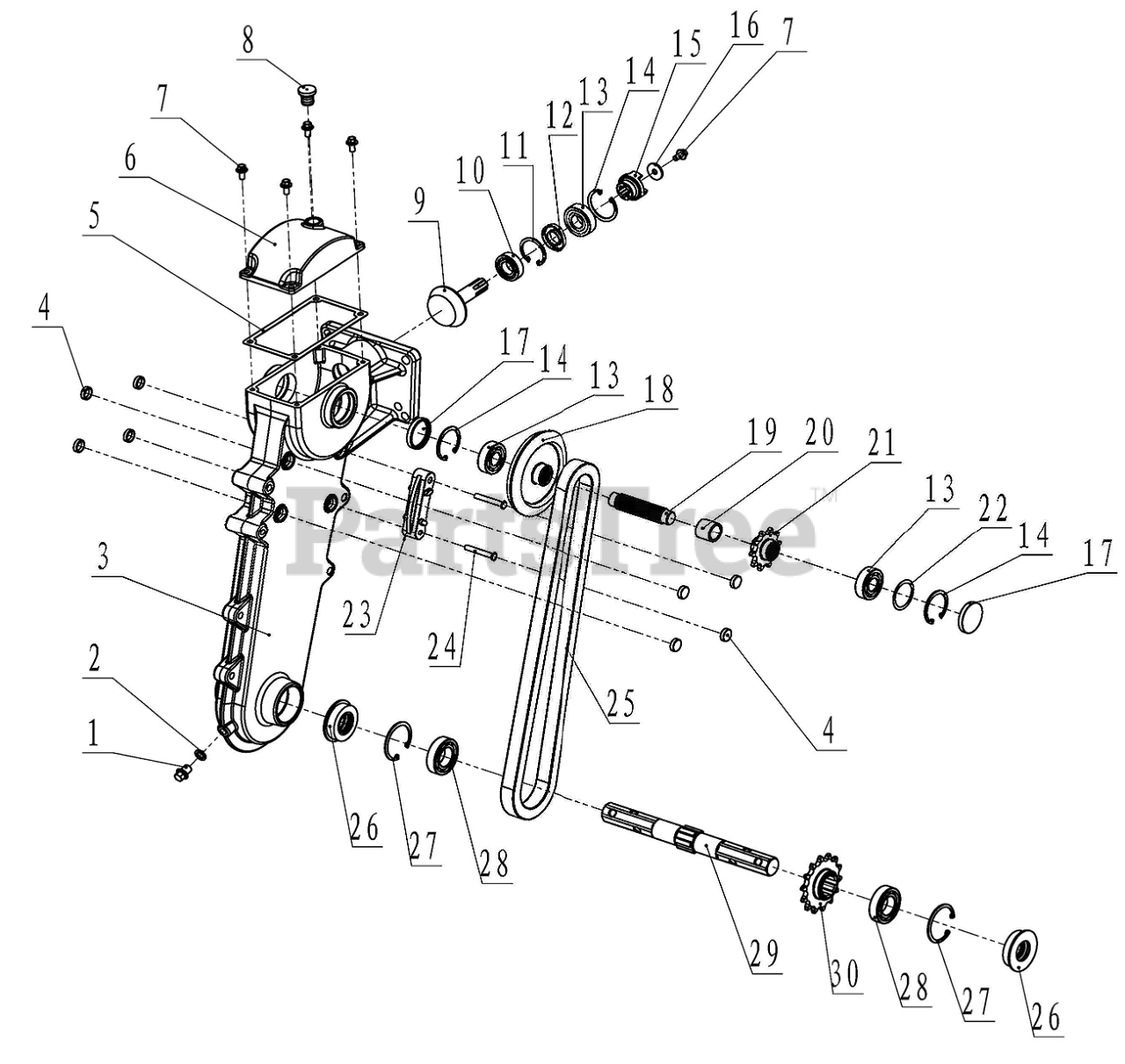

TRANSMISSION Parts Diagram

  • Title
14

Husqvarna 593601419

NEEDS DESCRIPTION

Note: Circlip 40

$

$

Currently unavailable

27

Husqvarna 593601420

NEEDS DESCRIPTION

Note: Circlip 47

$

$

Currently unavailable

12

Husqvarna 593601442

NEEDS DESCRIPTION

Note: Oil Seal 17x35x6

$

$

Currently unavailable

10

Husqvarna 593601407

NEEDS DESCRIPTION

Note: Bearing 6003

$

$

Currently unavailable

3

Husqvarna 529747101

NEEDS DESCRIPTION

$

$

Currently unavailable

25

Husqvarna 593601412

NEEDS DESCRIPTION

Note: 1-62-520HF3

$

$

Currently unavailable

17

Husqvarna 593601444

NEEDS DESCRIPTION

Note: Oli plug 40x6

$

$

Currently unavailable

15

Husqvarna 598684576

NEEDS DESCRIPTION

$

$

Currently unavailable

4

Husqvarna 593601441

NEEDS DESCRIPTION

Note: Oil plug B

$

$

Currently unavailable

8

Husqvarna 593601450

NEEDS DESCRIPTION

Note: Rubber plug

$

$

Currently unavailable

5

Husqvarna 593601436

NEEDS DESCRIPTION

$

$

Currently unavailable

29

Husqvarna 598684583

NEEDS DESCRIPTION

$

$

Currently unavailable

19

Husqvarna 598684578

NEEDS DESCRIPTION

$

$

Currently unavailable

11

Husqvarna 593601418

NEEDS DESCRIPTION

Note: Circlip 35

$

$

Currently unavailable

26

Husqvarna 593601443

NEEDS DESCRIPTION

Note: Oil seal TC6Y25x47x54x13x4

$

$

Currently unavailable

28

Husqvarna 598684582

NEEDS DESCRIPTION

$

$

Currently unavailable

9

Husqvarna 598684575

NEEDS DESCRIPTION

$

$

Currently unavailable

30

Husqvarna 598684584

NEEDS DESCRIPTION

$

$

Currently unavailable

20

Husqvarna 598684579

NEEDS DESCRIPTION

$

$

Currently unavailable

13

Husqvarna 593601406

NEEDS DESCRIPTION

Note: Bearing 6203-2Z

$

$

Currently unavailable

21

Husqvarna 598684580

NEEDS DESCRIPTION

$

$

Currently unavailable

23

Husqvarna 598684581

NEEDS DESCRIPTION

$

$

Currently unavailable

18

Husqvarna 598684577

NEEDS DESCRIPTION

$

$

Currently unavailable

2

Husqvarna 589911401

NEEDS DESCRIPTION

Note: Alu washer 15x10x2

$

$

Currently unavailable
