59031 - Toro 32" Snow Thrower Attachment (SN: 008000001 - 008999999) (1968) MOUNTING FRAME ASSEMBLY Parts Diagram

32" Snow Thrower Attachment

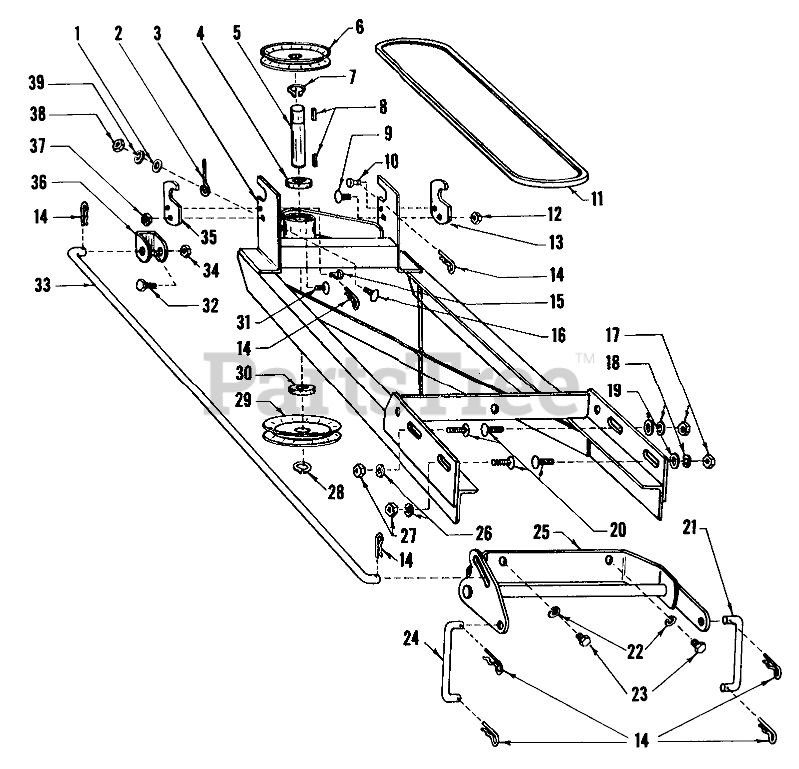

MOUNTING FRAME ASSEMBLY Parts Diagram

  • Title
1

$

$

Currently unavailable

2

Toro T-4241

Belt Guide

$

$

Currently unavailable

Toro T-4223

Mounting Bracket

Note: Not illustrated

$

$

Currently unavailable

4

Toro T-2140-13

Ball Bearing

$

$

Currently unavailable

5

Toro T-4201

Transfer Shaft

$

$

Currently unavailable

6

Toro T-1177-30

Pulley w/Set Screw

$

$

Currently unavailable

7

Toro T-2552-3

Retainer Ring

$

$

Currently unavailable

$

$

Currently unavailable

9

Toro T-1111-159

Carriage Bolt

$

$

Currently unavailable

10

$

$

Currently unavailable

Toro T-1176-56

Belt

Note: Not illustrated

$

$

Currently unavailable

Toro T-1112-42

Nut

Note: Not illustrated

$

$

Currently unavailable

Toro T-4233

Retainer Latch

Note: Not illustrated

$

$

Currently unavailable

14

Toro T-2124-2

Hair Pin

$

$

Currently unavailable

15

$

$

Currently unavailable

16

Toro T-1111-233

Carriage Bolt

$

$

Currently unavailable

17

$

$

Currently unavailable

18

Toro T-1113-8

Washer

$

$

Currently unavailable

19

Toro T-1113-7

Washer

$

$

Currently unavailable

20

Toro T-1111-72

Carriage Bolt

$

$

Currently unavailable

Toro T-4230

Lift Rod Small

Note: Not illustrated

$

$

Currently unavailable

Toro T-1113-8

Washer

Note: Not illustrated

$

$

Currently unavailable

Toro T-1111-257

Capscrew

Note: Not illustrated

$

$

Currently unavailable

Toro T-4225

Lift Assembly

Note: Not illustrated

$

$

Currently unavailable

26

Toro T-1113-8

Washer

$

$

Currently unavailable

27

$

$

Currently unavailable

28

Toro T-2552-3

Retainer Ring

$

$

Currently unavailable

Toro T-1177-31

Pulley w/Set Screw

Note: Not illustrated

$

$

Currently unavailable

30

Toro T-2140-13

Ball Bearing

$

$

Currently unavailable

31

Toro T-1111-159

Carriage Bolt

$

$

Currently unavailable

Toro T-4236

Lift Rod

Note: Not illustrated

$

$

Currently unavailable

35

Toro T-4232

Retainer Latch

$

$

Currently unavailable

$

$

Currently unavailable

38

$

$

Currently unavailable

39

$

$

Currently unavailable

3

Toro T-4222

Mounting Bracket

$

$

Currently unavailable

11

Toro 7-0957S

Belt

Note: Obtain from your local Toro Dealer

$

$

Currently unavailable

$

$

Currently unavailable

13

Toro T-4232

Retainer Latch

$

$

Currently unavailable

21

Toro T-4229

Lift Rod Small

$

$

Currently unavailable

22

$

$

Currently unavailable

23

Toro T-1111-150

Capscrew

$

$

Currently unavailable

24

Toro T-4229

Lift Rod Small

$

$

Currently unavailable

25

Toro T-4226

Lift Assembly

$

$

Currently unavailable

29

Toro T-1177-32

Pulley w/Set Screw

$

$

Currently unavailable

32

Toro T-1111-24

Capscrew

$

$

Currently unavailable

33

Toro T-4235

Lift Rod

$

$

Currently unavailable

$

$

Currently unavailable

36

Toro T-4231

Extension Bracket

$

$

Currently unavailable
