59031 - Toro 32" Snow Thrower Attachment (SN: 008000001 - 008999999) (1968) HOUSING ASSEMBLY Parts Diagram

32" Snow Thrower Attachment

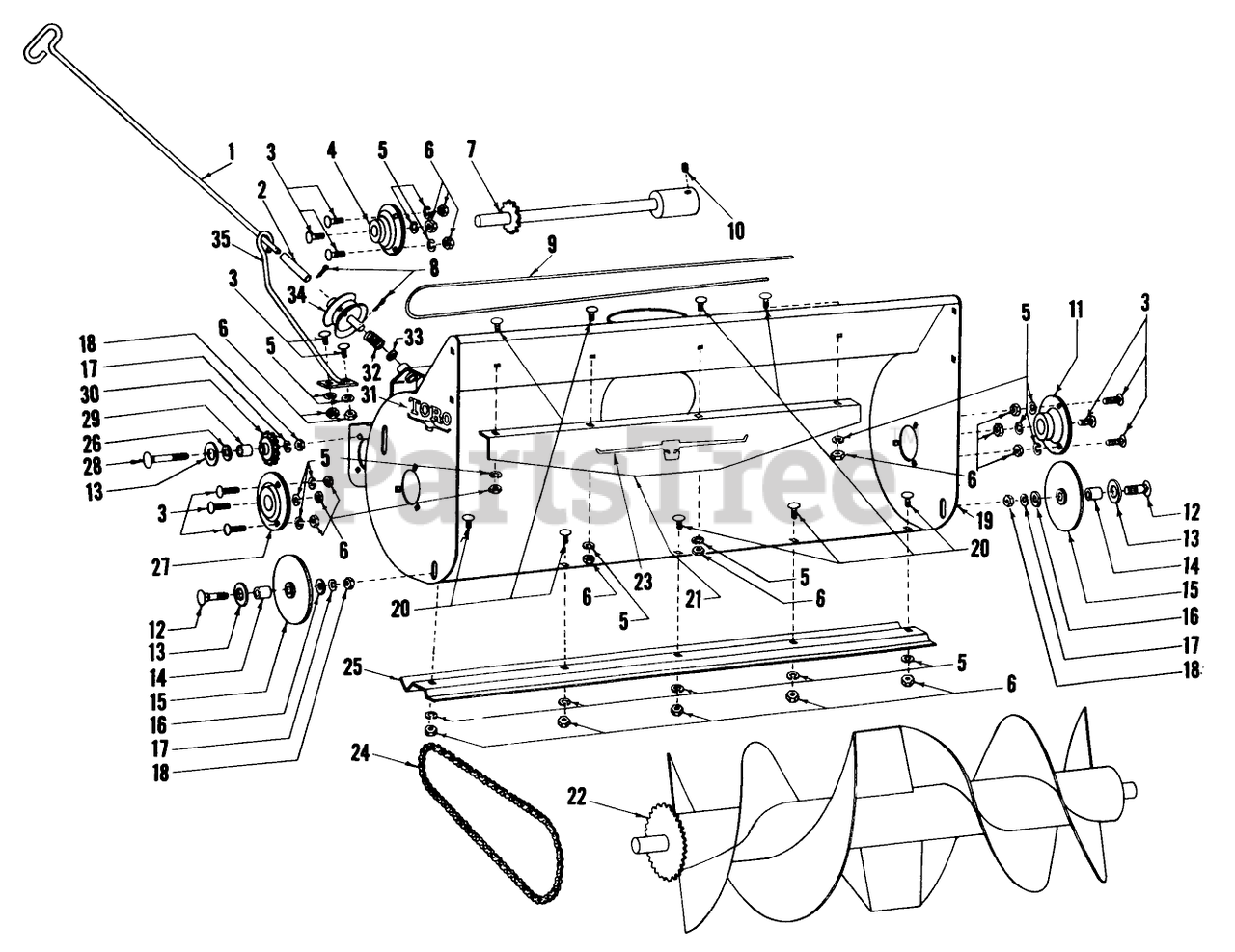

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro T-4240

Rod Chute Handle

$

$

Currently unavailable

2

Toro T-4242

Sleeve

$

$

Currently unavailable

3

Toro T-1111-159

Carriage Bolt

$

$

Currently unavailable

4

Toro T-1181-14

Bearing w/Setscrew

$

$

Currently unavailable

5

$

$

Currently unavailable

$

$

Currently unavailable

Toro T-4228

Chain Drive Shaft Assy

Note: Not illustrated

$

$

Currently unavailable

8

Toro T-11249

Cotter Pin

$

$

Currently unavailable

9

Toro T-4209

Control Cable

$

$

Currently unavailable

10

Toro T-1111-160

Set Screw

$

$

Currently unavailable

11

Toro T-1181-10

Bearing w/Setscrew

$

$

Currently unavailable

12

Toro T-1111-96

Capscrew

$

$

Currently unavailable

13

$

$

Currently unavailable

14

Toro T-3383

Bushing

$

$

Currently unavailable

15

Toro T-3382

Guide Wheel

$

$

Currently unavailable

16

$

$

Currently unavailable

17

Toro T-1113-8

Washer

$

$

Currently unavailable

18

$

$

Currently unavailable

Toro T-4174

Housing

Note: Not illustrated

$

$

Currently unavailable

20

Toro T-1111-161

Carriage Bolt

$

$

Currently unavailable

21

Toro T-4234

Snow Shield

$

$

Currently unavailable

Toro T-4221

Rotor Assembly

Note: Not illustrated

$

$

Currently unavailable

23

Toro 3-8155

Decal

Note: Obtain from your local Toro Dealer

$

$

Currently unavailable

Toro T-1126-40

Roller Chain

Note: Not illustrated

$

$

Currently unavailable

Toro T-4005

Blade Scraper

Note: Not illustrated

$

$

Currently unavailable

26

$

$

Currently unavailable

27

Toro T-1181-10

Bearing w/Setscrew

$

$

Currently unavailable

28

Toro T-1111-117

Carriage Bolt

$

$

Currently unavailable

29

Toro T-4135

Spacer

$

$

Currently unavailable

30

Toro T-4136

Chain Idler

$

$

Currently unavailable

31

Toro 5-1058

Decal

Note: Obtain from your local Toro Dealer

$

$

Currently unavailable

32

Toro T-4199

Compression Spring

$

$

Currently unavailable

33

Toro T-1113-7

Washer

$

$

Currently unavailable

34

Toro T-4206

Chute Control

$

$

Currently unavailable

Toro T-4227

Chute Handle Support

Note: Not illustrated

$

$

Currently unavailable

7

Toro T-4188

Chain DriveShaft Assy

$

$

Currently unavailable

19

Toro T-4173

Housing

$

$

Currently unavailable

22

Toro T-4111

Rotor Assembly

$

$

Currently unavailable

24

Toro T-1126-32

Roller Chain

$

$

Currently unavailable

25

Toro T-2989

Blade-Scraper

$

$

Currently unavailable

35

Toro T-4187

Chute Handle Support

$

$

Currently unavailable
