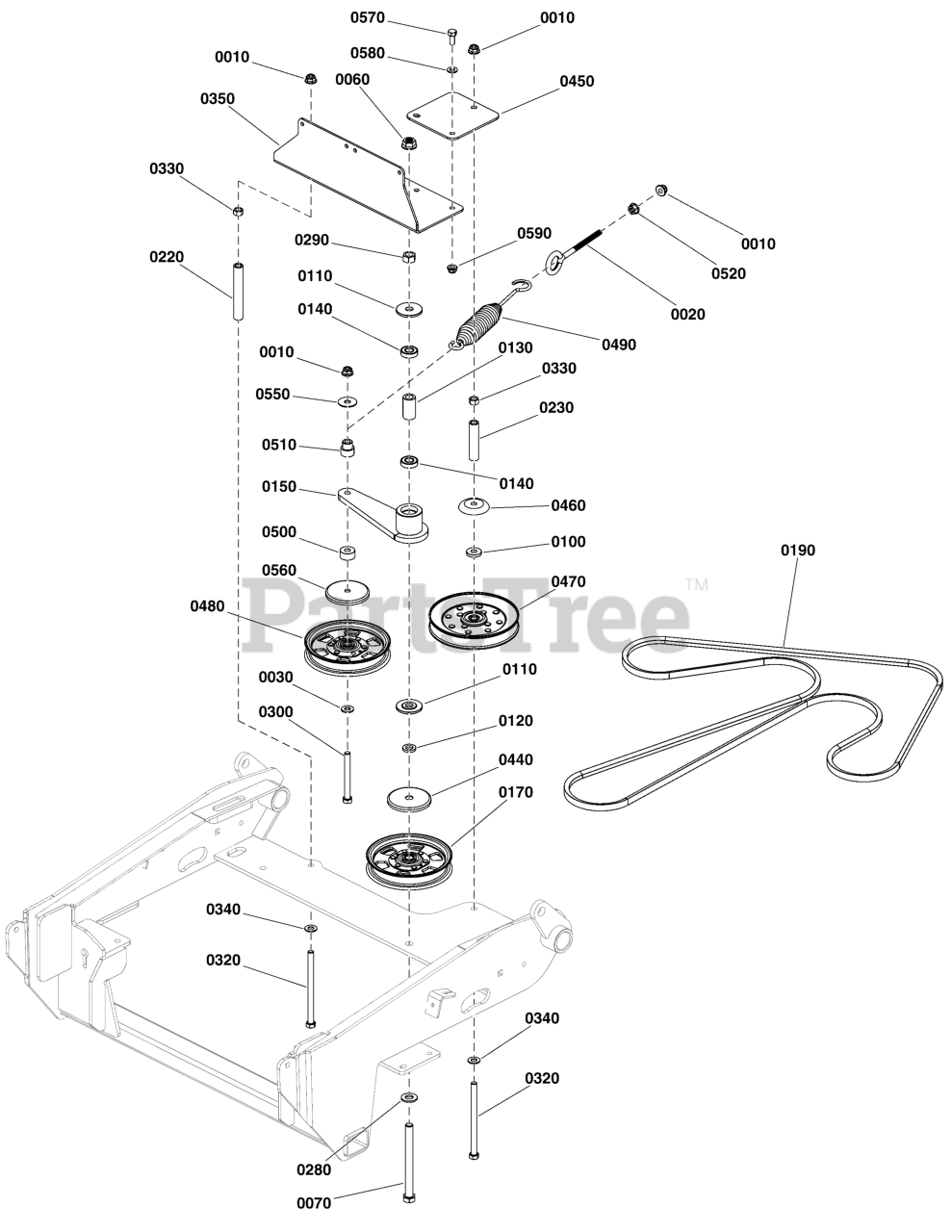

5901998 - Simplicity Citation XT 61" Zero-Turn Mower, 26hp Briggs & Stratton Transaxle Drive Group Parts Diagram

Citation XT 61" Zero-Turn Mower, 26hp Briggs & Stratton

Transaxle Drive Group Parts Diagram

  • Title

0010

Simplicity 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

0020

Simplicity 5021812SM

EYE BOLT, 3/8-16 X 6, 3.0 THRD, 1 EYE

$5.99

$

In Stock, Qty 18

0

0030

Simplicity 5025293SM

WASHER, 3/8" GR. 9 FLAT

$3.99

$

In Stock, Qty 5

0

0060

Simplicity 5025396SM

NUT, Hex Flange, 1/2-13

$3.49

$

In Stock, only 2 left!

0

0070

Simplicity 5025017X44SM

CAPSCREW, Hex Head, 1/2-13 x 5-1/2

$7.99

$

In Stock, only 3 left!

0

0100

Simplicity 5101965YP

SPACER, .390 X 1.00 X .188, CZ

$6.49

$

In Stock, only 1 left!

0

0110

Simplicity 5103262YP

SPACER, Idler Arm

$7.99

$

In Stock, Qty 16

0

0120

Simplicity 5104239YP

SPACER, .52 X .88 X .14, BZ

$6.99

$

Usually ships in 2-12 days

0

0130

Simplicity 5103812YP

SPACER

$7.99

$

In Stock, Qty 7

0

0140

Simplicity 7078243YP

BEARING, Ball

$10.99

$

In Stock, Qty 18

0

0150

Simplicity 5412787AYP

WELD, ARM, PUMP DRIVE IDLER, 6.38 - BLK

$79.99

$

Usually ships in 2-12 days

0

0170

Simplicity 5105101YP

PULLEY, FLT IDLER, 5.0 X .75 X .50SH, CZ

$45.99

$

In Stock, only 1 left!

0

0190

Simplicity 5103653YP

BELT, A-SEC, 114.3"EL, ARAMID, WRPD

$71.99

$

In Stock, Qty 20+

0

0220

Simplicity 5103763YP

SPACER, .39 X .63 X 4.06, CZ

$10.99

$

Usually ships in 2-12 days

0

0230

Simplicity 5103765YP

SPACER, .39 X .63 X 2.81, CZ

$11.99

$

Usually ships in 2-12 days

0

0280

Simplicity 5025158SM

WASHER, 1/2

$3.99

$

In Stock, Qty 14

0

0290

Simplicity 5025038SM

NUT, 1/2-13 HEX, YZ

$

$

Not available

0300

Simplicity 5025013X28SM

CAPSCREW, Hex Hd, 3/8-16 x 3-1/2

$4.99

$

In Stock, Qty 20+

0

0320

Simplicity 5025013X44SM

BOLT, 3/8-16 X 5-1/2 GD5 CZ

$4.99

$

Usually ships in 2-12 days

0

0330

Simplicity 5025034SM

NUT, 3/8-16 HEX

$2.99

$

Usually ships in 2-12 days

0

0340

Simplicity 703590

WASHER, .406

$3.99

$

In Stock, Qty 12

0

0350

Simplicity 5410310AYP

PLATE, RESERVOIR MOUNT - BLK

$46.99

$

Usually ships in 2-12 days

0

0440

Snapper 5105145YP

SHIELD, BEARING, 1/2ID X 2-7/8 OD, CZ

$4.49

$

In Stock, Qty 20+

0

0450

Simplicity 5410589AYP

PLATE, PULLEY SUPPORT - BLK

$8.49

$

Usually ships in 2-12 days

0

0460

Simplicity 5103787YP

SHIELD, BEARING PULLEY, 3/8ID, CZ

$7.49

$

In Stock, only 1 left!

0

0470

Simplicity 5103792YP

PULLEY, IDLER-V, 5.83OB, .381ID, .94W

$57.99

$

In Stock, Qty 6

0

0480

Simplicity 5105098YP

PULLEY, FLT IDLER, 5.0 X .75 X .38, CZ

$45.99

$

In Stock, only 1 left!

0

0490

Simplicity 5100632YP

SPRING-EXT, 1.25OD X 9.3LG X .142WR, BLK

$38.99

$

Usually ships in 2-12 days

0

0500

Simplicity 5046860SM

SPACER, .39 X 1.00 X .50, PM, CZ

$6.49

$

Usually ships in 2-12 days

0

0510

Simplicity 5020923YP

SPACER, SHOULDER

$5.99

$

In Stock, only 1 left!

0

0520

Simplicity 5025128SM

NUT, Hex, Serrated Flange, 3/8-16 (S/N 616 & up)

$3.49

$

In Stock, only 2 left!

0

0550

Simplicity 5025165SM

WASHER, Fender, 3/8

$3.99

$

In Stock, only 2 left!

0

0560

Simplicity 5105146YP

SHIELD, BEARING, 3/8ID X 2-7/8OD, CZ

$4.49

$

Usually ships in 2-12 days

0

0570

Simplicity 5025011X6SM

CAPSCREW, Hex Head, 5/16-18 x 3/4

$3.99

$

In Stock, only 2 left!

0

0580

Simplicity 703302

WASHER, Flat, 5/16

$4.49

$

In Stock, Qty 20+

0

0590

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0
