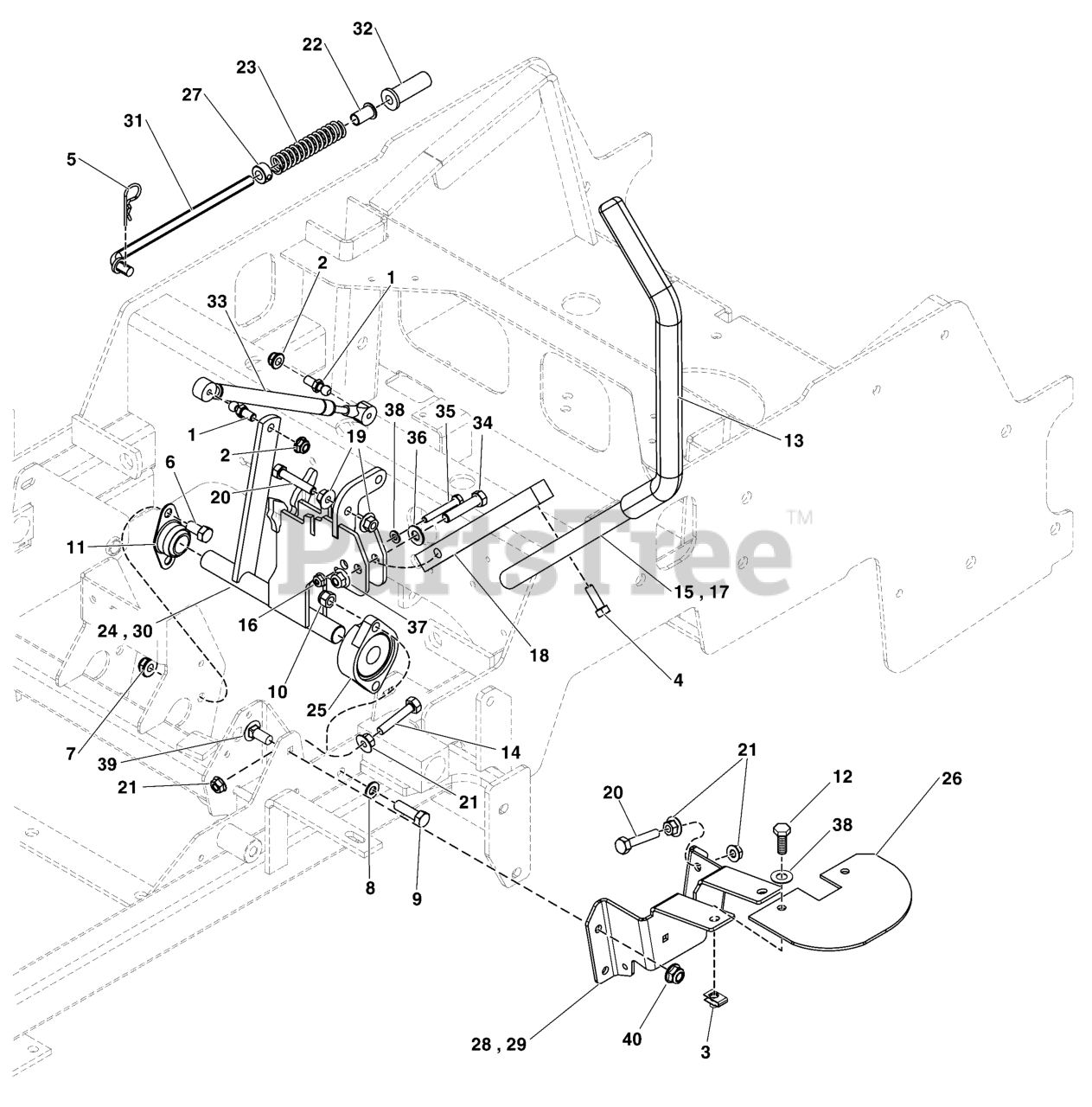

5901998 - Simplicity Citation XT 61" Zero-Turn Mower, 26hp Briggs & Stratton Motion Control Group - Handles & Dampeners S/N: 4001938726 and Above Parts Diagram

Citation XT 61" Zero-Turn Mower, 26hp Briggs & Stratton

Motion Control Group - Handles & Dampeners S/N: 4001938726 and Above Parts Diagram

  • Title

1

Simplicity 5101307SM

10MM BALL STUD, 5/16-18 X 3/4 THDS

$5.49

$

Usually ships in 2-12 days

0

2

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 5022665SM

BODY CLIP, 1/4-20 X 1/2" DEEP

$3.49

$

Usually ships in 2-12 days

0

4

Simplicity 703354

SCREW, Flange, Whiz-Lock, 5/16-18 X 3/4

$5.49

$

In Stock, Qty 14

0

5

Simplicity 5025210YP

PIN, HAIR, .0915 X 1-7/8

$3.99

$

In Stock, Qty 20+

0

6

Simplicity 5025013X6SM

CAPSCREW, Hex Head, 3/8-16 x 3/4

$3.99

$

Usually ships in 2-12 days

0

7

Simplicity 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

8

Simplicity 703302

WASHER, Flat, 5/16

$4.49

$

In Stock, Qty 20+

0

9

Simplicity 5025327SM

BOLT, 3/8-16 X 1-1/4 SHCS (SOCKET HEAD)

$3.99

$

Usually ships in 2-12 days

0

10

Simplicity 5025096SM

NUT, Hex, Nylon Lock, 3/8-16

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 5021098SM

BEARING, Flange, Bronze, 3/4"

$13.99

$

In Stock, Qty 5

0

12

Simplicity 5025010X6SM

CAPSCREW, Hex Head, 1/4-20 x 3/4 (stiffener to top of cover)

$3.99

$

In Stock, Qty 20+

0

13

Simplicity 5104722YP

GRIP, FOAM, 1" ID, 16" LONG

$12.99

$

Usually ships in 2-12 days

0

14

Simplicity 5025055X10YP

BOLT, 5/16-18 x 1-1/4" TFL GD 5

$3.49

$

Usually ships in 2-12 days

0

15

Simplicity 84004629

CONTROL, Handle

$49.99

$

Usually ships in 2-12 days

0

16

Simplicity 703463

NUT, Flange Nylock , 1/4-20

$4.49

$

In Stock, Qty 20+

0

17

Simplicity 84004630

CONTROL, Handle

$49.99

$

In Stock, only 1 left!

0

18

Simplicity 5103106AYP

MOUNT, CONTROL ARM

$54.99

$

Usually ships in 2-12 days

0

19

Simplicity 5025139SM

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)

$3.49

$

In Stock, Qty 12

0

20

Simplicity 5025055X14SM

CAPSCREW, Hex Head, Flange Lock Taptite, 5/16-18 X 1-3/4

$3.99

$

Usually ships in 2-12 days

0

21

Simplicity 5025127SM

NUT, Hex Serrated Flange, 5/16-18,

$3.49

$

In Stock, Qty 7

0

22

Simplicity 5023260SM

BUSHING, FLANGE 3/8ID X 7/8 LONG

$6.49

$

In Stock, only 2 left!

0

23

Simplicity 5022645SM

SPRING, REVERSE RETURN

$9.49

$

In Stock, only 1 left!

0

24

Simplicity 5416663AYP

WELD, CONTROL SHAFT, LOCKOUT, LH - BLK

$64.99

$

Usually ships in 2-12 days

0

25

Simplicity 5021499SM

BEARING, FLANGE

$55.99

$

In Stock, only 2 left!

0

26

Simplicity 5410610AYP

PLATE, NUETRAL LOCK SHIELD, IS700 - BLK

$9.99

$

Usually ships in 2-12 days

0

27

Simplicity 5010546SM

COLLAR, 3/8" SET

$5.99

$

Usually ships in 2-12 days

0

28

Simplicity 5409982AYP

PLATE, NEUTRAL LOCK, LH - BLK

$34.99

$

Usually ships in 2-12 days

0

29

Simplicity 5409983AYP

PLATE, NEUTRAL LOCK, RH - BLK

$29.99

$

Usually ships in 2-12 days

0

30

Simplicity 5416664AYP

WELD, CONTROL SHAFT, LOCKOUT, RH - BLK

$62.99

$

Usually ships in 2-12 days

0

31

Simplicity 5100947SM

ROD, NEUTRAL RETURN, CZ

$7.99

$

Usually ships in 2-12 days

0

32

Simplicity 5104375YP

FLANGED BUSHING, 3/8IDX.63ODX.8125FL

$5.99

$

Usually ships in 2-12 days

0

33

Simplicity 5100940SM

DAMPENER, CONTROL, #(P6709/P3610)

$55.99

$

In Stock, only 2 left!

0

34

Simplicity 5025013X14SM

CAPSCREW, Hex Head, 3/8-16 X 1-3/4

$3.99

$

In Stock, only 2 left!

0

35

Simplicity 5025010X14SM

CAPSCREW, Hex Head, 1/4-20 X 1-3/4

$3.99

$

In Stock, only 1 left!

0

36

Simplicity 703590

WASHER, .406

$3.99

$

In Stock, Qty 10

0

37

Simplicity 703158

NUT, Hex Flange, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

38

Simplicity 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

39

Simplicity 5025145X6SM

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ

$3.99

$

In Stock, Qty 5

0

40

Simplicity 703331

NUT, 5/16-24, Hex, GR5, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0
