5901998 - Simplicity Citation XT 61" Zero-Turn Mower, 26hp Briggs & Stratton Instrument Control Panel Group Parts Diagram

Citation XT 61" Zero-Turn Mower, 26hp Briggs & Stratton

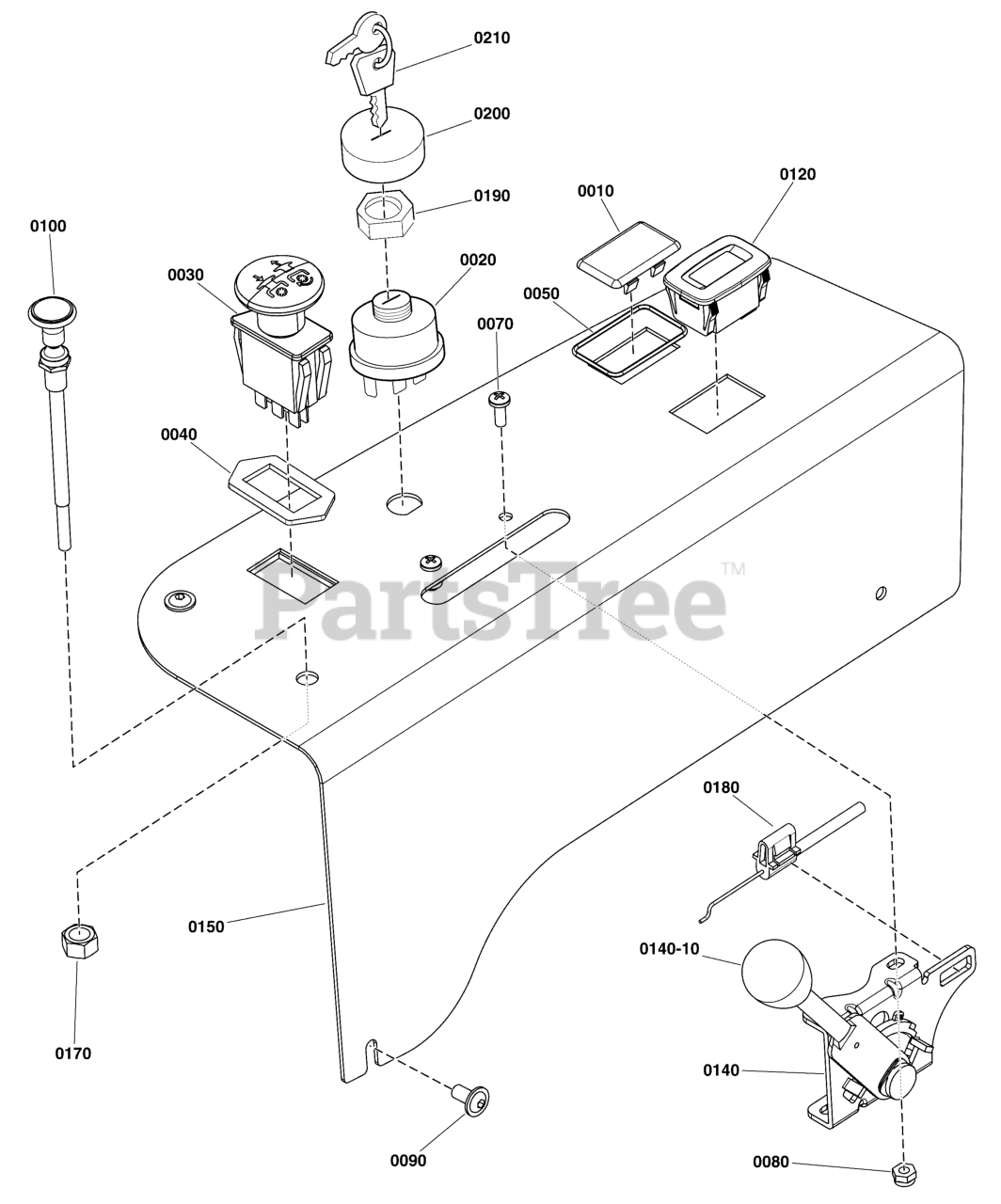

Instrument Control Panel Group Parts Diagram

  • Title

0010

Simplicity 1709188SM

PLUG, Hole, Electric Lift (Hydro models only)

$4.99

$

In Stock, only 1 left!

0

0020

Simplicity 1737853YP

SWITCH ASSEMBLY, Ignition Indak No Keys/Hdwr

$35.99

$

In Stock, Qty 20+

0

0030

Simplicity 1722887SM

SWITCH, PTO, Push/Pull

$33.99

$

In Stock, Qty 20+

0

0040

Simplicity 5022222SM

RING, SWITCH RETAINER, PTO

$4.49

$

In Stock, only 2 left!

0

0050

Simplicity 5022269SM

O-RING, 7/8" ID X 1/16" W

$3.49

$

Usually ships in 2-12 days

0

0070

Simplicity 5025179X6SM

SCREW, #10-24 X 3/4", ROUND PHILLIPS

$3.99

$

Usually ships in 2-12 days

0

0080

Simplicity 703412

NUT, Nylock, #10-24

$4.49

$

In Stock, only 2 left!

0

0090

Simplicity 84002228

SCREW, Flange

Note: (ALLEN HD, 1/4-20X.5 S/S)

$2.49

$

In Stock, Qty 15

0

0100

Simplicity 5047779SM

CABLE, CHOKE CONTROL, 51 (Z)

$52.99

$

In Stock, only 4 left!

0

0120

HOUR METER, 2 CHANNEL

Note: (Refer to Note: *)

$

$

Not available

0140

Simplicity 5101537SM

LEVER, THROTTLE CONTROL, HEAVY DUTY

$48.99

$

In Stock, only 1 left!

0

0140-10

Simplicity 5046360X1SM

THROTTLE CONTROL HANDLE/KNOB

$10.99

$

In Stock, only 1 left!

0

0150

Simplicity 5410303AYP

PLATE, CONTROL PANEL, IS600Z - BLK

$68.99

$

Usually ships in 2-12 days

0

0170

Simplicity 5025035SM

NUT, 3/8 - 24 HEX

$3.49

$

Usually ships in 2-12 days

0

0180

Simplicity 5101073SM

CABLE, THROTTLE, 42"

$33.99

$

In Stock, only 2 left!

0

0190

Simplicity 1717549SM

NUT, Hex Flange, 5/8-32 IGN SW DIE CAST
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

0200

Simplicity 1717550SM

COVER, Ignition Switch
(Superseded to 847150)

$8.49

$

In Stock, Qty 15

0

0210

Simplicity 1737836YP

KEYS, Ignition

$20.99

$

In Stock, only 1 left!

0
