5901954 - Simplicity Citation XT 52" Zero-Turn Mower, 27hp Briggs & Stratton Seat Mount and Floor Group Parts Diagram

Citation XT 52" Zero-Turn Mower, 27hp Briggs & Stratton

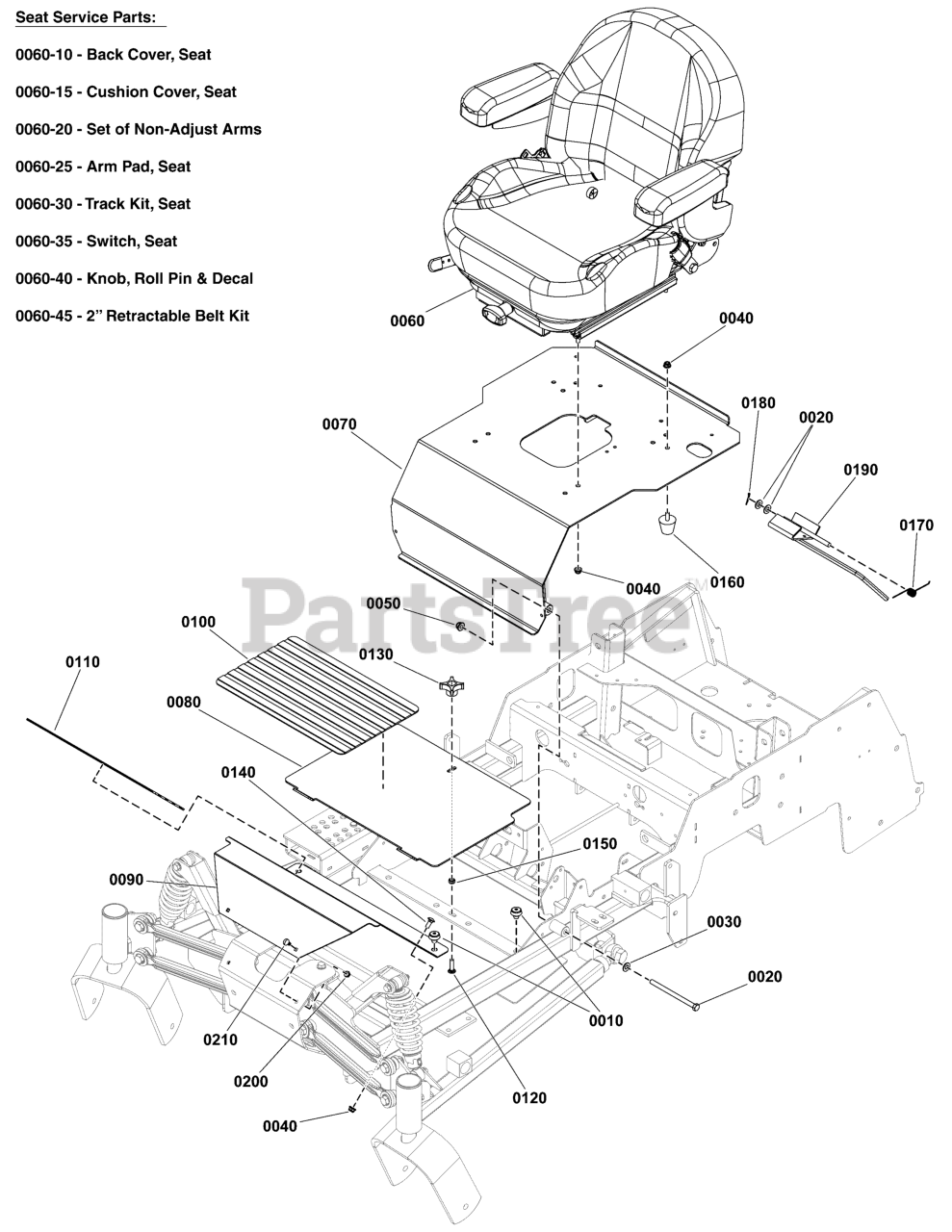

Seat Mount and Floor Group Parts Diagram

  • Title

0010

Simplicity 197546GS

MOUNT, Vibration

$7.99

$

In Stock, only 2 left!

0

0020

Simplicity 5025013X44SM

BOLT, 3/8-16 X 5-1/2 GD5 CZ

$4.99

$

Usually ships in 2-12 days

0

0030

Simplicity 703590

WASHER, .406

$3.99

$

In Stock, Qty 19

0

0040

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0050

Simplicity 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

0060

Simplicity 84006403

SEAT

$1353.99

$

Usually ships in 2-12 days

0

0060-10

Simplicity 84005183

COVER, Back

Note: (SV)

$253.99

$

Usually ships in 2-12 days

0

0060-15

Simplicity 84005184

CUSHION, Seat

Note: (SV)

$210.99

$

Usually ships in 2-12 days

0

0060-20

Simplicity 84005185

ARM

Note: (SV)

$

$

Currently unavailable

0060-25

Simplicity 84003208

SET OF ARM PADS

Note: (SV)

$131.99

$

Usually ships in 2-12 days

0

0060-30

Simplicity 84005186

KIT, Track

Note: (SV)

$

$

Currently unavailable

0060-35

Simplicity 7023354YP

SWITCH, Seat, Push Button (NC)

Note: (SV)

$12.99

$

In Stock, Qty 20+

0

0060-40

Simplicity 84005187

KNOB, Adjuster

Note: (SV)

$31.99

$

Usually ships in 2-12 days

0

0060-45

Simplicity 84003214

BELT, Seat

Note: (SV)

$140.99

$

Usually ships in 2-12 days

0

0070

Simplicity 5601301

SEAT PLATE W/DECALS, CIT XT, ST LTCH

$

$

Currently unavailable

0080

Simplicity 5410296CYP

PLATE, FLOOR, REMOVABLE, IS700 - ORG

$69.99

$

Usually ships in 2-12 days

0

0090

Simplicity 84006563

PLATE, Floor

$128.99

$

Usually ships in 2-12 days

0

0100

Simplicity 5101374YP

SAFETY WALK

$18.99

$

In Stock, only 1 left!

0

0110

Simplicity 5101333YP

SAFETY WALK, FLOOR PLATE, S50X, 10X17.13

$37.99

$

Usually ships in 2-12 days

0

0120

Simplicity 5025145X10YP

BOLT, 5/16-18 X 1-1/4, CARRIAGE, GD5, CZ

$3.49

$

Usually ships in 2-12 days

0

0130

Simplicity 1670578SM

KNOB, Internal Thread, 5/16 (Used Only on 24 in. Models)

$13.99

$

Usually ships in 2-12 days

0

0140

Simplicity 5025145X6SM

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ

$3.99

$

In Stock, Qty 5

0

0150

Simplicity 703164

NUT, Hex Center Lock, 5/16-18, GRB

$3.49

$

In Stock, Qty 17

0

0160

Simplicity 84003201

SUPPORT, Rubber

$8.99

$

In Stock, only 3 left!

0

0170

Simplicity 84003202

SPRING, Torsion

$2.49

$

Usually ships in 2-12 days

0

0180

Simplicity 703312

PIN, Cotter, 3/32 X 3/4

$3.99

$

In Stock, Qty 20+

0

0190

Simplicity 84006564

LATCH, Seat

$48.99

$

Usually ships in 2-12 days

0

0200

Simplicity 703463

NUT, Flange Nylock , 1/4-20

$4.49

$

In Stock, Qty 20+

0

0210

Simplicity 1960252SM

BOLT, Carriage, 1/4-20 x 5/8

$3.99

$

In Stock, only 1 left!

0
