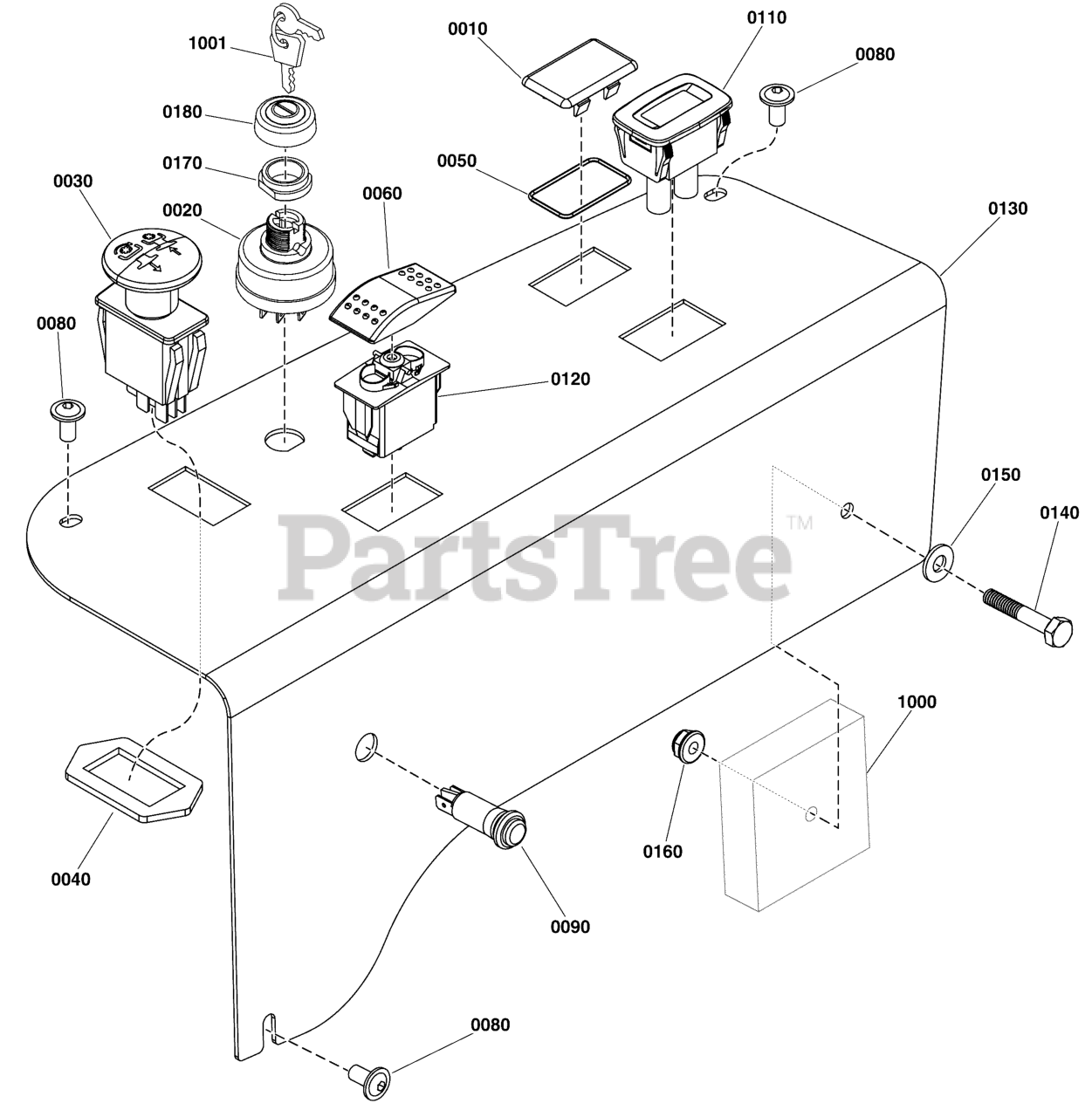

5901954 - Simplicity Citation XT 52" Zero-Turn Mower, 27hp Briggs & Stratton Instrument Control Panel - Fuel Injected Models with Electronic Throttle Control Parts Diagram

Citation XT 52" Zero-Turn Mower, 27hp Briggs & Stratton

Instrument Control Panel - Fuel Injected Models with Electronic Throttle Control Parts Diagram

  • Title

0010

Simplicity 1709188SM

PLUG, Hole, Electric Lift (Hydro models only)

$4.99

$

In Stock, only 1 left!

0

0020

Simplicity 1737853YP

SWITCH ASSEMBLY, Ignition Indak No Keys/Hdwr

$35.99

$

In Stock, Qty 20+

0

0030

Simplicity 1722887SM

SWITCH, PTO, Push/Pull

$33.99

$

In Stock, Qty 20+

0

0040

Simplicity 5022222SM

RING, SWITCH RETAINER, PTO

$4.49

$

In Stock, only 1 left!

0

0050

Simplicity 5022269SM

O-RING, 7/8" ID X 1/16" W

$3.49

$

Usually ships in 2-12 days

0

0060

Simplicity 84006404

SWITCH, Rocker

$6.49

$

In Stock, only 1 left!

0

0080

Simplicity 84002228

SCREW, Flange

$2.49

$

In Stock, Qty 18

0

0090

Simplicity 5103809YP

LIGHT, INDICATOR, PANEL, LED, RED

$29.99

$

Usually ships in 2-12 days

0

0110

HOUR METER, 2 CHANNEL

Note: (Refer to Note: *)

$

$

Not available

0120

Simplicity 84006405

BODY, Rocker Switch

$30.99

$

Usually ships in 2-12 days

0

0130

Simplicity 84006565

PLATE, Control Panel

$68.99

$

Usually ships in 2-12 days

0

0140

Simplicity 5025010X12SM

BOLT, 1/4-20 X 1-1/2", GD5

$2.99

$

Usually ships in 2-12 days

0

0150

Simplicity 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

0160

Simplicity 703463

NUT, Flange Nylock , 1/4-20

$4.49

$

In Stock, Qty 20+

0

0170

Simplicity 847144

SET, Washer/Nut

$10.99

$

Usually ships in 2-12 days

0

0180

Simplicity 847150

CAP, Switch

$8.49

$

In Stock, Qty 16

0

1000

MODULE, Throttle Control (See Electrical Group)

$

$

Not available

1001

Simplicity 1737836YP

KEYS, Ignition

$20.99

$

In Stock, only 1 left!

0
